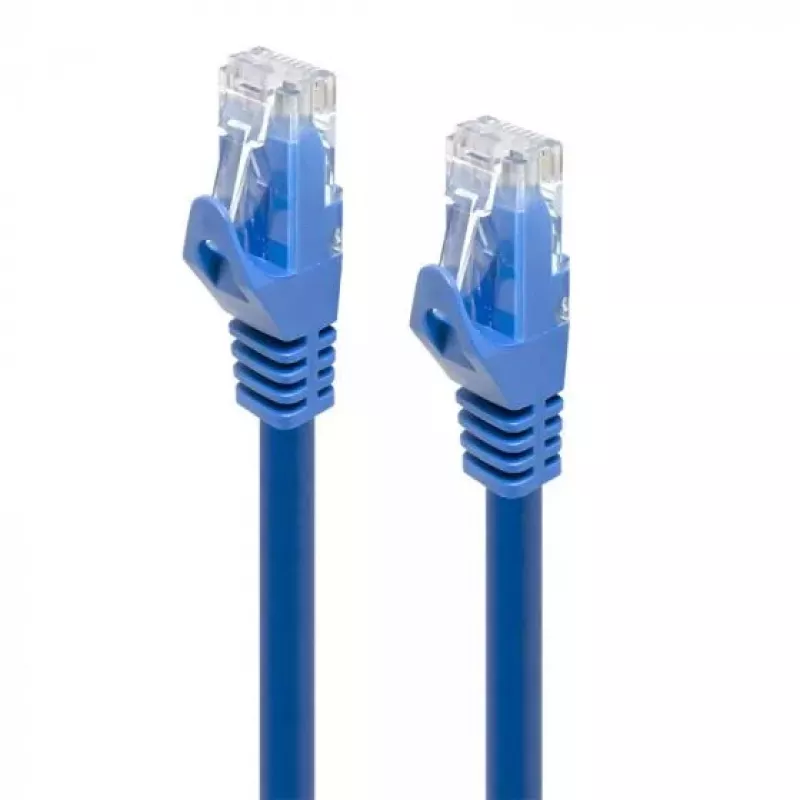

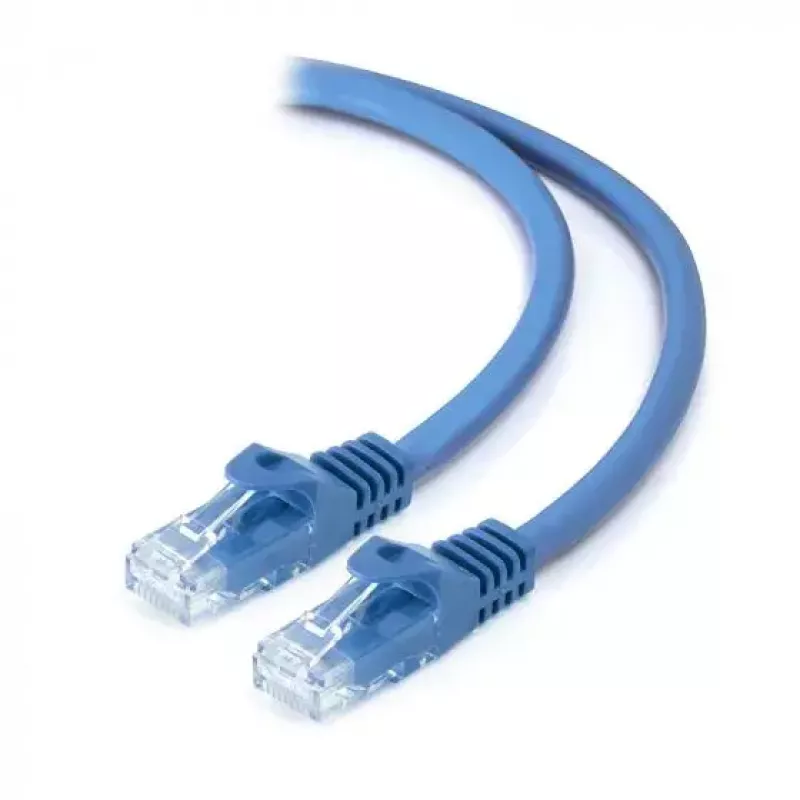

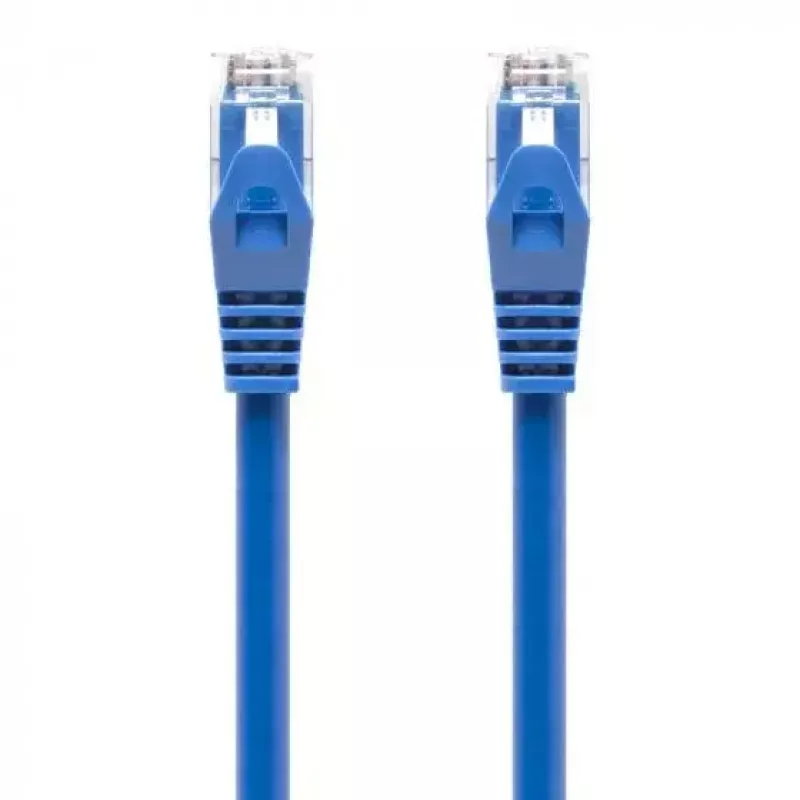

Καλώδιο δικτύου ALOGIC Μπλε CAT6 LSZH 0,3 m

The ALOGIC Blue CAT6 LSZH 0.3 m network cable is a short RJ-45 patch cable wired to the 568B standard and designed for indoor high-speed Ethernet connections. Constructed with four pairs of 24 AWG insulated copper conductors separated by a central cross, the cable reduces crosstalk and insertion loss to support multi-gigabit protocols and data rates up to 1000 Mbit/s. Gold-plated RJ-45 connectors provide reliable signal transfer while the LSZH jacket minimizes smoke and halogen emissions for safer indoor use.

Advantages

The LSZH outer jacket offers low smoke and halogen-free properties suitable for enclosed environments, while the 24 AWG twisted pairs and central separator maintain consistent impedance and lower return loss. Gold-plated RJ-45 connectors improve contact quality for clear signal transmission and the snagless boot design protects the connector latch during installation, reducing the risk of physical damage.

Suitable for (tasks / use cases)

• Connecting switches, routers and patch panels in data cabinets and network racks
• Short-distance workstation or server connections (0.3 m) where cable routing requires compact patch leads
• Indoor installations requiring low-smoke, halogen-free cabling
• Applications up to 1000 Mbit/s and environments needing reduced crosstalk

Key specifications

• Length: 0.3 m
• Standard: Cat6, wired 568B
• Conductor: 4 pairs, 24 AWG insulated copper
• Connectors: RJ-45 with gold plating
• Jacket: LSZH (Low Smoke Zero Halogen)
• Data rate: up to 1000 Mbit/s
• MPN: C6-0.3B-BLUE

How to use

Plug each RJ-45 connector into the corresponding Ethernet ports on your devices such as switches, routers or patch panels. Ensure the cable is routed without sharp bends or excessive tension to preserve conductor integrity and signal performance. The snagless boot protects the latch during insertion and removal; press the latch gently when disconnecting to avoid stressing the connector.

Recommendations

The cable is intended for indoor, short-distance patching. Avoid outdoor exposure and prolonged UV or moisture contact. For longer runs or outdoor installations, choose appropriately rated cable types and observe cabling standards for best performance.
