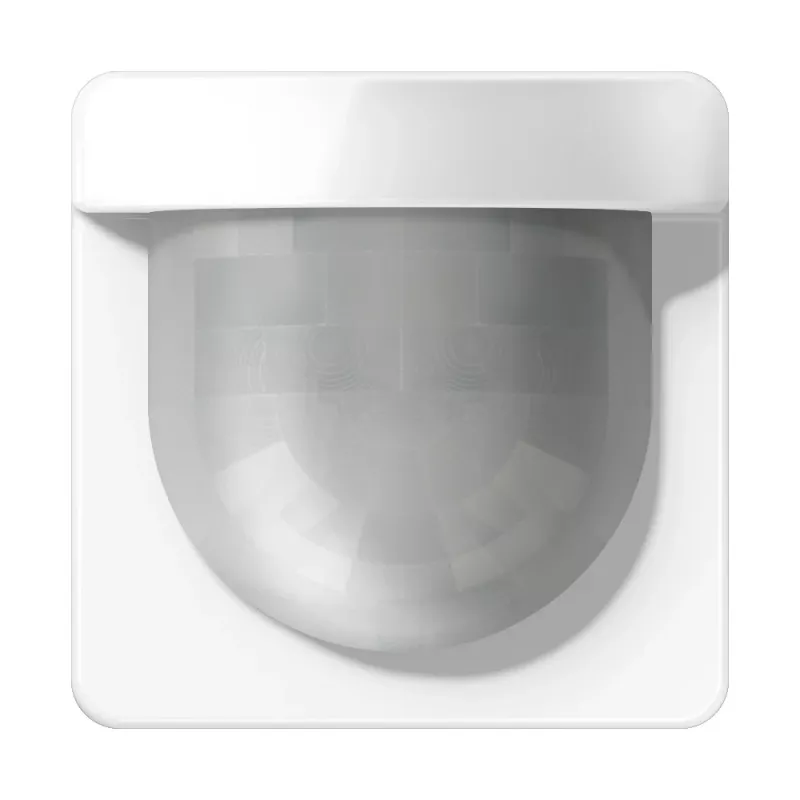

JUNG CD17280WW Αυτόματος διακόπτης 2,2 m Standard λευκό alpin

With a 180° detection angle and a range of up to 10 metres in diameter at a mounting height of 2.2 m, this automatic switch covers large areas reliably. The passive infrared sensor reacts to movement and switches lighting on automatically.

Overview

The JUNG CD17280WW automatic switch is a flush-mounted motion detector for indoor use. It is part of the JUNG CD series and comes in alpine white. The device operates at 230 V AC and can switch incandescent or halogen loads up to 2300 W, HV LED loads up to 400 W, and fluorescent loads with electronic ballast up to 1200 VA.

What stands out

• Wide 180° detection angle with a range of approximately 10 m in diameter at 2.2 m mounting height
• Adjustable switch-off delay from 10 seconds to 30 minutes
• Brightness threshold adjustable from 5 to 1000 lux, plus a daylight mode
• Low standby consumption below 0.5 W

Technical details

• Sensor type: Passive infrared (PIR)
• Recommended mounting height: 1.10 – 2.20 m
• Operating voltage: 230 V AC, 50/60 Hz
• Switching capacity: 2300 W incandescent/HV halogen, 400 W HV LED, 1200 VA fluorescent with EVG
• Adjustable time delay: approx. 10 s to 30 min
• Adjustable brightness threshold: approx. 5 to 1000 lux + daylight
• Protection type: IP20
• Housing material: thermoplastic (PC)
• Colour: alpine white
• Installation type: flush-mounted
• Ambient temperature: -5 °C to +45 °C
• Standby power consumption: < 0.5 W

Our verdict

A versatile automatic switch with wide coverage and flexible timing, ideal for hallways, staircases, and utility rooms.
