JULTEC JRS0502-8M multiswitch μονού καλωδίου 5/2/8 UB

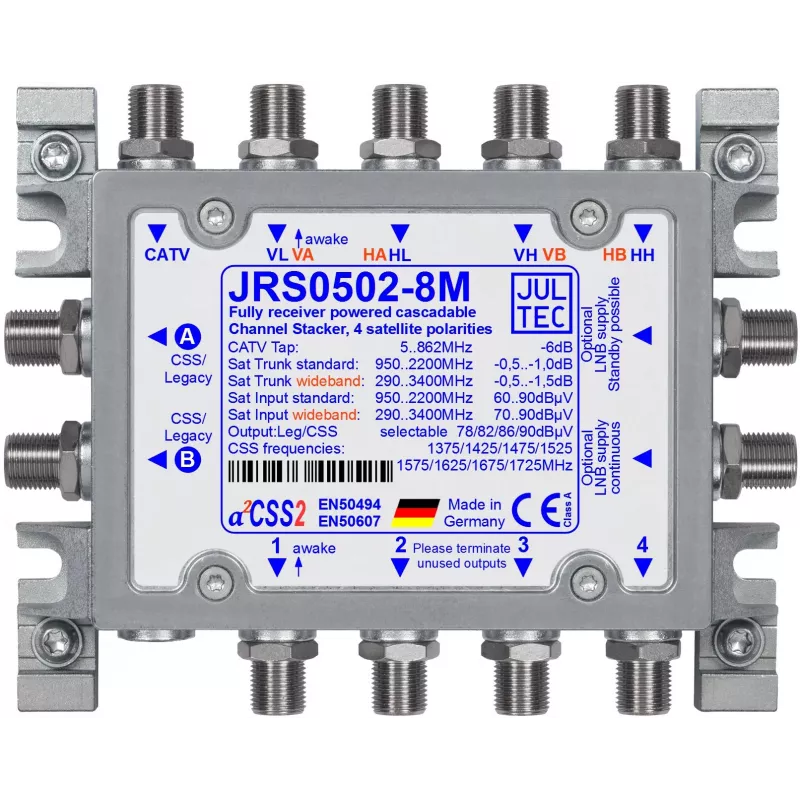

The JULTEC JRS0502-8M is a professional single cable multiswitch designed for modern satellite distribution systems. It combines 4 satellite inputs (HL, VL, HH, VH) and 1 terrestrial input into 2 Unicable outputs, each supporting 8 user bands (total 16 user bands). Compatible with both Unicable I (EN50494) and Unicable II/JESS (EN50607) standards, this multiswitch enables independent TV and radio reception for up to 16 users via a single coaxial cable. The die-cast zinc housing ensures durability and reliable performance in indoor environments.

Advantages

Supports up to 16 users with full band stacking; compatible with Quattro, Quad, and Wideband LNBs; easy programming via USB (optional programmer required); passive terrestrial path for antenna signals; compact and robust design.

Suitable for

• Single-cable distribution in apartment buildings, hotels, and multi-dwelling units
• Upgrading existing satellite systems to Unicable II (JESS) for higher channel capacity
• Integration with EN50494 and EN50607 compliant receivers

Key specifications

• Number of Satellite Inputs: 4 (HL, VL, HH, VH)
• Number of Terrestrial Inputs: 1
• Number of Unicable Outputs: 2
• User Bands per Output: 8
• Total User Bands: 16
• Satellite Input Frequency Range: 950 - 2150 MHz
• Terrestrial Input Frequency Range: 5 - 862 MHz
• Return Path Frequency Range: 5 - 65 MHz
• Max. SAT Output Level (EN50607): 90 dBµV
• Control Protocol: DiSEqC 1.x, SCR (EN50494), JESS (EN50607)
• LNB Compatibility: Quattro, Quad, Wideband (programmable)
• Power Supply: External 19V DC, 2A (not included)
• Programming Interface: USB (via optional JPS0301 programmer)
• Housing Material: Die-cast zinc
• Operating Temperature: -20 to +50 °C

Recommendations

For optimal performance, use a regulated 19V DC power supply with at least 2A output. Programming the multiswitch for specific LNB types and user band allocation is recommended via the JPS0301 USB programmer and JULTEC software.
