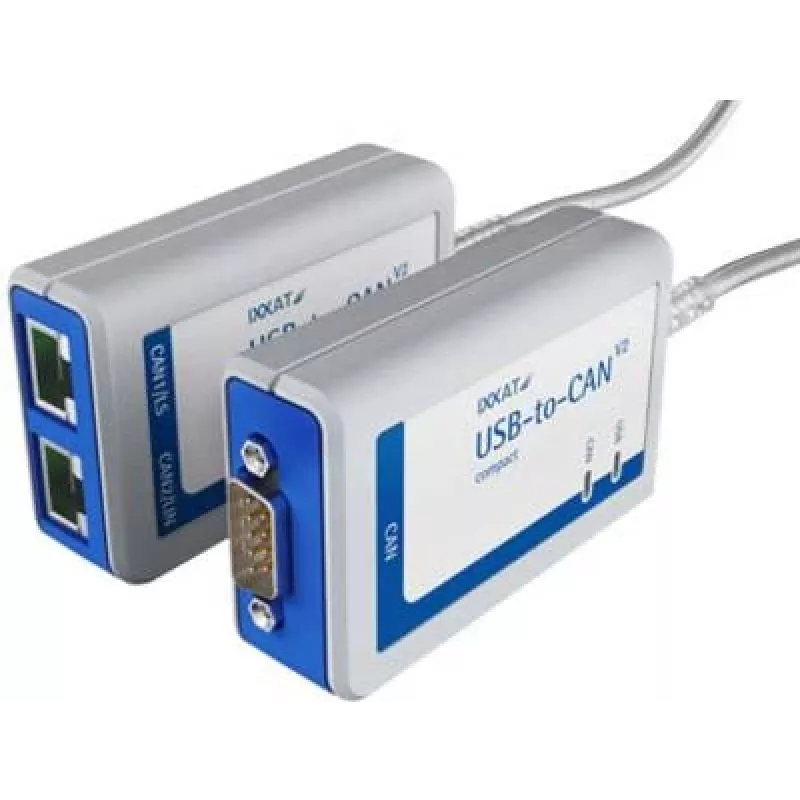

Ixxat USB-to-CAN V2 compact Διεπαφή 1.01.0281.11001

Single-channel USB-to-CAN interface with USB 2.0 High-Speed connectivity and data rates up to 1 Mbit/s, powered directly from the USB port.

Overview

The Ixxat USB-to-CAN V2 compact is a bus interface module that connects a PC to a CAN network via USB. It supports CAN 2.0A and 2.0B protocols, handles 11-bit and 29-bit identifiers, and delivers low-latency, high-throughput communication for industrial and automotive applications.

What stands out

• USB 2.0 High-Speed (480 Mbit/s) ensures fast data transfer.
• Galvanic isolation is not provided, keeping the design compact and cost-effective.
• D-Sub 9-pin male CAN connector and USB-B connector for reliable connections.
• LED indicators show CAN and USB status at a glance.
• Operates from -20 °C to +70 °C, suitable for demanding environments.

Technical details

• Interface type: USB to CAN
• CAN channels: 1
• CAN protocol: CAN 2.0A (11-bit ID), CAN 2.0B (29-bit ID)
• CAN FD support: No
• CAN bit rate: up to 1 Mbit/s
• Galvanic isolation: No
• USB standard: USB 2.0 High-Speed (480 Mbit/s)
• USB connector: USB-B
• CAN connector: D-Sub 9-pin (male)
• Power supply: USB powered (5 V DC)
• Operating temperature: -20 °C to +70 °C
• Supported OS: Windows 10, 8, 7 (32/64-bit), Linux, macOS
• API support: VCI (Windows), ECI (Linux), C-API, .NET API
• LED indicators: Yes (CAN status, USB status)
• Housing material: Plastic

Our verdict

A reliable, straightforward USB-to-CAN adapter for developers and engineers who need a simple, bus-powered interface without isolation.
