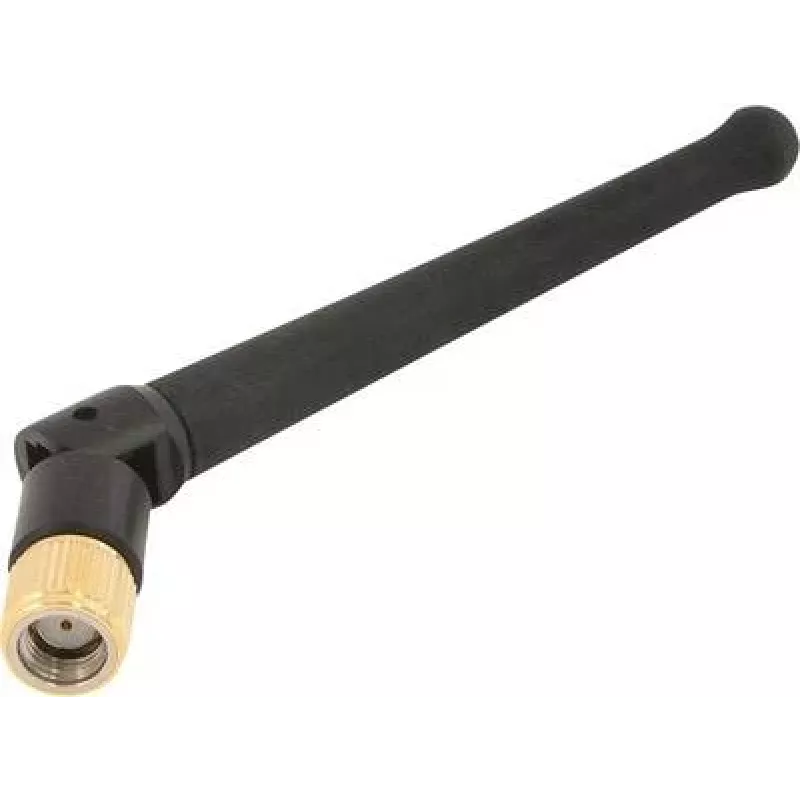

Ixxat Εξωτερική κεραία 1.04.0085.00001

For engineers integrating Ixxat wireless CAN, LIN, or WLAN interfaces in industrial environments, the Ixxat External Antenna 1.04.0085.00001 provides a reliable 2.4 GHz connection with an omnidirectional pattern and magnetic base for flexible placement.

Key specifications

• Antenna type: External, omnidirectional
• Frequency band: 2.4 GHz ISM (2400–2500 MHz)
• Gain: 2 dBi
• Connector: SMA male
• Cable: RG-174, 1.5 m
• Impedance: 50 Ohm, VSWR < 2.0
• Polarization: Vertical
• Mounting: Magnetic base
• Operating temperature: -20°C to +65°C
• Colour: Black

Why choose it

This antenna is engineered for Ixxat wireless interfaces, ensuring compatibility and stable performance in demanding industrial settings. The magnetic base allows quick attachment to metal surfaces, while the 1.5 m cable offers installation flexibility.

Ideal use cases

• Wireless CAN/LIN communication in factory automation
• WLAN connectivity for mobile industrial equipment
• Retrofitting existing Ixxat devices with external antenna

Good to know

The antenna operates across the full 2.4 GHz ISM band and is suitable for both indoor and outdoor use within the specified temperature range.
