InLine βάση τοίχου για οθόνη 94-178cm 37-70 ίντσες μέγ. 50kg

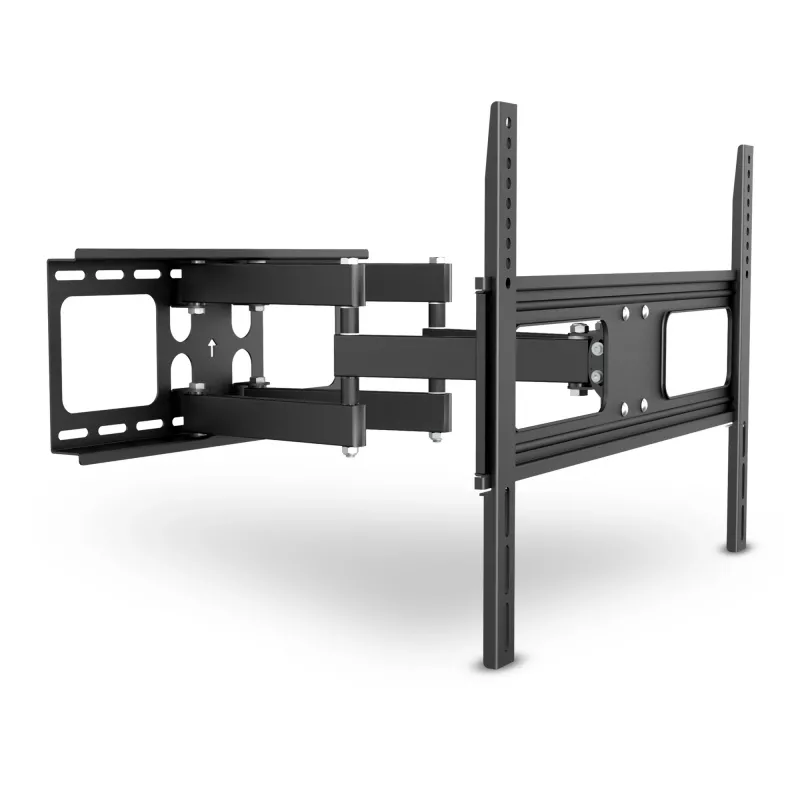

The InLine Wall Bracket for Display 94-178cm 37-70" max. 50kg is a tilting and swivelling mount designed for single flat-panel screens with VESA patterns from 200 x 200 mm up to 600 x 400 mm. It supports displays within the 37–70 inch range and a maximum load of 50 kg, providing adjustable viewing positions with a minimum distance to the wall of 6.4 cm and a maximum extension of 51 cm. The bracket is finished in black and intended for residential and professional environments where a secure, flexible wall mounting is required.

Advantages

The mount offers a wide swivel range of -60° to 60° and a tilt range of -10° to 20°, allowing precise alignment of the screen to reduce glare and improve sight lines. Its compatible VESA range covers common panel standards up to 600 x 400 mm, enabling use with many large-format displays. The construction supports up to 50 kg, providing stability for heavier screens while the adjustable distance from the wall supports both low-profile and more extended installations. The black finish provides a neutral appearance that integrates with most interiors.

Suitable for

• Mounting a single LED/LCD/PLASMA screen between 37 and 70 inches
• Home living rooms, bedrooms, and home office setups
• Retail displays, meeting rooms, and public waiting areas
• Installations requiring adjustable tilt and swivel for optimal viewing

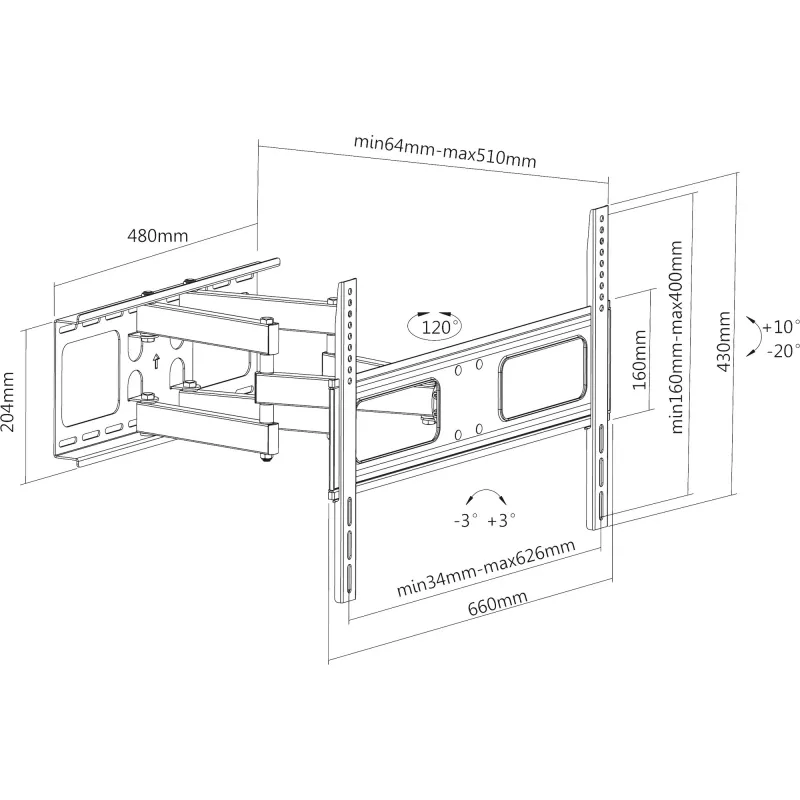

Key specifications

• Screen size compatibility: 37–70 inches
• VESA support: 200 x 200 mm to 600 x 400 mm
• Maximum load capacity: 50 kg
• Tilt range: -10° to 20°
• Swivel range: -60° to 60°
• Minimum distance to wall: 6.4 cm; Maximum extension: 51 cm
• Colour: Black
• Number of displays supported: 1

How to use

Secure the bracket to a suitable load-bearing wall following the supplied drilling template and the manufacturer’s torque recommendations for the mounting hardware provided with the product. Attach the display to the bracket using the matching VESA holes and appropriate screws, ensuring the total weight does not exceed 50 kg. Adjust the tilt and swivel to the desired angle and tighten the adjustment points to lock the position. Check that the display is level and firmly fixed before leaving the installation unattended.

Recommendations

For safe installation, confirm wall material and stud positions before drilling, use appropriate anchors for masonry or drywall, and if in doubt consult a professional installer. Avoid exceeding the specified load capacity and periodically verify that mounting bolts and adjustment points remain secure.
