InLine βάση γραφείου, για 2x TFT/LCD/LED έως 68 cm (27 ίντσες), μέγ. 2x8 kg

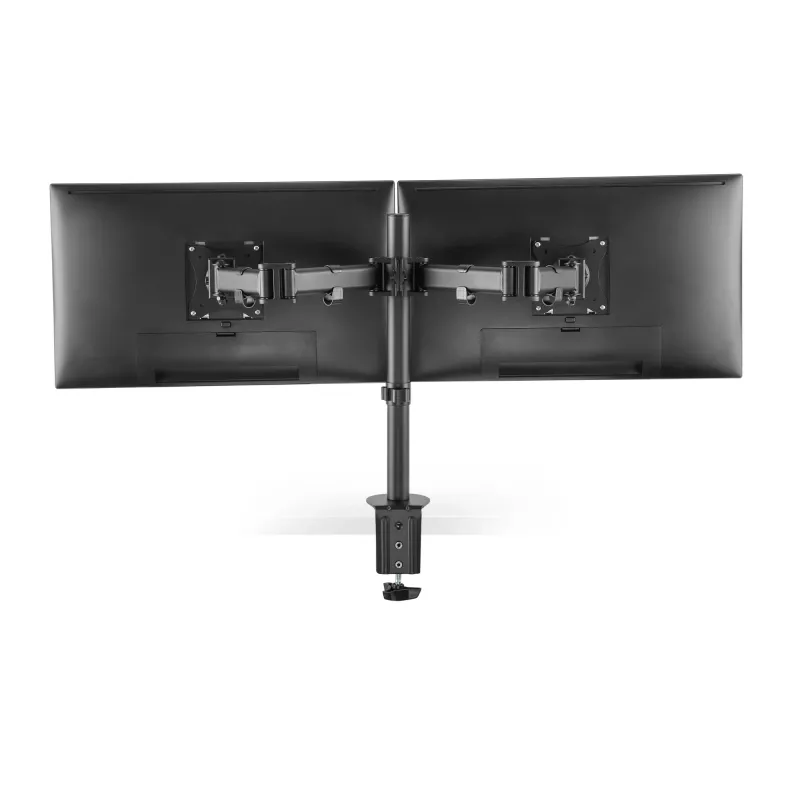

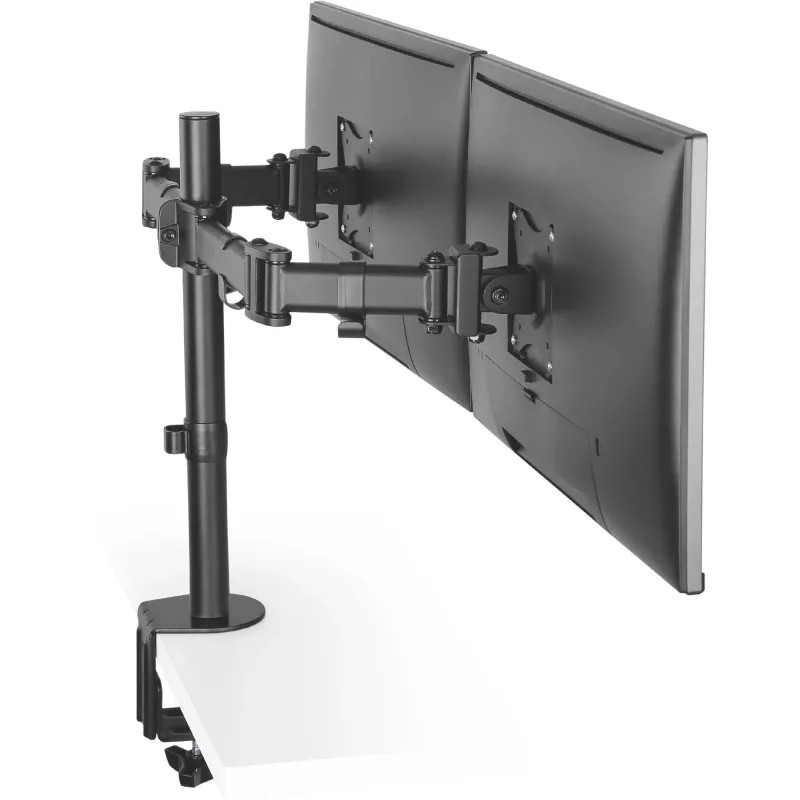

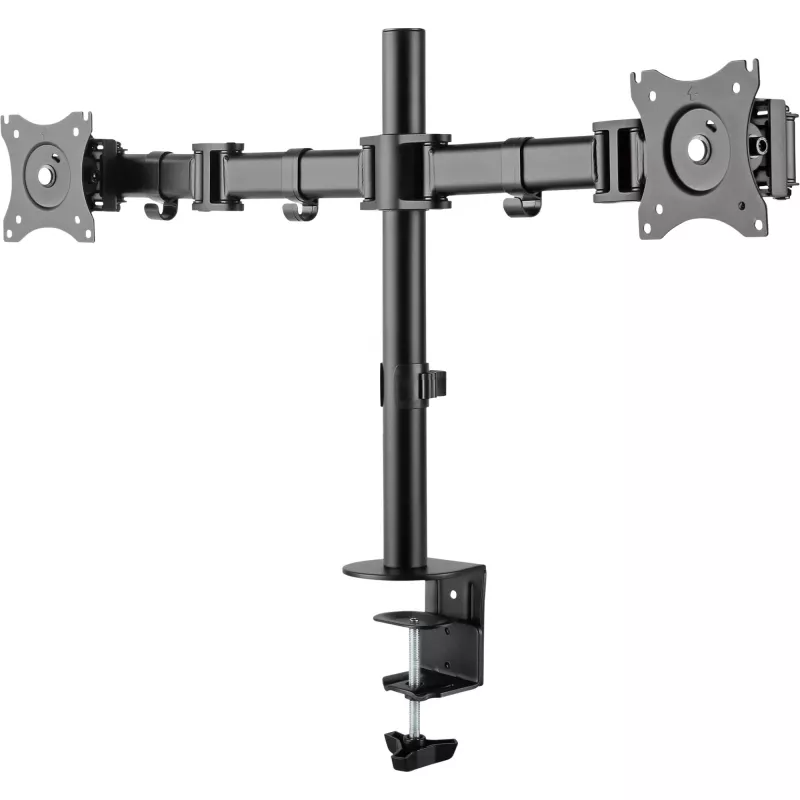

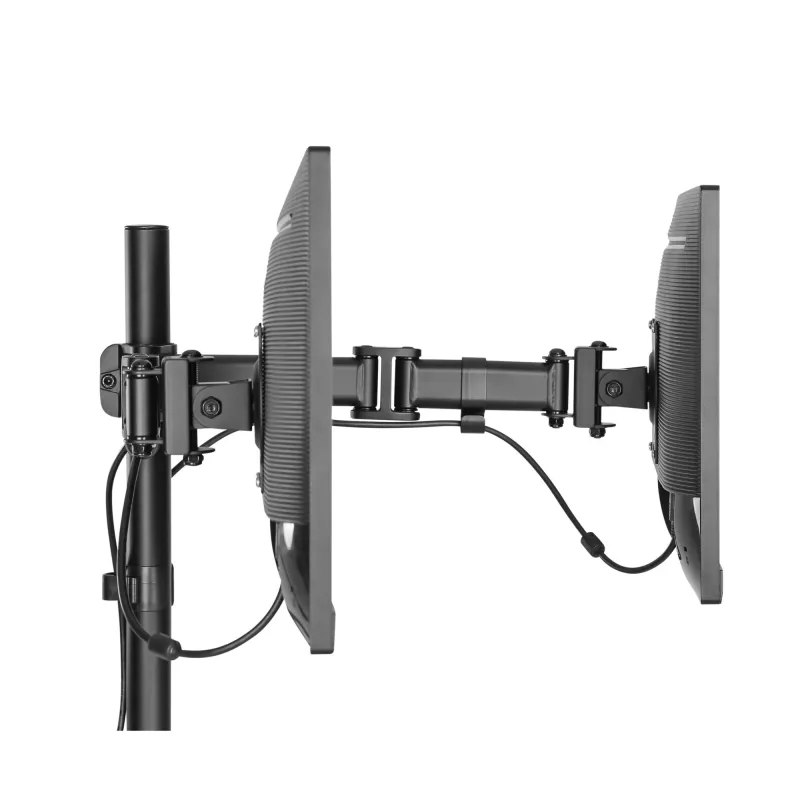

InLine Desktop bracket 23104C is a dual-monitor table holder designed for two TFT/LCD/LED flat-panel monitors with screen sizes from 13" to 27" (33–68 cm). It supports VESA 75x75 and 100x100 mm mounting patterns, offers height adjustment and cable management, and is finished in black. The bracket provides a clamp mounting option for attachment to the edge of the desk or through the desk and includes screws for monitor installation.

Advantages

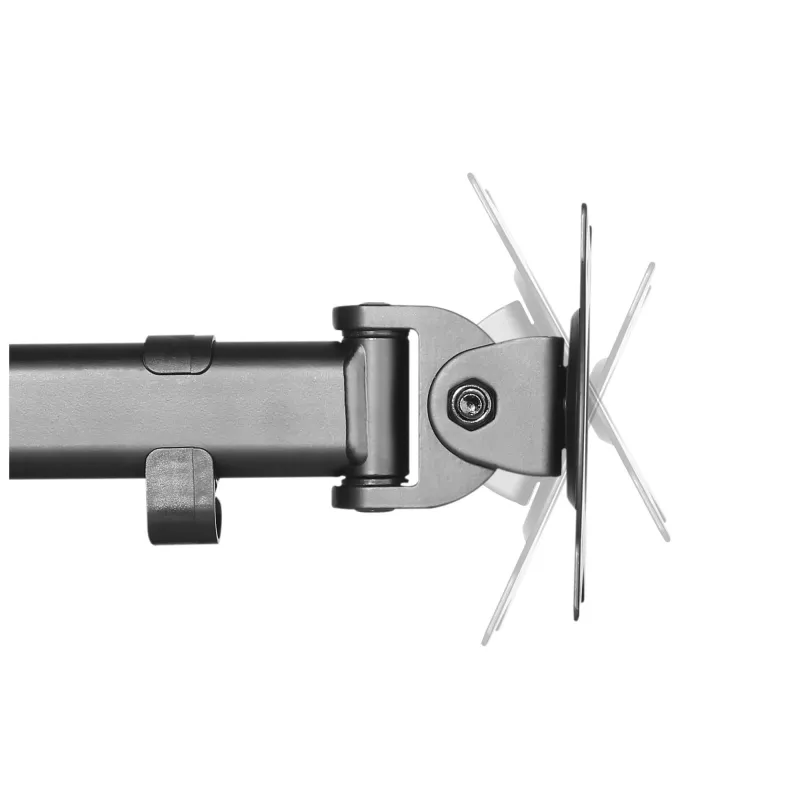

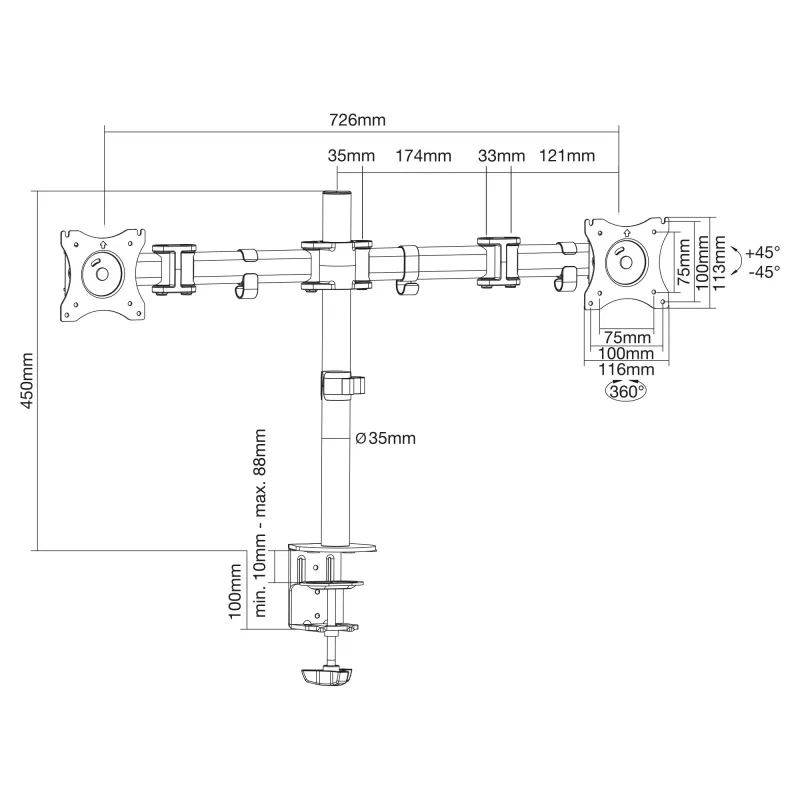

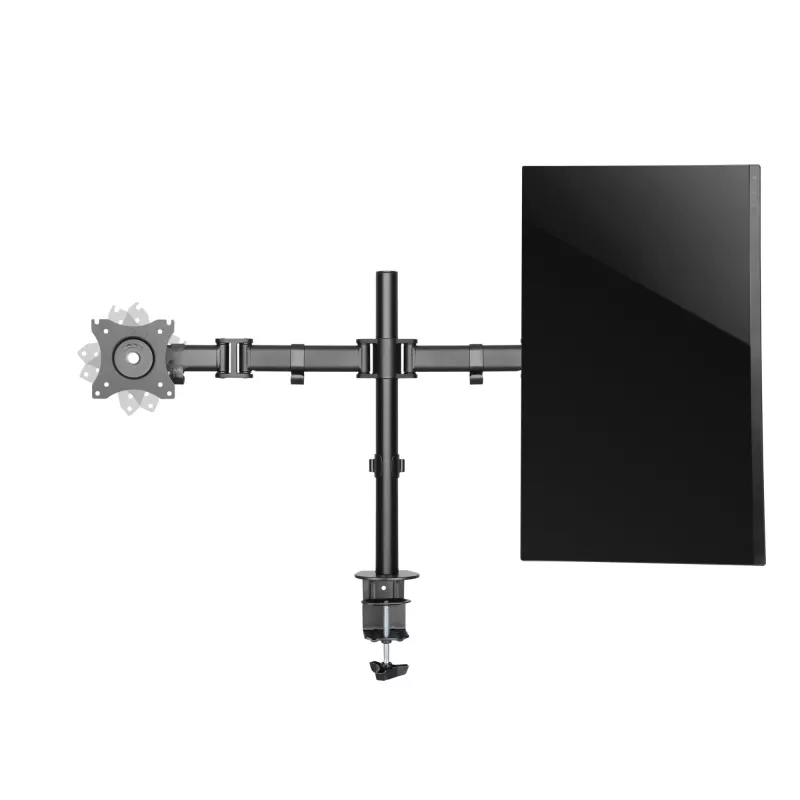

The bracket accommodates two monitors with a maximum load of up to 8 kg per arm (16 kg total). Each arm allows +/-30° tilt and 360° rotation for portrait or landscape orientation, and the dual-joint arms permit flexible positioning and alignment. Installation hardware is included and the clamp fits desk tops from 10 to 88 mm thickness.

Suitable for

Key specifications

How to use

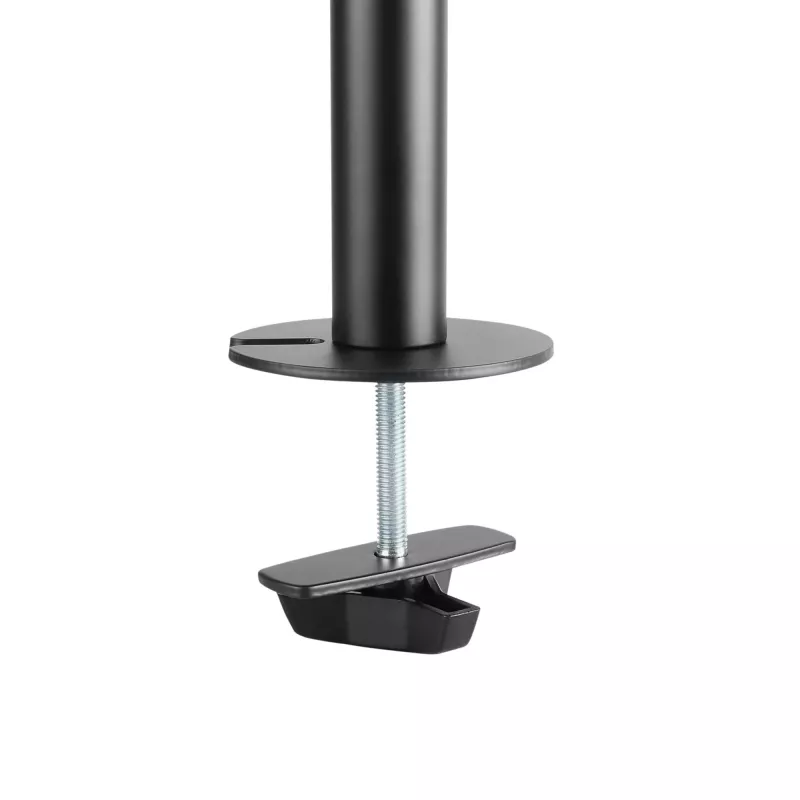

Attach the bracket to the desk using the provided screw clamp or the through-desk option according to the desk thickness. Fasten both monitors to the VESA plates with the included screws, adjust the height to the preferred level and use the dual-joint arms to set tilt and rotation for the desired viewing angle. Use the integrated cable management to route cables neatly along the arms.

Recommendations

Ensure each monitor does not exceed 8 kg and that VESA mounting holes match 75x75 or 100x100 mm. Tighten mounting screws securely and check the desk thickness before installation to select the correct clamp configuration. Periodically verify fastenings for safety.
