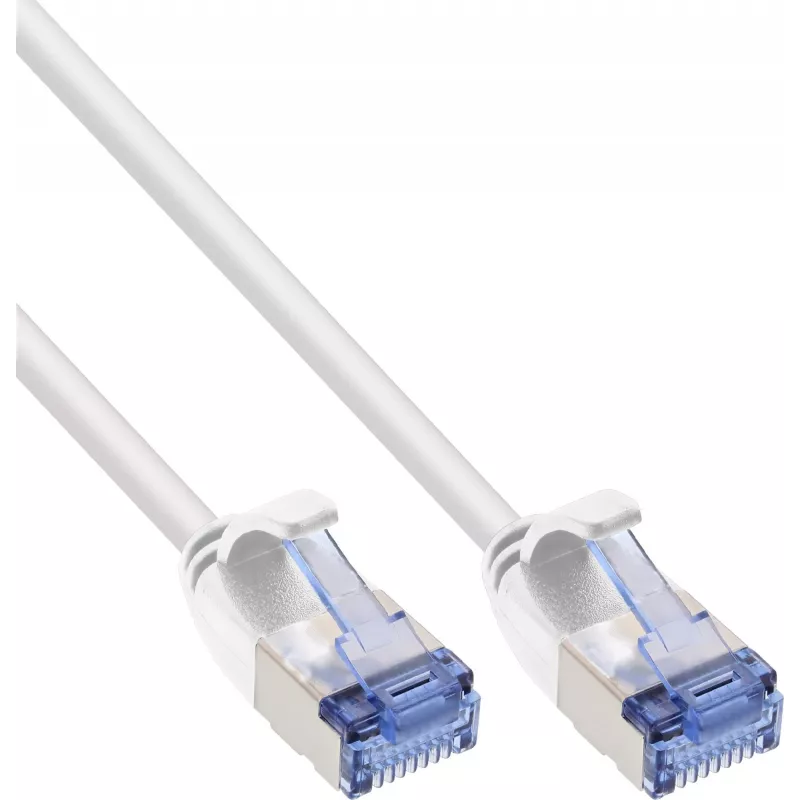

InLine® Slim Καλώδιο Patch U/FTP Cat.6A, Λευκό, 5m

For installations where space is at a premium yet 10-Gigabit performance cannot be compromised, this InLine® slim patch cable delivers Cat.6A bandwidth in a remarkably reduced-diameter jacket. The U/FTP (PiMf) construction pairs individually foil-shielded twisted pairs with an overall unshielded design, effectively suppressing alien crosstalk while keeping the cable flexible and easy to route. At 5 metres, it bridges patch panels, switches, and endpoints in high-density racks without the bulk of standard Cat.6A cables.

Highlights

• Cat.6A performance with 500 MHz bandwidth and 10GBASE-T support
• Slim outer diameter for improved airflow and easier cable management
• U/FTP (PiMf) shielding: each pair individually foil-wrapped to reduce crosstalk
• Gold-plated RJ45 connectors (50µ) for reliable, corrosion-resistant contacts
• LSZH jacket: low smoke, zero halogen, flame retardant for safety
• Stranded copper conductors (AWG 26/7) for flexibility and durability

In daily use

This cable is ideal for connecting servers, switches, and patch panels in data centres, server rooms, and structured cabling systems. The slim profile allows higher port density and better airflow in crowded racks, while the stranded conductors withstand frequent re-patching. The white LSZH jacket is suitable for public buildings, offices, and anywhere fire safety regulations require halogen-free materials. The TIA/EIA 568B wiring ensures compatibility with standard Ethernet equipment.

Full specifications

• Brand: InLine®
• Model: 71905W
• MPN: 71905W
• EAN: 4043718351916
• Cable type: Ethernet patch cable
• Cable standard: Cat.6A
• Cable shielding: U/FTP (PiMf)
• Cable length: 5 m
• Colour: White
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold (50µ)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor material: Copper
• Conductor gauge: AWG 26/7
• Cable construction: Stranded
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Outer diameter: Slim
• Wiring standard: TIA/EIA 568B
• Halogen-free: Yes
• Flame retardant: Yes
• Application: LAN, Network, Ethernet
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Final note

A professional-grade slim Cat.6A patch cable that combines high-speed performance, space-saving design, and safety compliance for modern network infrastructures.
