InLine Προσαρμογέας μονάδας δίσκου IDE 2,5 ιντσών σε 2x Compact Flash – χρήση καρτών CF ως σκληρών δίσκων

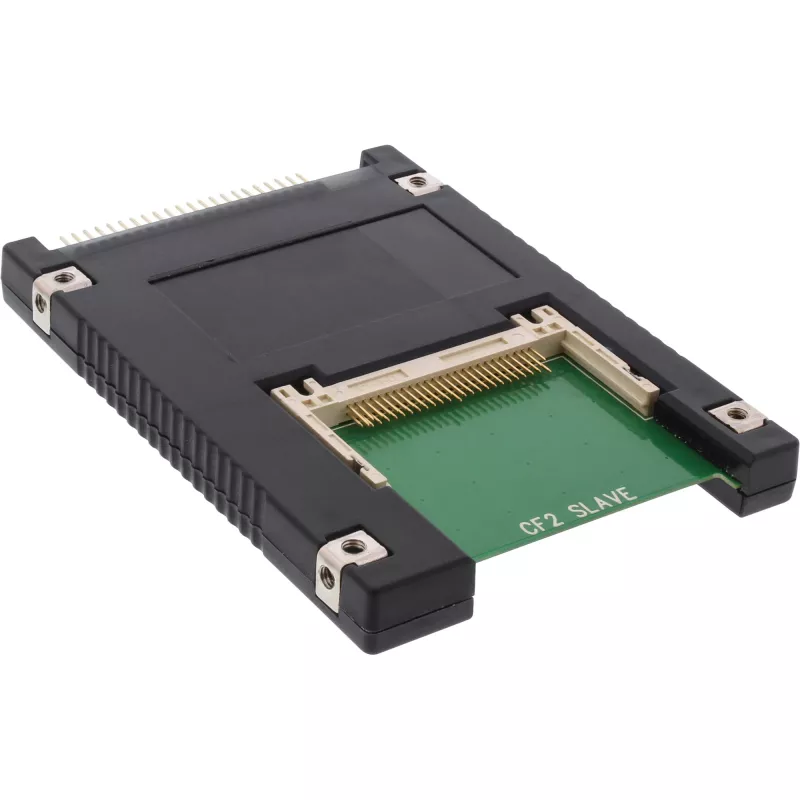

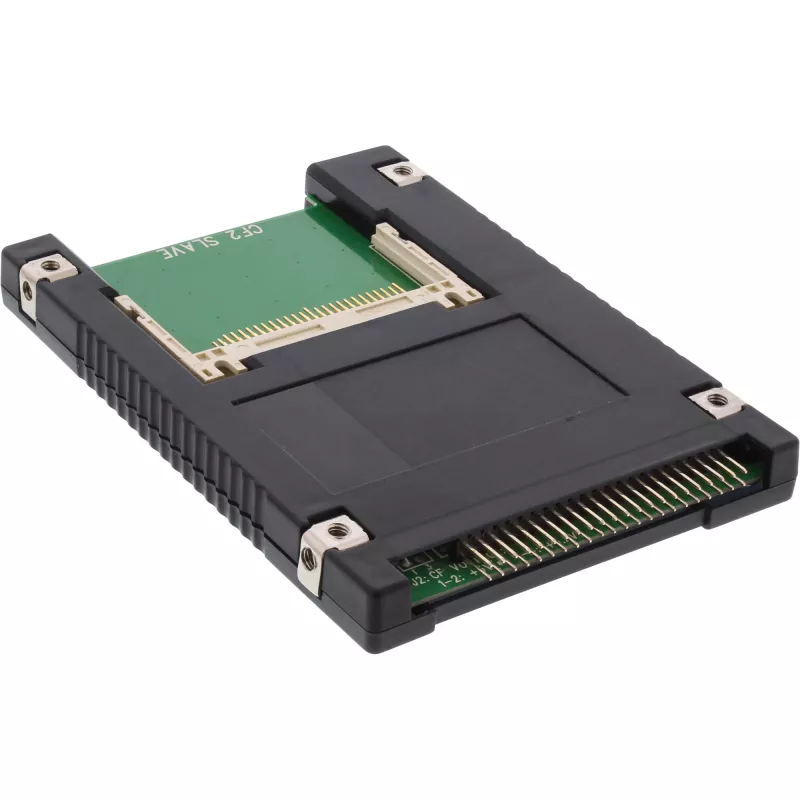

The InLine IDE 2.5" Drive to 2x Compact Flash Adapter (model 76621I) is an internal IDE device that lets you use up to two Compact Flash cards (type I/II) or IBM Microdrive cards as 2.5" hard disk drives. The adapter presents CF cards to the system as standard IDE drives, allowing them to function as additional storage or as bootable drives for operating systems.

Advantages

This internal adapter supports two CF cards simultaneously and is compatible with standard IDE interfaces, enabling simple replacement or expansion of 2.5" drives. It is suitable for use with a variety of operating systems including Windows 2000/XP/Vista, DOS, Mac and Linux. The unit is available in Beige, Black and Green and provides a compact solution for low-power, solid-state storage using widely available Compact Flash media.

Suitable for

• Replacing or upgrading 2.5" HDDs in laptops or embedded systems
• Using CF cards as bootable drives for legacy systems
• Low-power or fanless systems requiring solid-state storage

Key specifications

• Model: 76621I
• Interface: IDE (internal)
• Supported media: 2 × Compact Flash (Type I/II), IBM Microdrive
• Form factor compatibility: 2.5" drive bay
• Colors: Beige, Black, Green
• Brand: InLine
• EAN: 4043718150120

How to use

Install the adapter into a 2.5" internal drive bay and connect it to the motherboard using a standard IDE cable and power connector. Insert up to two Compact Flash cards into the adapter's CF slots, ensuring correct orientation. Configure the BIOS or operating system to detect the new IDE devices; you may need to set master/slave jumpers or BIOS drive settings depending on your system. Format the CF cards in the operating system if required, then install or copy data as needed.

Recommendations

For reliable operation, use high-quality Compact Flash cards from reputable manufacturers and verify card compatibility with your motherboard and BIOS. Avoid removing CF cards while power is applied. When using the adapter as a boot drive, confirm BIOS boot order and test the system after installation.
