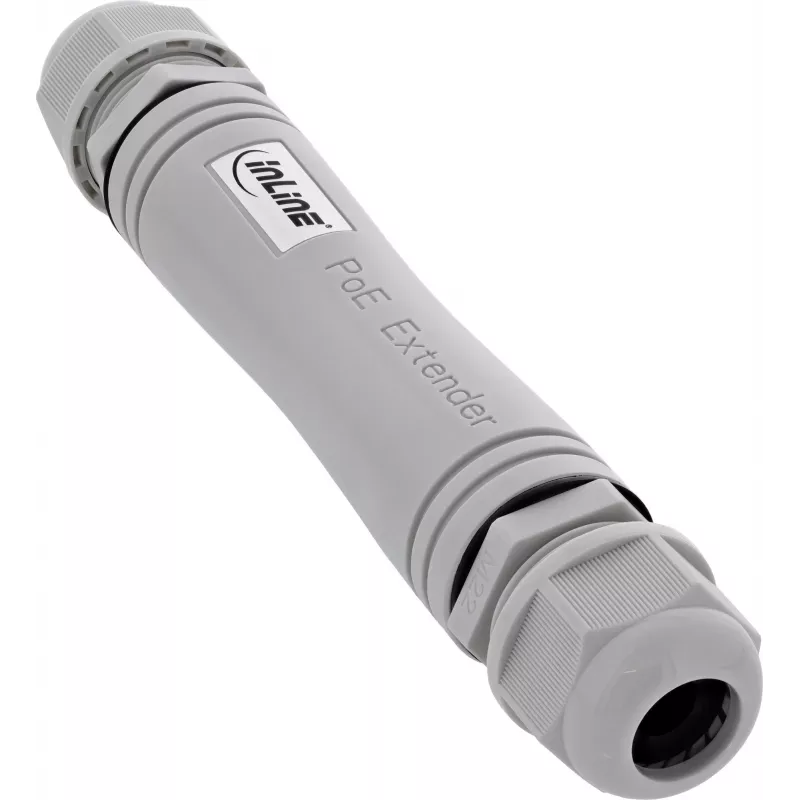

InLine® PoE+ Extender, IP67 Outdoor, 1 Gb/s, 30 W, αλυσιδωτής σύνδεσης

Extend your Power over Ethernet network beyond the standard 100-metre limit with this rugged, cascadable PoE+ extender. Supporting Gigabit speeds and 30 W of power delivery, it’s built to thrive in harsh outdoor environments thanks to its IP67-rated, dust-tight and waterproof metal housing.

Overview

The InLine® PoE+ Extender is a plug-and-play solution that regenerates both data and power, allowing you to connect PoE-powered devices such as IP cameras, access points, and VoIP phones at distances up to 500 metres when cascading up to four units. It requires no external power supply, drawing its operating power directly from the PoE input, which simplifies installation and reduces cabling costs.

What stands out

• Gigabit Ethernet (10/100/1000 Mbps) for high-bandwidth applications
• IEEE 802.3af/at compliant, delivering up to 30 W to connected devices
• IP67-rated weatherproof housing for outdoor use in extreme conditions
• Cascadable up to 4 units for a total extension of 500 m
• Operating temperature range of -40°C to 75°C for reliable performance in any climate
• Wall-mountable design with LED indicators for power and PoE status

Technical details

• Data transfer rate: 10/100/1000 Mbps (Gigabit Ethernet)
• PoE standard: IEEE 802.3af/at (PoE/PoE+)
• Max PoE output power: 30 W
• Input: 1x RJ45 (PoE/Data)
• Output: 1x RJ45 (PoE/Data)
• Max extension distance per unit: 100 m
• Max total extension distance (cascaded): 500 m with 4 units
• IP rating: IP67 (dust-tight, waterproof)
• Operating temperature: -40°C to 75°C
• Housing material: Metal (aluminium)
• Mounting: Wall mountable
• Power source: PoE/PoE+ input (no external power required)
• LED indicators: Power, PoE status
• Plug & play: Yes
• Power consumption (extender): < 2 W
• Product colour: Silver

Our verdict

For outdoor PoE network extensions, this InLine® extender delivers exceptional value. Its rugged IP67 construction, Gigabit throughput, and cascading capability make it a versatile choice for surveillance, industrial, and remote installations where reliability is paramount.
