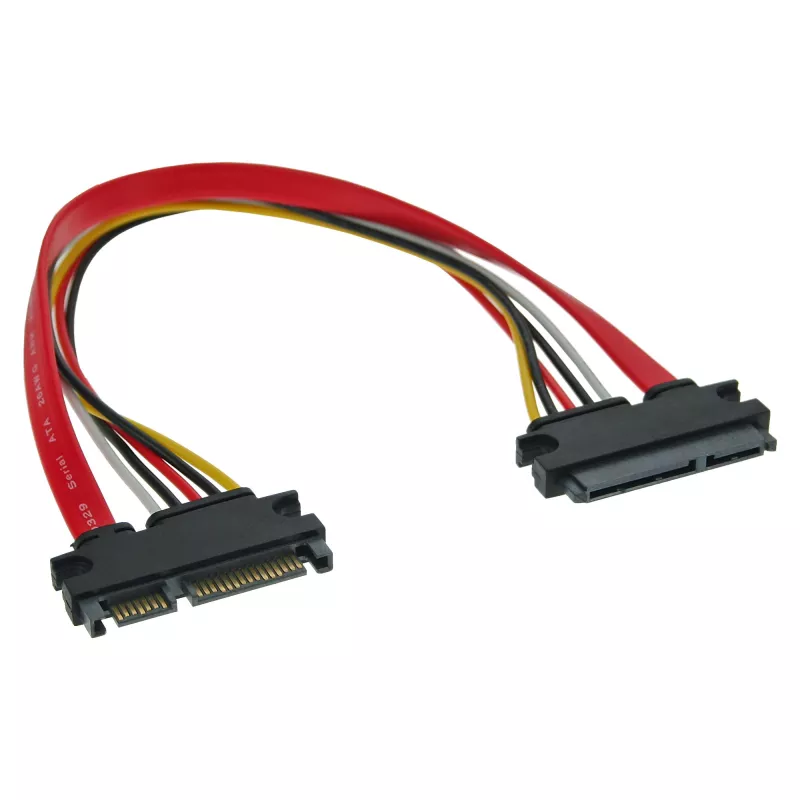

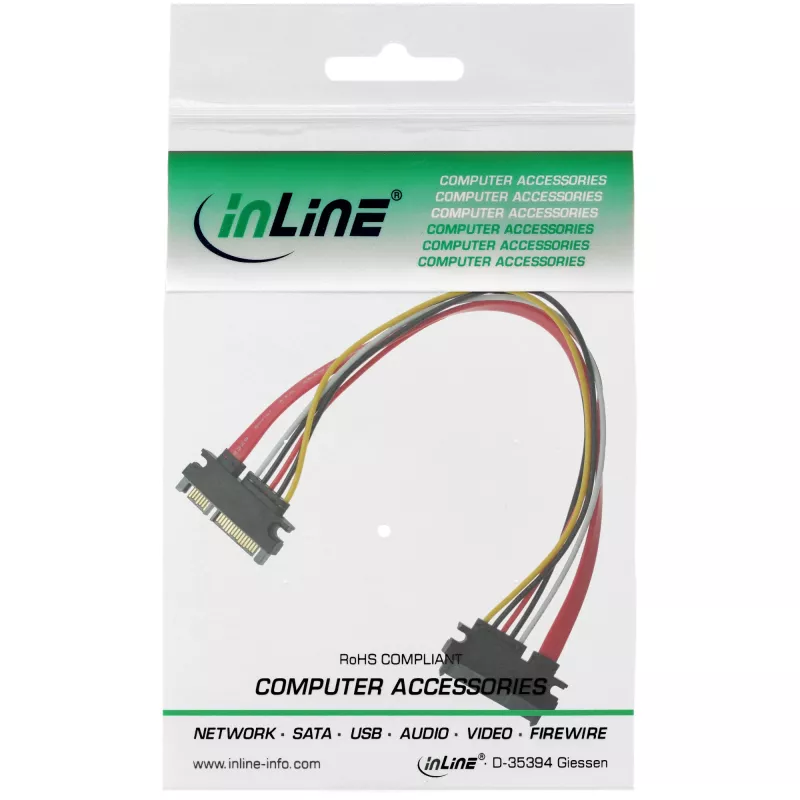

InLine Καλώδιο SATA Data + Power SATA 6Gb/s αρσενικό / θηλυκό 0.50m

The InLine SATA Data + Power Cable 29652B is a combined SATA III data and power extension designed to connect and extend internal storage devices. Measuring 0.50 m, it integrates a SATA data conductor with an integrated power line in a single assembly, providing a compact solution for routing both signals and supply to hard drives and solid‑state drives. The cable supports SATA transfer rates up to 6 Gb/s and uses male and female SATA connectors for flexible in‑system extension and rearrangement.

Advantages

This single cable reduces cable clutter by combining data and power transmission, making internal cable management cleaner and simpler. Supporting SATA III speeds up to 6 Gb/s ensures compatibility with current generation HDDs and SSDs for reliable performance. The male/female connector arrangement allows easy extension of existing cables or direct connection to drives without additional adapters. The 0.50 m length offers a balance between reach and tidy routing inside typical desktop or rack chassis.

Suitable for

• Extending an existing internal SATA data and power connection inside desktop PCs
• Connecting 2.5" and 3.5" hard drives and SATA SSDs when original cables are too short
• Use in systems where neat cable routing is required, such as small form factor builds
• Replacing or supplementing SATA connections in storage enclosures and server bays

Key specifications

• Cable type: SATA III (combined data + power)
• Supported transfer rate: up to 6 Gb/s
• Connector configuration: male to female SATA connectors
• Cable length: 0.50 m
• Colour: multicolour

How to use

Power off and unplug the system before installing the cable. Connect the male end of the InLine SATA Data + Power Cable to the host cable or motherboard SATA port and attach the female end to the SATA device's corresponding data and power interface. Ensure connectors are fully seated and oriented correctly to avoid misalignment. After routing the cable to avoid obstructing airflow or moving components, power on the system and verify that the drive is detected in BIOS/UEFI or the operating system.

Recommendations

For optimal performance, use this cable in systems that require an extension of both SATA data and power lines and avoid sharp bends or excessive tension. Keep the cable away from high‑temperature components and ensure connections are secure before powering the system.
