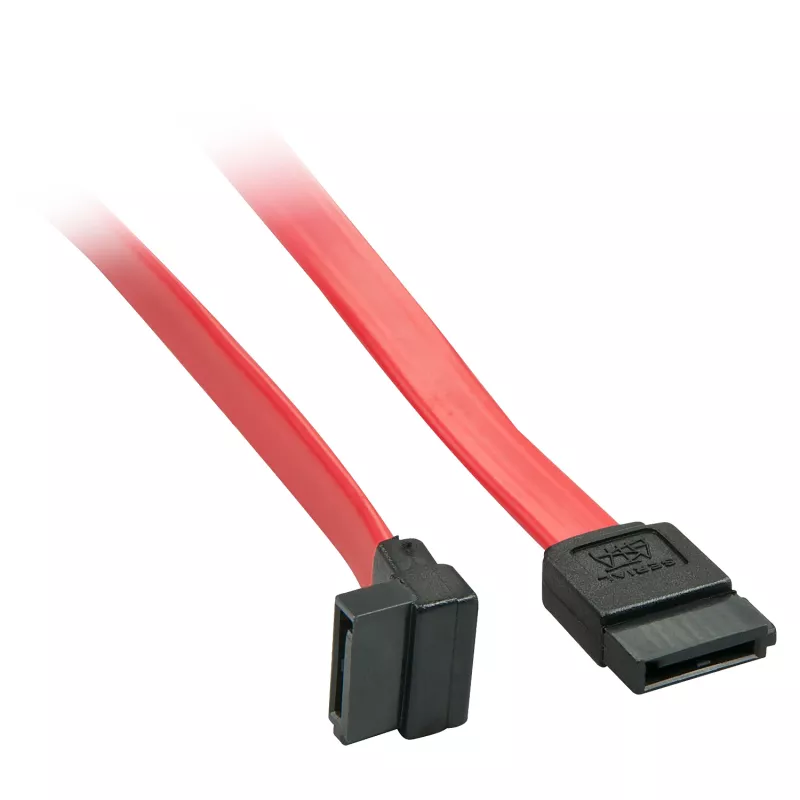

Lindy 0,7 m εσωτερικό καλώδιο SATA-III, 90°

The Lindy Internal SATA III cable 0.7 m with a 90° connector provides a reliable internal connection between a motherboard and SATA storage devices such as HDDs, SSDs or optical drives. Constructed with shielded twin-ax conductors and multiple ground connections, the cable supports SATA III and is backward compatible with SATA II and SATA I. The cable is red, has an operating and storage temperature range of approximately -20 to 65°C, and comes with a 10 year warranty.

Advantages

This Lindy SATA cable uses high-quality materials and shielded twin-ax conductors to ensure stable data transfer and reduced interference. The right-angled (90°) connector simplifies installation in compact cases or tight drive bays. Backward compatibility with SATA I/II allows use with older hardware while supporting SATA III speeds for modern drives.

Suitable for

• Connecting internal HDDs, SSDs and optical drives to a motherboard
• Installations where a right-angled connector is needed to save space
• Desktop PCs, workstations and servers requiring SATA III connections

Key specifications

• Cable length: 0.7 m
• Connector 1: SATA 7-pin (right-angled)
• Connector 2: SATA 7-pin
• Compatibility: SATA III, backward compatible with SATA II and SATA I
• Operating temperature: approx. -20 to 65°C
• Storage temperature: approx. -20 to 65°C
• Colour: Red
• Warranty: 10 years

How to use

Power off the system and disconnect from mains before installation. Connect the right-angled SATA 7-pin connector to the drive’s SATA data port and the straight or matching SATA 7-pin connector to the motherboard’s SATA data port. Ensure connectors are fully seated and route the cable to avoid sharp bends or pinching. Reconnect power and boot the system; the drive should be recognised by the BIOS/UEFI and operating system.

Recommendations

For optimal performance, use the cable with SATA III-capable drives and ports. Avoid excessive bending near the connectors and keep the cable clear of fans or moving parts. Replace the cable if the shielding or connectors show visible damage.
