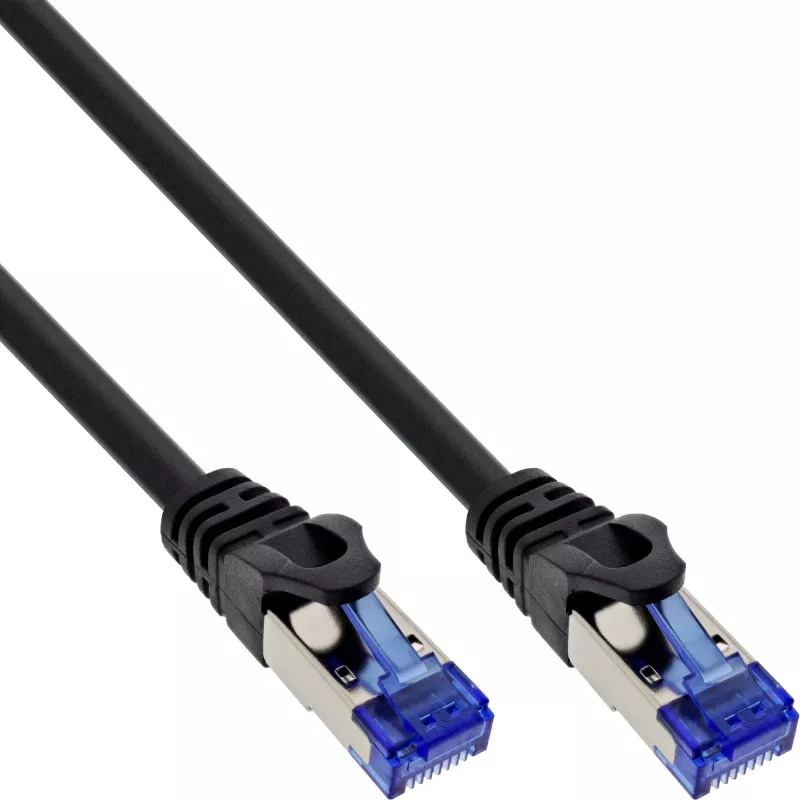

InLine Καλώδιο patch θωρακισμένο, U/FTP, Cat.6A, μαύρο, 0,3m

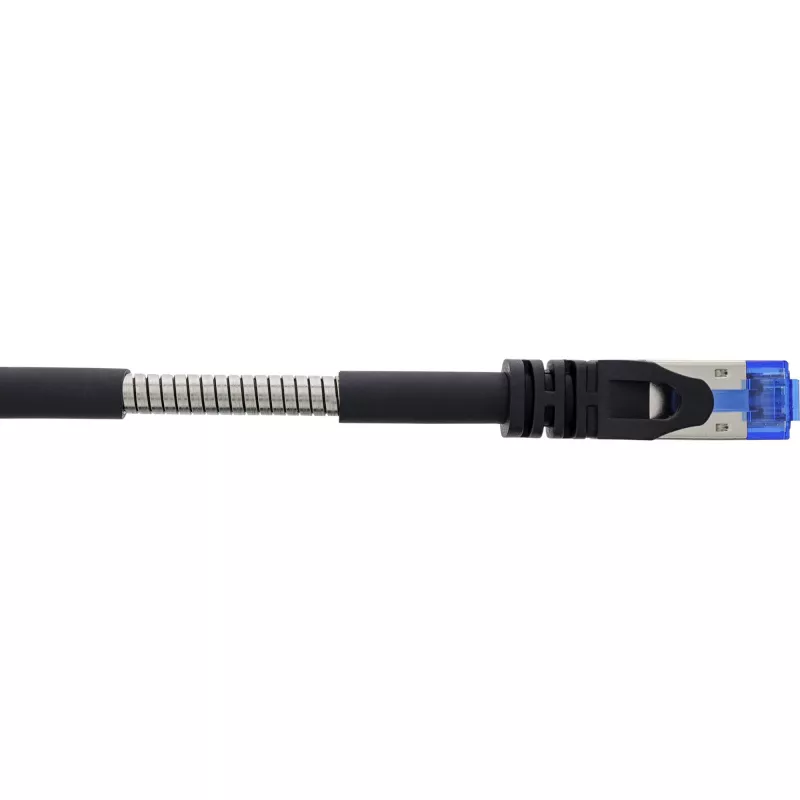

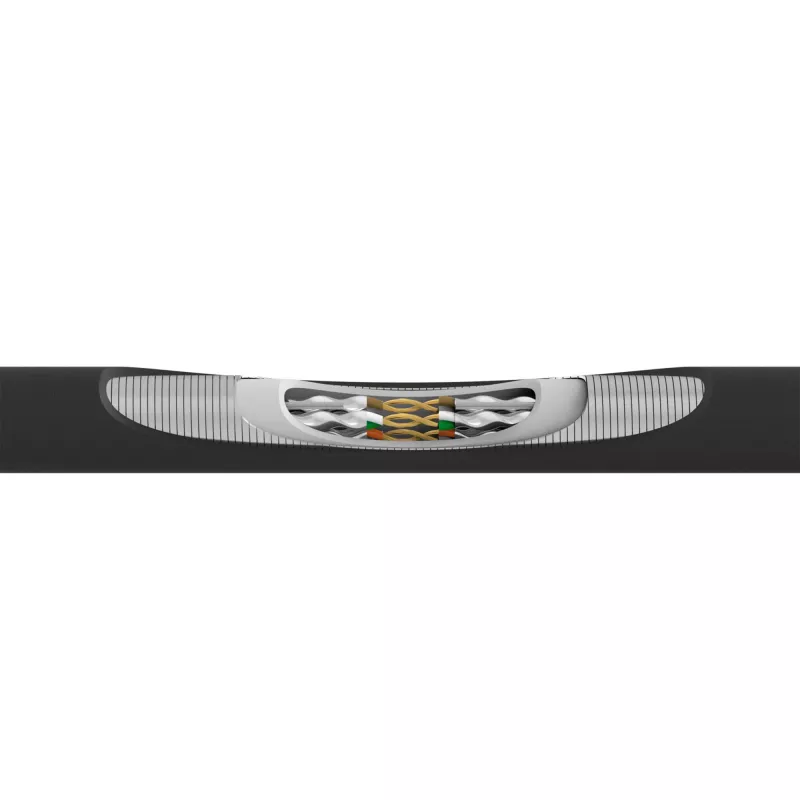

The InLine® Cat.6A armoured patch cable is a robust and powerful Ethernet cable designed for demanding network applications and environments. With armouring for increased mechanical strength, it offers reliable performance in various environments. Thanks to its full shielding and the use of high-quality materials, such as an inner jacket made of SUS204 stainless steel and an outer jacket made of highly elastic PVC, it guarantees high resistance. The InLine® patch cable is equipped with a core insulation layer HDPE - a robust and high-density polyethylene material - that offers excellent insulation properties. This patch cable is ideal for network applications where high quality insulation and signal integrity are required. Overall, armoured patch cords provide a robust solution for environments where traditional cables are not sufficient and ensure a reliable network connection even under demanding conditions. The InLine® patch cable is protected from heavy foot traffic, weather, pests and rodents due to its high quality construction. Ideal for shows, concerts, billboards and advertising signs.

Cable type: Cat.6A U/FTP
Conductor: 28AWG
Insulation material: HDPEJacket: PVC
Outer diameter: 7.3mm (OD)
Connector type: 8P8C (RJ45) with 50µ" gold-plated contacts
Plug type: Fully shielded crimped plug
Inner jacket: SUS204 (stainless steel)
Outer sheath: Highly elastic PVC
Temperature range: Installation 0 to 50 °C, operation -20 to 60 °C
Bandwidth: 500MHz
Rated voltage: 30V
PoE/PoE+/PoE++: (up to 90W)
Force resistance with short pressure: 2000 N
Force resistance with sustained pressure: 500 N
Electrical properties:

Conductor DC resistance: 28.4 O/100m (maximum)
Impedance: 100 O
Capacitance: 5600pF/100m
Propagation delay: 545ns/100m (maximum)
Delay: 45 ns/100m (maximum)

Certification: Passes Fluke DSX 8000 channel test

InLine Patch cable armoured, U/FTP, Cat.6A, black, 0.3m. Cable length: 0.3 m, Cable standard: Cat6a, Cable shielding: U/FTP (STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Product colour: Black

How to use

Connect the RJ-45 plugs to the corresponding Ethernet ports on your devices or patch panel. Ensure shielding continuity by inserting the fully shielded plug into a properly grounded metal jack or chassis to maintain full U/FTP performance. Use the 0.3 m length for short runs where an armored, protected connection is required; avoid excessive bending beyond the specified outer diameter constraints to preserve cable integrity.

Recommendations

For best performance, install the cable in environments within the specified temperature range and ensure connectors and patch points are properly grounded. Do not route the cable near strong electromagnetic sources without additional separation, and avoid sharp bends or crushing loads beyond the stated force limits.
