InLine καλώδιο εγκατάστασης duplex S/FTP PiMF Cat.7a AWG23 1200MHz, LSOH, 100m

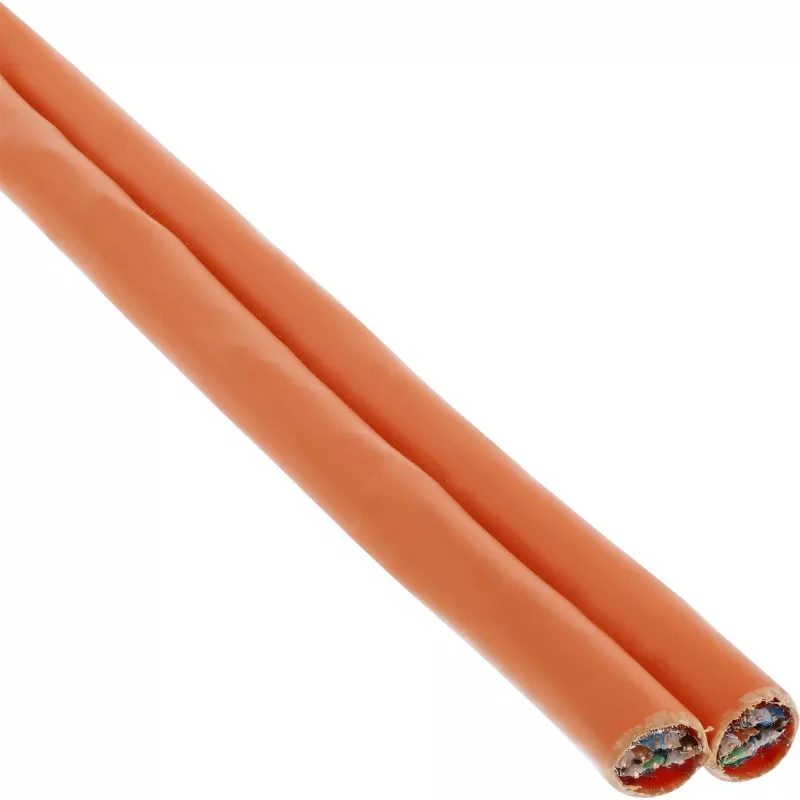

The InLine Duplex Installation Cable S/FTP PiMF Cat.7a AWG23 1200MHz is supplied in a drum box that allows easy unwinding and precise cutting to the required length. The cable is a duplex installation type with S/FTP (screened foil around each pair plus overall braid) construction, designed for high-bandwidth data transmission up to 1200 MHz. It features full copper conductors, an orange LSOH jacket, and meter-printing for straightforward installation and identification.

Advantages

The drum box packaging enables faster handling on site without the need for additional reel equipment and reduces costs for small quantity jobs. The packaging is lightweight, easy to carry, stackable in work vehicles, and suitable for parcel shipping. Cardboard protection helps prevent contamination and mechanical damage to the cable during transport and storage.

Suitable for

• Structured cabling in commercial and residential buildings
• High-speed Ethernet up to 10 Gbps
• Installations requiring flame-retardant, halogen-free (LSOH) materials
• Situations where compact, easy-to-handle packaging is needed

Key specifications

• Standard: Cat.7a duplex installation cable, up to 1200 MHz

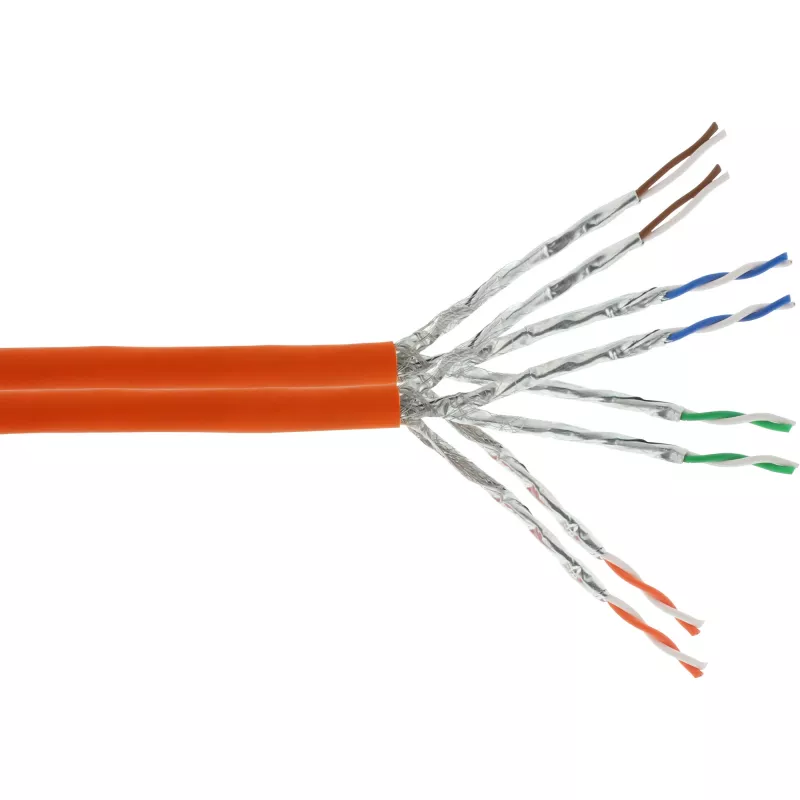

• Construction: (2x) 4x2xAWG23/1 S-FTP PiMF (pairs in metal foil, overall braid)
• Conductors: full copper
• Impedance: 100 Ω
• DC resistance: max. 87 Ω/km
• Sheath: halogen-free (LSOH), orange
• Cable diameter: approx. 2 x 8.2 mm
• Temperature range: installation 0 to 50 °C, operation -20 to 60 °C
• Reaction to fire: Eca (EN 50575:2014 / A1:2016)
• Meter-printing on the cable for length reference

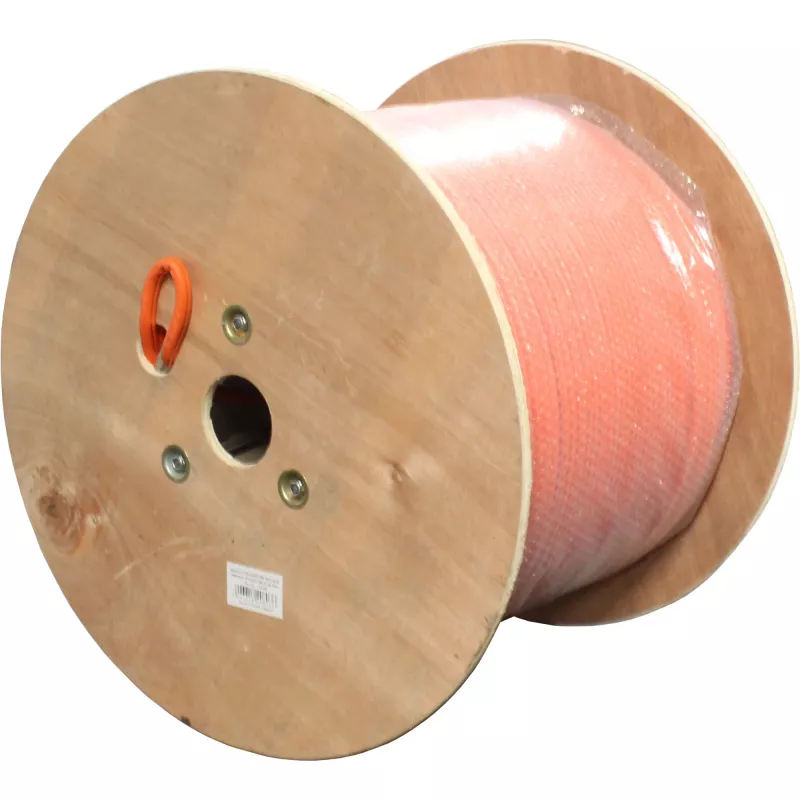

• Available packaging lengths: drum box for 50 m and 100 m; 300 m and 500 m supplied on a single drum

How to use

Place the drum box near the installation route and pull the cable directly from the plastic roller, cutting to the required length using the meter-printing as a guide. Ensure the cable is unreeled without sharp bends or kinks and follow standard installation practices for S/FTP cables, including correct grounding of the overall braid and careful handling of the pair shielding. Terminate with connectors and patch panels rated for Cat.7a or compatible shielding to maintain performance up to 10 Gbps.

Recommendations

Do not exceed the specified bending radius during installation, avoid crushing or exposure to oils and solvents, and store the drum box in a dry environment. For long permanent links and highest performance, use appropriate certified connectors and accessories that match Cat.7a S/FTP specifications.
