InLine DVI USB KVM Extender over TP καλώδιο με ήχο έως 50m

The InLine DVI USB KVM Extender DX050 with Audio extends DVI video and USB keyboard/mouse signals up to 50 m over Cat 5e (TP) cable, enabling a remote console while the source equipment remains in a secure or protected location. The extender supports DVI-I video, stereo audio and common widescreen resolutions up to 1920 x 1200. It uses a passthrough for EDID when the real display information is required and includes a 5V power adapter for stable operation.

Advantages

The DX050 provides a simple, cable-efficient solution to place monitors and consoles away from the host system using common Cat 5e wiring. It transmits DVI video, USB keyboard/mouse and stereo audio over a single TP run and preserves EDID information when needed. The unit supports resolutions up to 1920 x 1200 to maintain clear image quality for most widescreen displays.

Suitable for

• Remote workstations where computers are kept in a secure room
• Industrial or factory floors to protect equipment from dust and harsh environments
• Construction sites or service areas requiring the console to be accessible but equipment remote
• Office installations using existing Cat 5e cabling to reach distant displays

Key specifications

• Maximum distance: up to 50 m over Cat 5e/TP cable
• Video interface: DVI-I, supports resolutions up to 1920 x 1200
• USB: supports keyboard and mouse connections
• Audio: stereo audio support
• Power: 5V AC adapter included
• Colour: Black
• Brand/Model: InLine DX050 (MPN 61640, EAN 4043718219537)

How to use

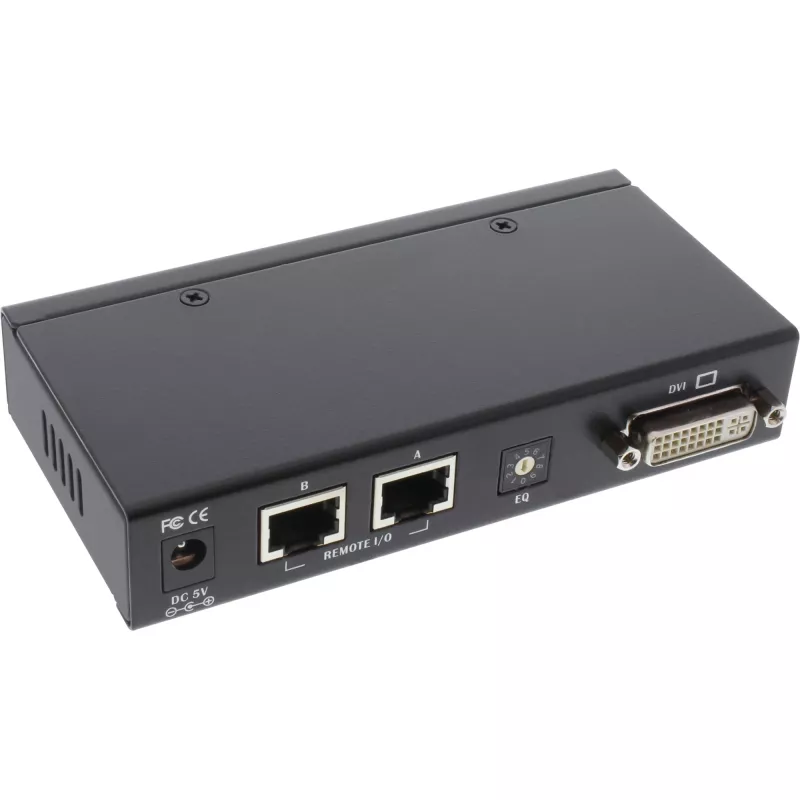

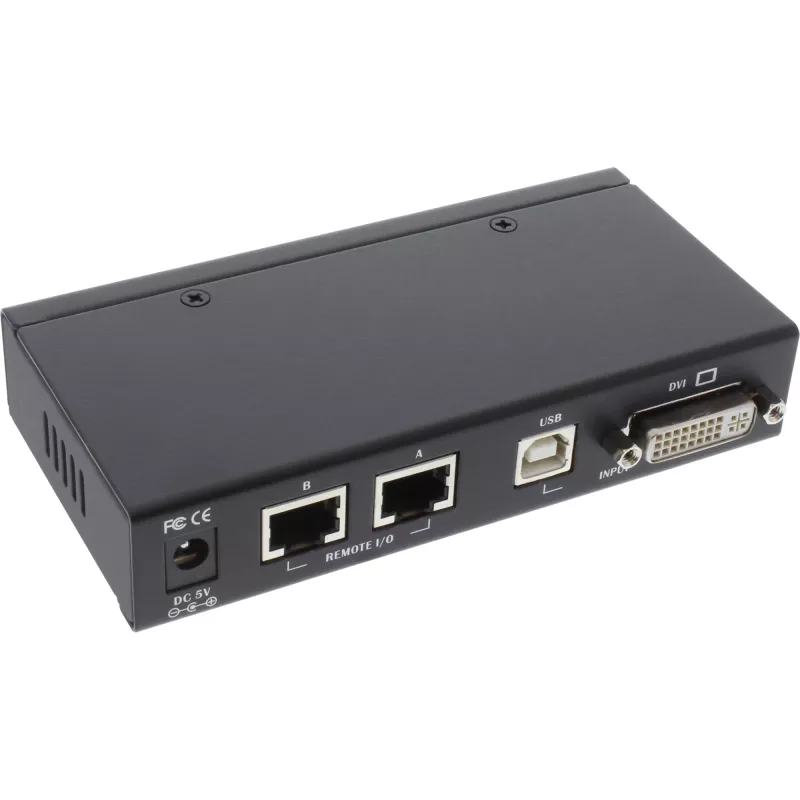

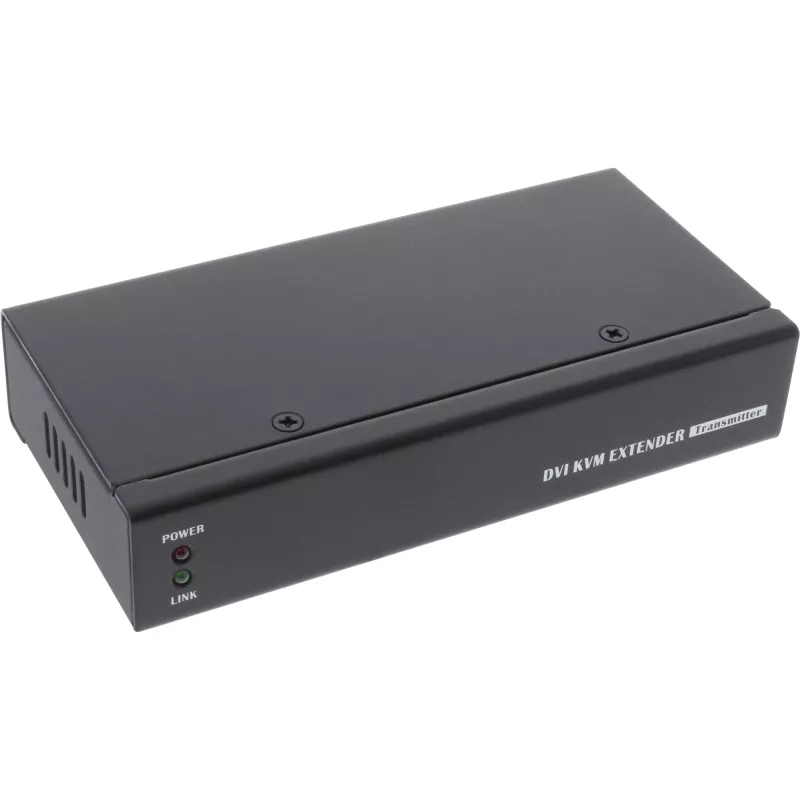

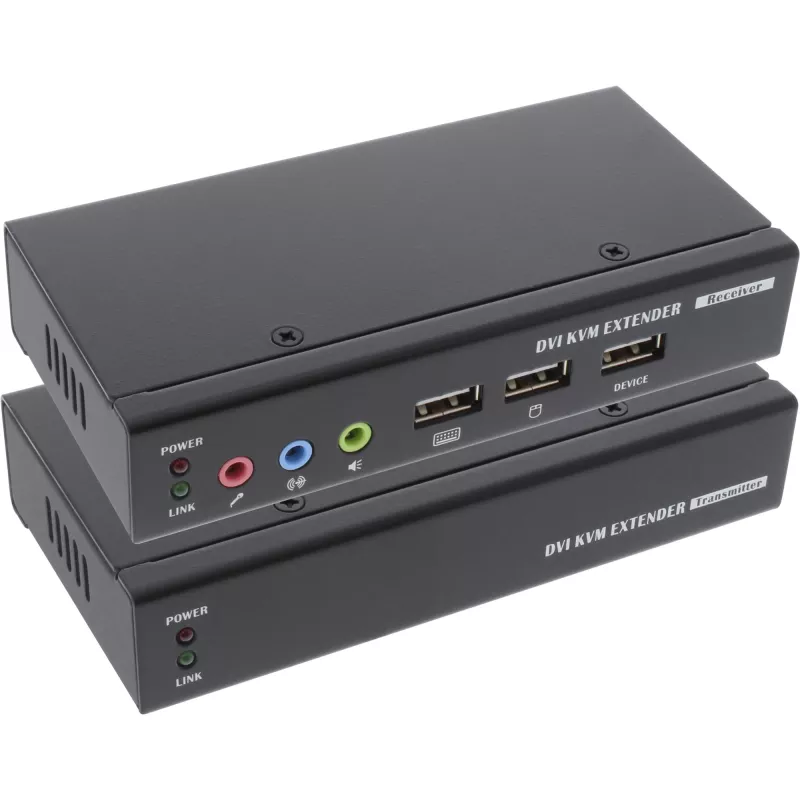

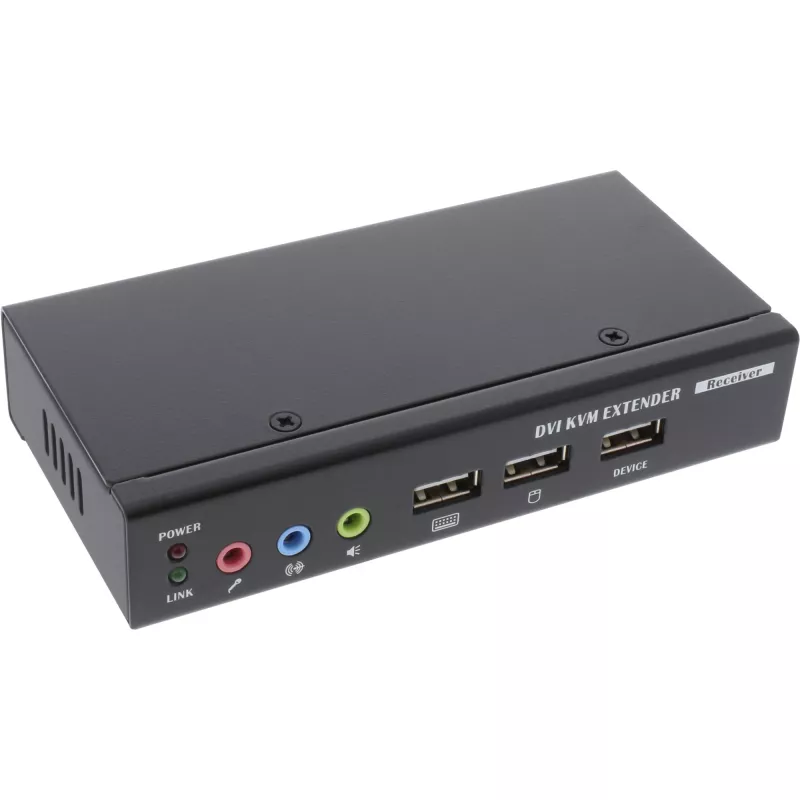

Connect the transmitter unit to the DVI source and to the computer USB ports for keyboard and mouse. Connect the receiver unit to the remote DVI display and to the remote USB devices. Link transmitter and receiver using a single Cat 5e (TP) cable up to 50 m. Attach the supplied 5V power adapter to each unit as required. If the connected monitor provides EDID data, the extender will pass it through the TP cable to the source when real EDID is required.

Recommendations

For best results use good-quality Cat 5e or higher-rated cable, avoid runs near strong electromagnetic interference sources, and verify monitor resolution settings are supported (up to 1920 x 1200). Ensure both units have stable 5V power and confirm USB devices are compatible with KVM extender operation.
