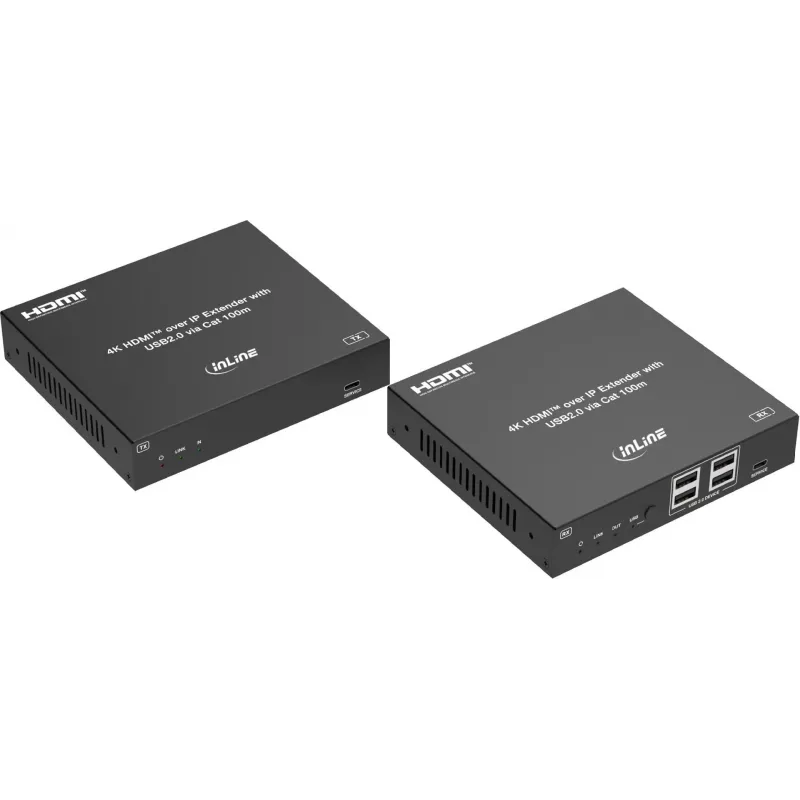

InLine® KVM Extender μέσω IP, HDMI 4K/60Hz, 100m, σετ (57886G)

Unlike standard KVM extenders limited to point-to-point links, this InLine® KVM Extender over IP leverages standard Gigabit Ethernet infrastructure to transmit HDMI 4K/60Hz video, USB 2.0, and stereo audio up to 100 metres. It supports flexible network topologies — point-to-point, point-to-multipoint, and multipoint-to-multipoint — making it ideal for control rooms, digital signage, and remote workstation setups. The set includes both transmitter and receiver units, power adapters, and mounting brackets for immediate deployment.

Highlights

• Supports HDMI 2.0 with 4K (3840x2160) @ 60Hz, YUV 4:4:4 colour, and HDCP 2.2
• Extends over IP via a single Gigabit Ethernet port (Cat.6/6a/7 recommended)
• Full KVM functionality: USB 2.0 for keyboard, mouse, and other peripherals
• Low-latency transmission for responsive control
• Metal housings with included wall-mount brackets for professional installation

In daily use

Connect the transmitter to your computer's HDMI output and a USB port, then link transmitter and receiver through your network switch or directly with a Cat.6 cable. The receiver provides HDMI output to a monitor and two USB Type-A ports for keyboard and mouse. Audio can be passed via HDMI or through the 3.5mm jacks on both units. The system is plug-and-play, requiring no drivers or software.

Full specifications

• Video resolution: up to 4K (3840x2160) @ 60Hz
• Colour subsampling: YUV 4:4:4
• HDMI standard: HDMI 2.0
• HDCP support: HDCP 2.2
• KVM functionality: USB 2.0 (keyboard, mouse, USB devices)
• Extension technology: over IP (Ethernet)
• Maximum extension distance: 100 metres
• Network cable requirement: Cat.6/6a/7 recommended
• Network interface: 1x RJ45 Gigabit Ethernet per unit
• Operating modes: point-to-point, point-to-multipoint, multipoint-to-multipoint
• Network switch requirement: Gigabit Ethernet switch (IGMP recommended for multi-point)
• Transmitter inputs: 1x HDMI In, 1x USB Type B, 1x 3.5mm Audio In, 1x 3.5mm Audio Out
• Receiver outputs: 1x HDMI Out, 2x USB Type A, 1x 3.5mm Audio In, 1x 3.5mm Audio Out
• Audio support: stereo audio (via HDMI and 3.5mm jacks)
• Power supply: 2x DC 5V/2A (power adapters included)
• Chassis material: metal
• Mounting: wall-mountable (brackets included)
• Included components: transmitter unit, receiver unit, 2x power adapters, USB cable, mounting brackets, manual

Final note

For IT administrators and AV integrators, this KVM extender over IP delivers reliable 4K60 performance with the flexibility of network-based distribution — a future-proof solution for modern control environments.
