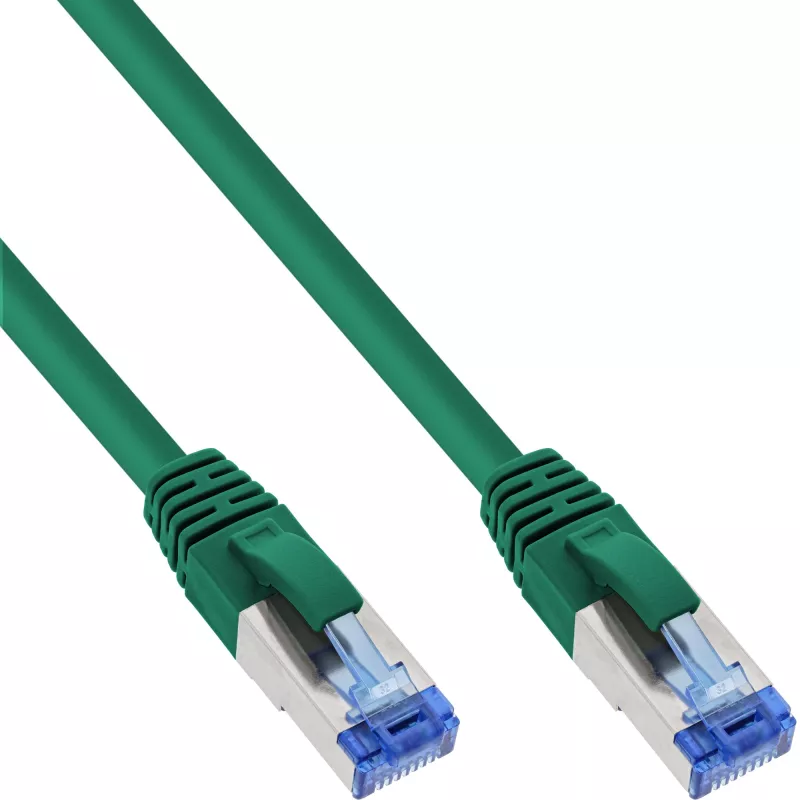

InLine B-76807G Cat.6A S/FTP (PiMf) καλώδιο patch χωρίς αλογόνα, 7,5 m, πράσινο, συσκευασία 15 τεμ. (B-Pack)

The InLine B-76807G is a Cat.6A S/FTP (PiMf) patch cable with a halogen-free LSZH jacket and RJ45 plugs on both ends. It supports data transfer rates up to 10 Gb/s and frequencies up to 500 MHz, making it suitable for Gigabit and 10 Gigabit applications.

Key features

• Cat.6A patch cable with S/FTP (PiMf) shielding
• Halogen-free LSZH jacket
• RJ45 connectors with 50µ" gold-plated contacts and snap-in protection
• Blue-coloured connector for differentiation
• Suitable for Gigabit and 10 Gigabit applications
• Up to 500 MHz
• Includes enclosed test report
• Supports PoE up to 802.3bt (max. 90W)

Specifications

• Brand: InLine
• MPN: B-76807G
• Product colour: Green
• Cable construction: S/FTP (PiMf) 4x2xAWG26/7, solid copper conductor
• Overall braided shield with pair-wise foil shielding
• Jacket: Halogen-free, LSZH, compliant with IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034
• Connector type: RJ45 plug straight (both sides)
• Assignment: 1:1
• Conductor material: CU (copper)
• Length: 7.50 m
• Outer diameter: 6.2 mm
• Wire pairs used for power transmission: determined by the PSE (Power Sourcing Equipment)
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90W
• Max. supported data transfer rate: 10 Gb/s
• Operating temperature: -10 to +60°C
• Storage temperature: -20 to +70°C
• Assignment according to TIA/EIA 568B2.1
• Packaging: Bulk EcoPack (15 pieces in a PE bag and outer carton)
