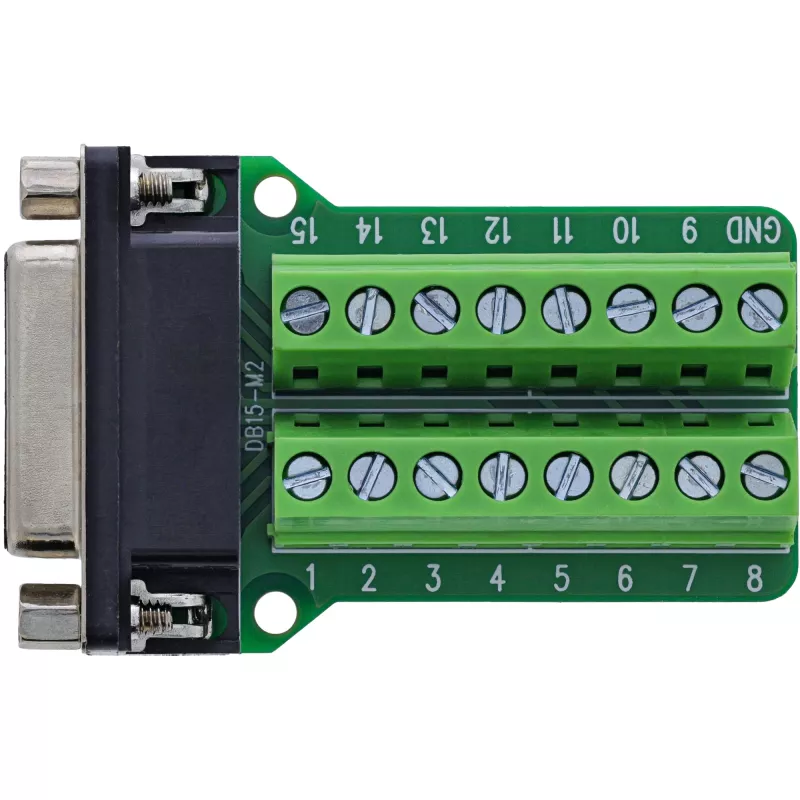

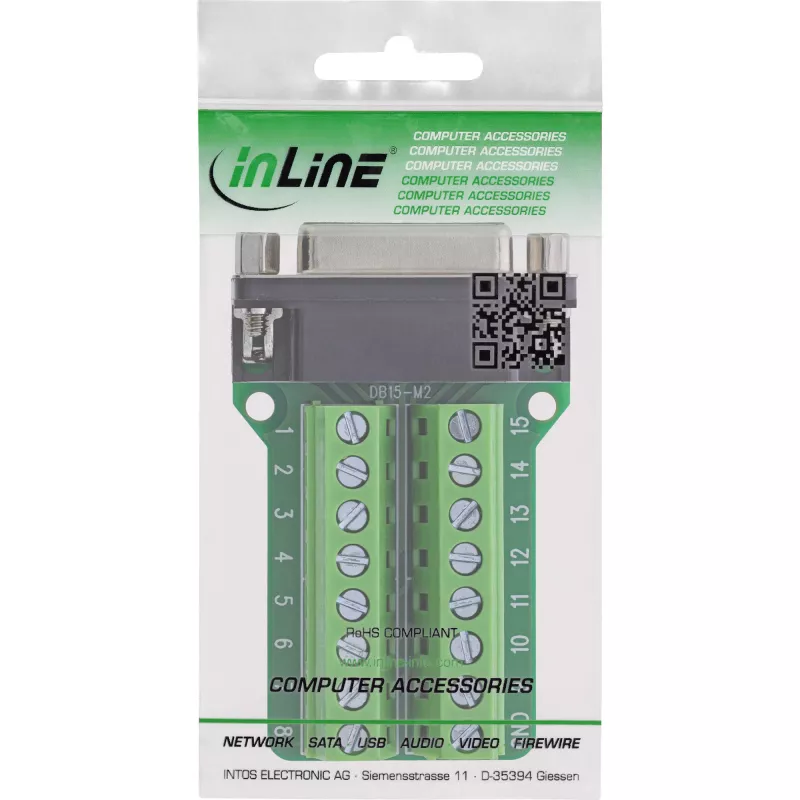

InLine 92502A Συνδετήρας καλωδίου κλέμα / D-Sub 15 μαύρο, πράσινο

Time savings during installation:Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock:The 2-row D-Sub-15 female connector is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fixation with matching plugs.
Versatile use in industry:Ideal for serial control lines in automation, mechanical engineering, test stations, or signal distribution.
Compact design: Measuring approx. 62.5 × 31 × 16 mm, the terminal block can be integrated into existing installations in a space-saving manner – even with high contact density.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission.

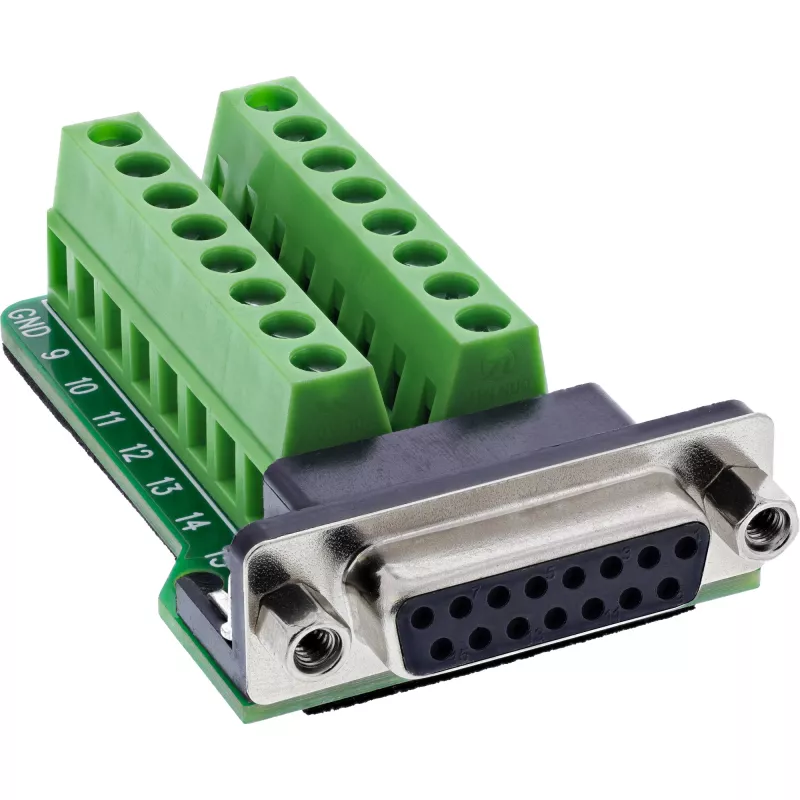

The InLine® D-Sub 15 terminal block with socket in a 2-row design offers a flexible solution for wiring serial signals. The screw terminals with pressure plate allow the connection of single wires in the range of 18–26 AWG – without any soldering. Tool-assisted actuation is performed with a flat-head screwdriver ≤ 2.5 mm.
The integrated screw lock (UNC #4-40) ensures a stable connection with matching connectors – even with vibration or frequent actuation. The compact housing design is suitable for use in industrial control and diagnostic applications.

D-Sub 15 socket:2-row, with mounting thread for plug locking (UNC #4-40)
Connection technology:Screw terminal with pressure plate
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside
Dimensions:approx. 63 × 39 × 18 mm (L × W × H)

InLine 92502A. Connector(s): Terminal block / D-Sub 15, Product colour: Black, Green, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 39 x 63 x 18 mm, Weight: 35 g, Width: 39 mm. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan
