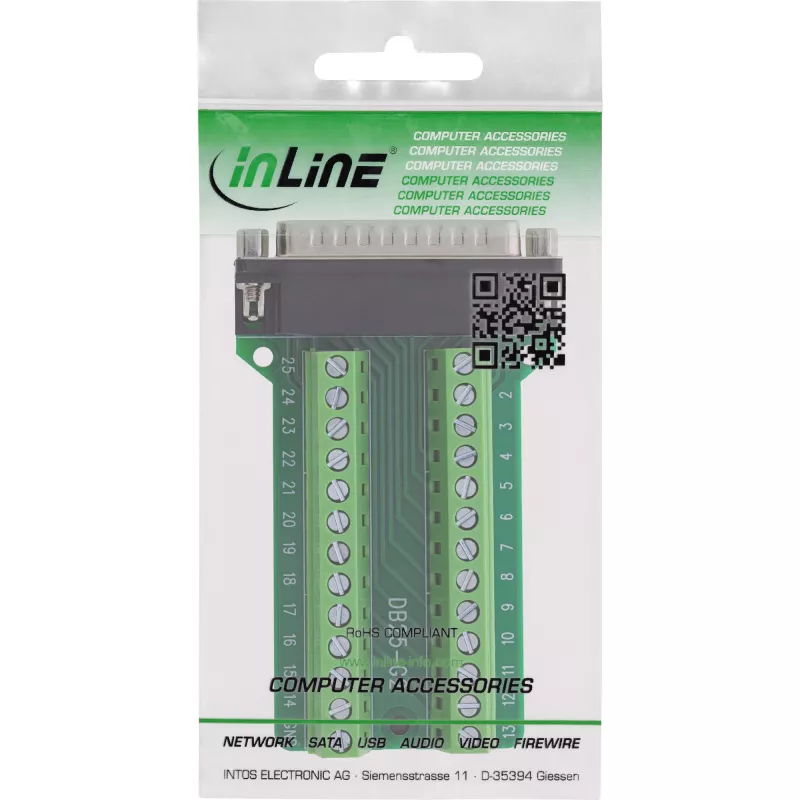

InLine 92502F Συνδετήρας καλωδίου κλέμα σειράς / D-Sub 25 πράσινο

Time savings during installation:Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock:The 2-row D-Sub-25 plug is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fastening with matching sockets.
Versatile use in industry:Ideal for serial control lines in mechanical engineering, automation, test benches, or signal distribution.
Compact design: Measuring approx. 86.5 × 53.3 × 18 mm, the terminal block can be integrated into existing installations in a space-saving manner, even with a high number of pins.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load.

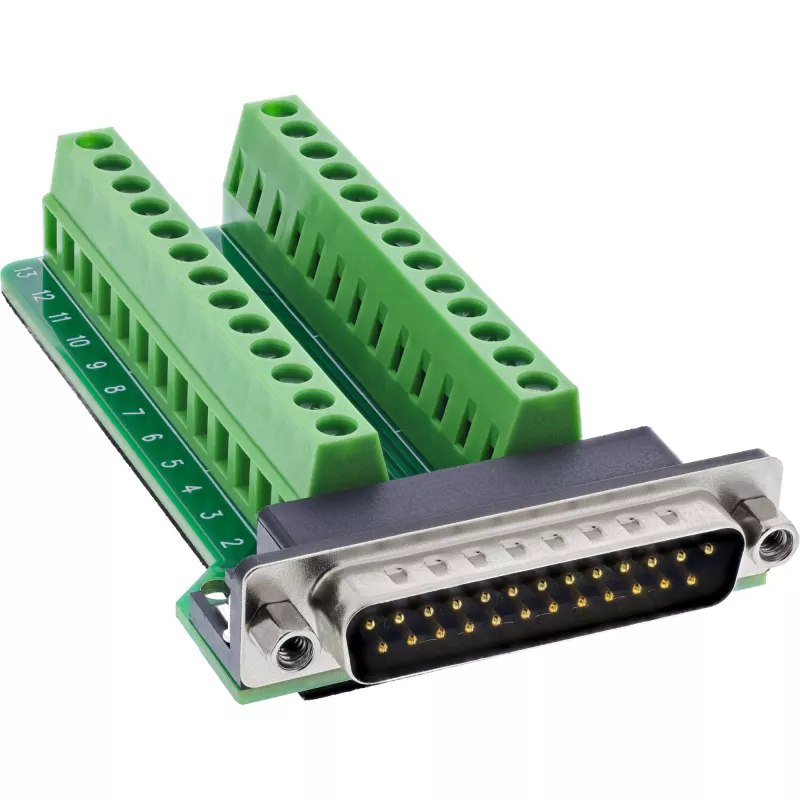

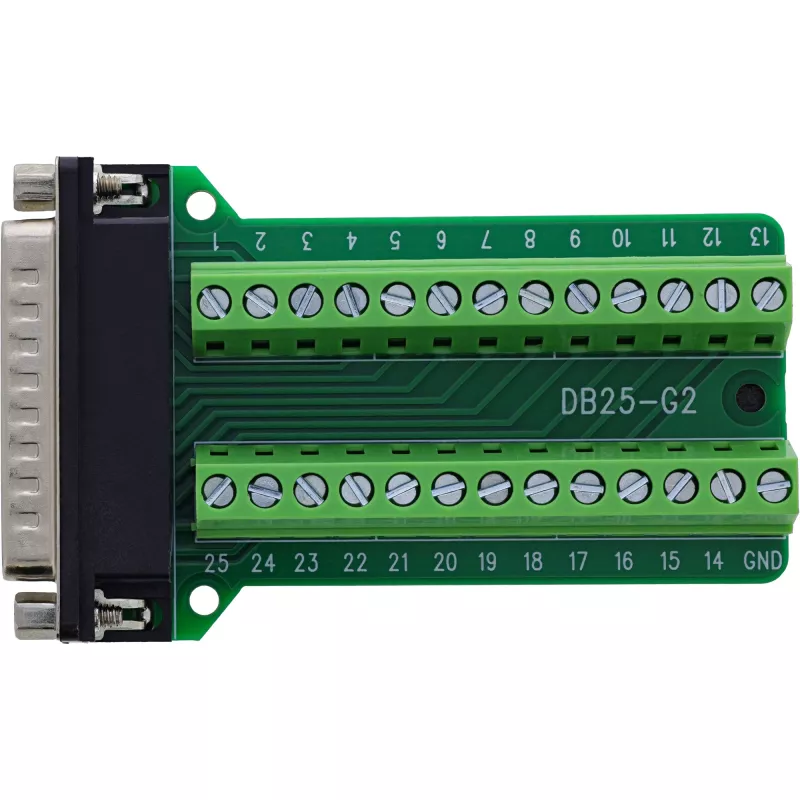

The InLine® D-Sub 25 terminal block with connector in a 2-row design is the ideal solution for serial point-to-point connections with up to 25 wires. The screw terminals with pressure plate enable quick and secure connection of single wires in the 18–26 AWG range – without any soldering. Tool-assisted wiring is carried out with a flat-head screwdriver ≤ 2.5 mm.
The integrated screw lock (UNC #4-40) ensures a stable connection to the matching socket – vibration-proof and repeatably detachable. Thanks to its compact design, the terminal block is particularly suitable for industrial applications with high signal density and limited space.

D-Sub 25 connector:2-row, with mounting thread for connector locking (UNC #4-40)
Connection technology:Screw terminal with pressure plate
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:0.7 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside
Dimensions:approx. 87 × 53 × 18 mm (L × W × H)

InLine 92502F. Connector(s): Terminal block / D-Sub 25, Product colour: Green, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 53 x 87 x 18 mm, Weight: 53 g, Width: 53 mm. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan
