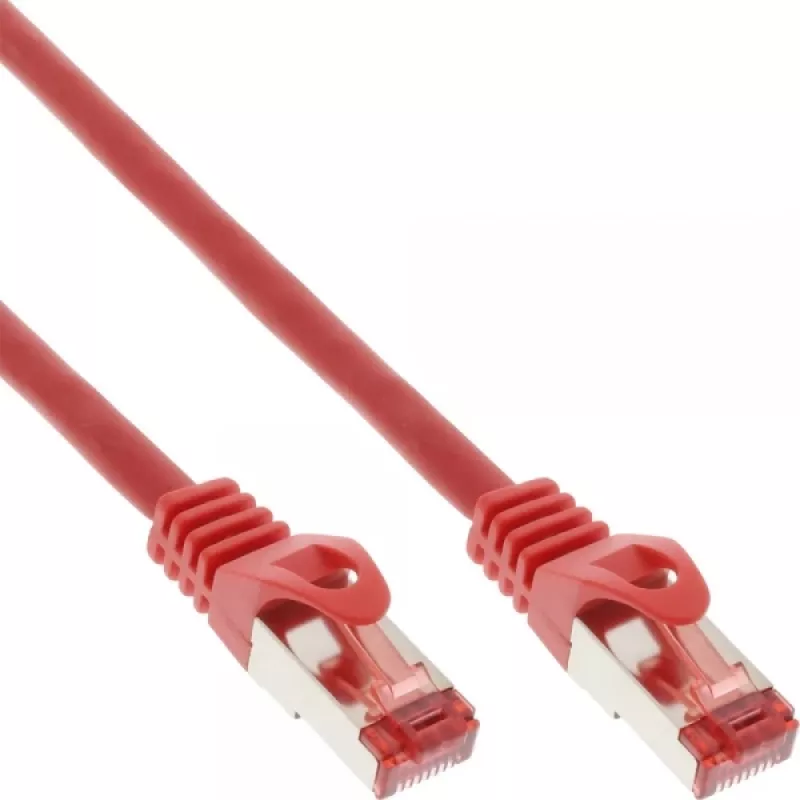

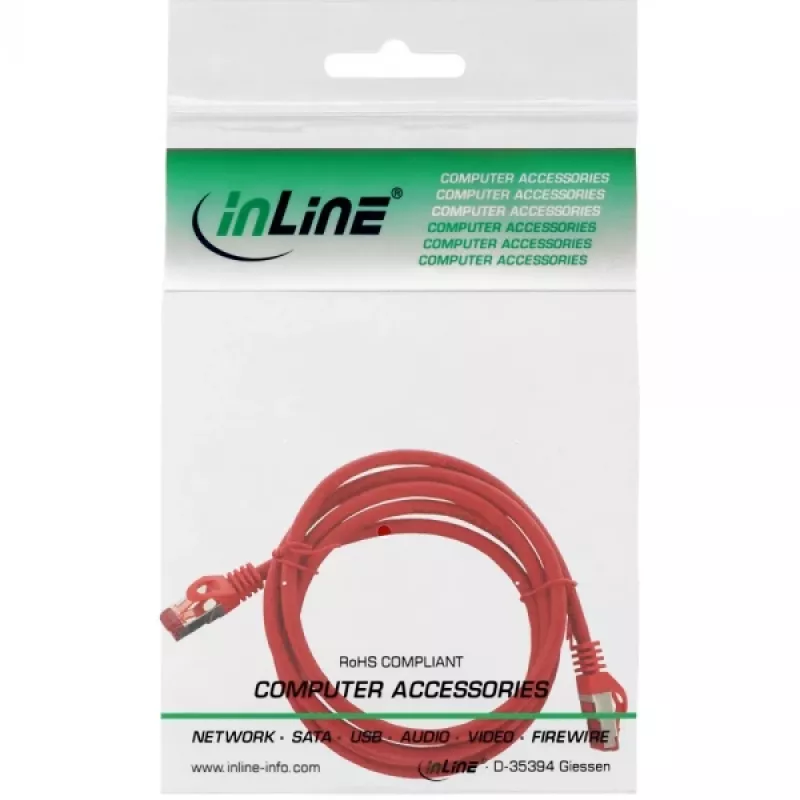

InLine 76912R Καλώδιο Patch, S/FTP (PiMf), Cat.6, χωρίς αλογόνα, χαλκός, κόκκινο, 1,5 m

The InLine 76912R is a Cat.6 S/FTP (PiMf) patch cable with a halogen-free sheath, designed for connecting network components with RJ45 ports such as switches, routers, wall outlets, patch panels, and network cards. It supports Gigabit connections at frequencies up to 250 MHz and features molded RJ45 plugs with integrated bend and snap protection.

Key features

• S/FTP (PiMf) shielding: overall braided shield and pairs in metal foil
• Halogen-free sheath
• Molded RJ45 plugs with bend and snap protection
• Red-colored RJ45 plug for quick differentiation
• Length indication on the connector
• 1:1 assignment according to EIA/TIA 568B
• Gigabit capable (1 Gb/s, max. 250 MHz)
• Solid copper strands, AWG27

Specifications

• Brand: InLine
• MPN: 76912R
• Type: Cat.6
• Shielding: S/FTP (PiMf)
• Conductor material: CU (copper)
• Wire cross-section: AWG27
• Connector side A: RJ45 plug straight
• Connector side B: RJ45 plug straight
• Assignment: 1:1
• Length: 1.50 m
• Outer diameter: 6.2 mm
• Sheath: Halogen-free (LSZH)
• Data transmission rate: 1 Gb/s
• Operating temperature: -10 to +60°C
• Storage temperature: -20 to +70°C
• Colour: Red
• Design: Round cable
• Signal: Network
• PoE/PoE+/PoE++: Yes
