InLine 76666N Κάρτα διασύνδεσης/προσαρμογέας εσωτερική USB 3.2 Gen 2 (3.1 Gen 2)

Expansion with modern USB 3.2 interfaces:Upgrades desktop and industrial PCs with two additional USB-A 3.2 Gen. 2 ports for transfers of up to 10 Gb/s.
Stable power supply for powerful devices:The integrated SATA Power connection ensures a reliable power supply – ideal for external hard drives or docking stations.
Compatible and flexible:Supports Windows (7-11, 32 & 64 bit) and Linux from version 3.0 and fits in PCIe x4, x8, and x16 slots.
Easy installation without additional drivers:Plug & Play and hot-plugging enable quick use without complex configuration.
Compact design for various cases:The included low-profile slot bracket allows use even in small PC cases or industrial systems.

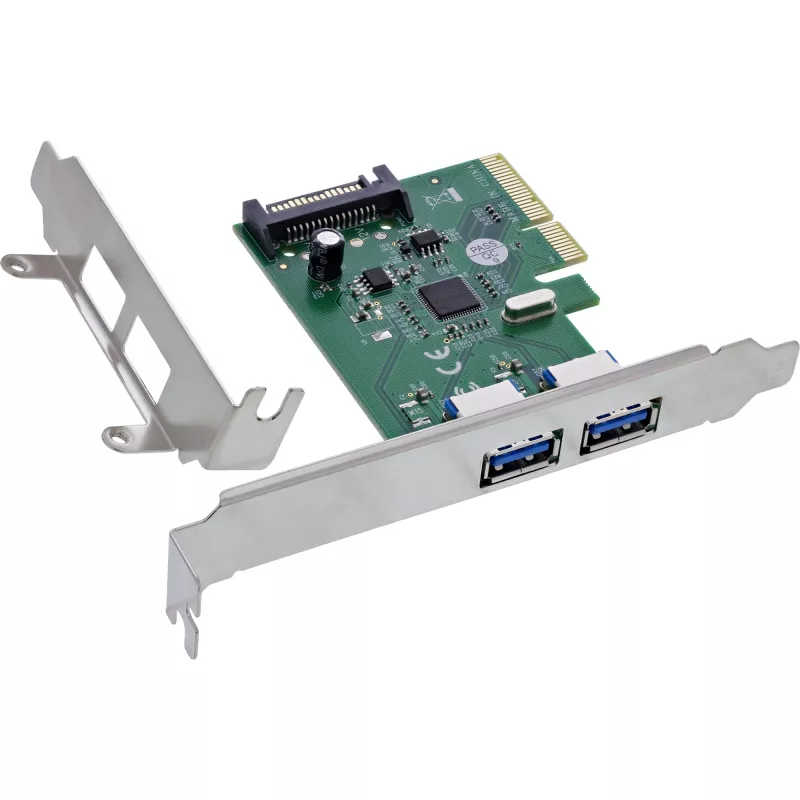

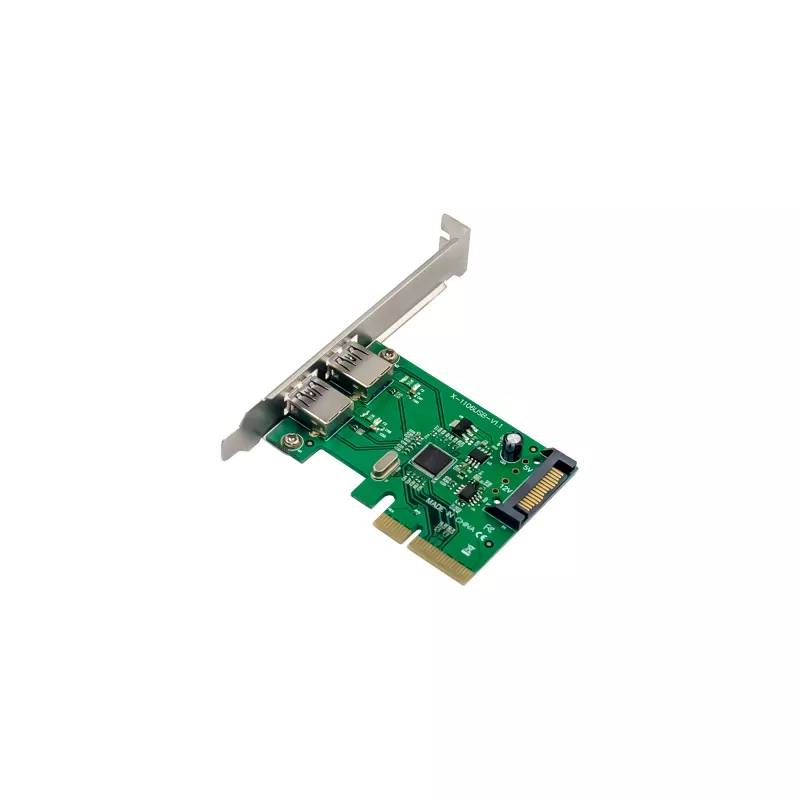

The InLine® interface card expands existing systems with two powerful USB-A 3.2 Gen. 2 ports with a transfer rate of up to 10 Gb/s. It is ideal for workstations or industrial environments where a reliable and fast data connection is required. Thanks to the ASMedia ASM1142 chipset, stable performance is ensured, even with high data loads.
The integrated SATA power connection also allows power-intensive devices such as external hard drives or docking stations to be operated reliably. The card supports Plug & Play and Hot Plug, enabling easy integration into existing systems without the need to install additional drivers. The low-profile slot bracket also makes it suitable for compact enclosures, offering flexible application options in professional environments.
The InLine® interface card offers a reliable solution for expanding workstations or servers with modern USB ports and ensures that your systems remain powerful in the future.

Chipset: ASMedia ASM1142
PCIe standard: PCIe v3.0 x4 lane
Supported operating systems: Linux v3.0 or higher, Windows 7/8/8.1/10/11 (32 & 64 bit)
UASP support: Yes
Max. current per port: 5 V / 900 mA (with SATA power)
Transfer rates: 10 Gb/s (USB 3.2 Gen. 2), 5 Gb/s (USB 3.2 Gen. 1), 480 Mb/s (USB 2.0)
Operating temperature: 0 °C to +85 °C
Storage temperature: -25 °C to +85 °C
Card length (without slot bracket): approx. 80 mm
Power supply: SATA power (optional)

InLine 76666N. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Host interface gender: Male. Product colour: Green, Silver, Country of origin: Taiwan. Chipset: ASMedia ASM1142, Data transfer rate (max): 10 Gbit/s. Output current: 0.9 A. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows...

How to use

Power off the computer, insert the card into an available PCIe x4/x8/x16 slot and secure it with the bracket. Connect an internal SATA power cable to the card if you plan to use power-hungry devices. After booting, the card is recognized via Plug & Play on supported operating systems (Windows 7–11, 32/64 bit, or Linux v3.0+). You can hot-plug USB devices to the ports once the system is running.

Recommendations

For stable operation with external drives or docking stations, connect the SATA power cable rather than relying solely on motherboard power. Ensure the card is placed in a PCIe slot that provides the required lane support (x4 minimum) and use the low-profile bracket for small cases.
