Κάρτα διασύνδεσης EXSYS EX-12011 εσωτερική USB 3.2 Gen 2

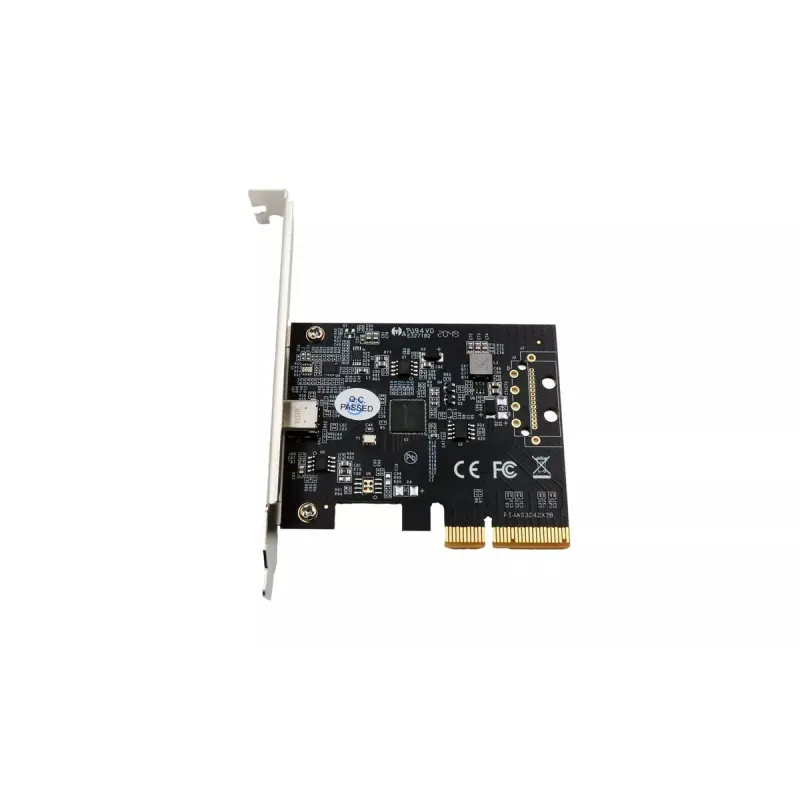

The EXSYS EX-12011 Internal USB 3.2 Gen 2 interface card is a PCIe add-in card that provides two external SuperSpeed USB 3.2 Gen2 ports via a single USB-C connector. Designed for installation in workstations, desktops or servers, the card extends system connectivity to support a range of USB devices and high-speed external storage.

Advantages

The card supports multiple USB generations (USB 1.1/2.0/3.0/3.2 Gen2) and transfer rates up to 10 Gbps per port and up to 20 Gbps aggregated via supported modes. It provides up to 2.4 A current on the external USB 3.2 Gen2 ports for powering or charging connected devices. A low-profile bracket is included for use in slim enclosures (maximum height 8 cm). The PCIe Gen3x4 connection ensures sufficient bandwidth for demanding peripherals.

Suitable for

• Connecting external storage enclosures (HDD/SSD)
• Attaching digital cameras, webcams and scanners
• Expanding USB ports on desktops, workstations and servers

Key specifications

• Interface: PCIe (Gen3x4)
• External ports: 1 × USB-C providing two SuperSpeed USB 3.2 Gen2 channels
• Supported USB standards: USB 1.1, USB 2.0, USB 3.0, USB 3.2 Gen2
• Data rates: up to 10 Gbps per SuperSpeed Gen2 port (supports USB 3.2 modes up to 20 Gbps where applicable)
• Output current: up to 2.4 A on external USB 3.2 Gen2 ports

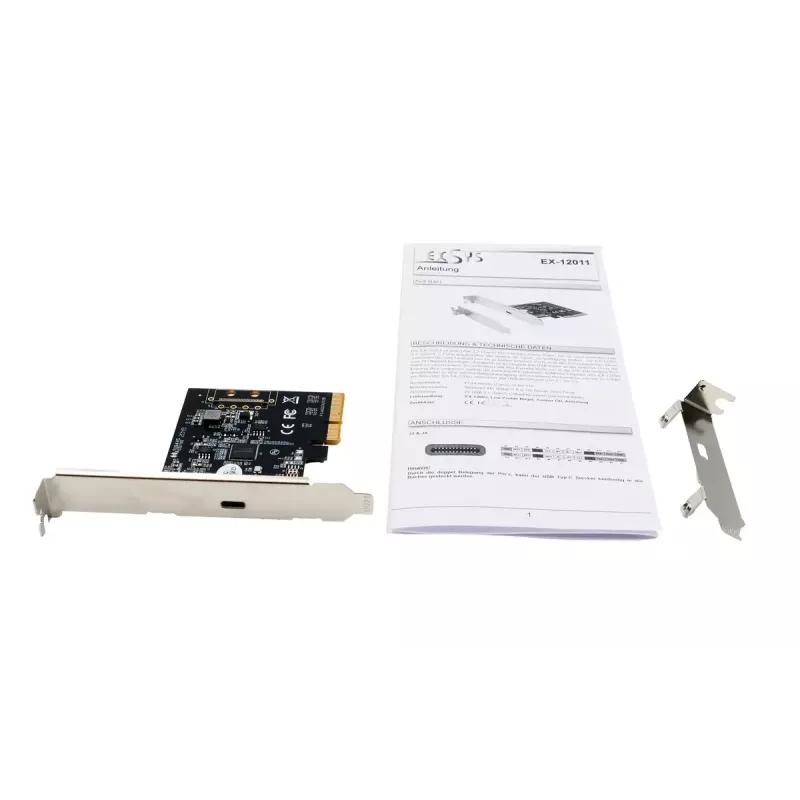

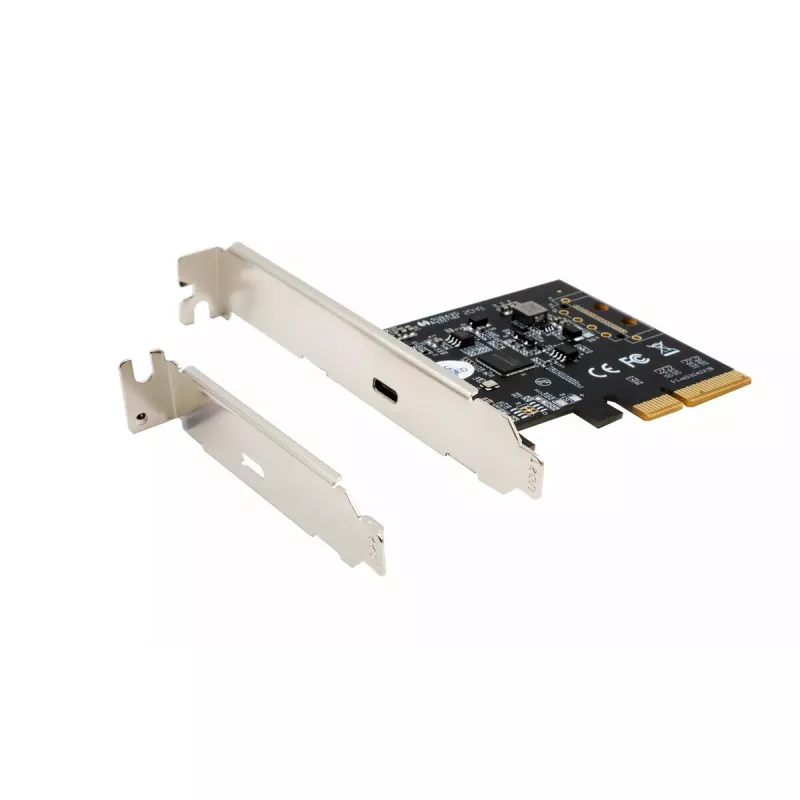

• Includes low-profile bracket for slim enclosures (max height 8 cm)
• Manufacturer: Exsys, MPN EX-12011, EAN 4718359120114

How to use

Power off the computer and insert the EX-12011 into an available PCIe slot (recommended Gen3x4). Secure the card with the bracket and optionally fit the included low-profile bracket for slim cases. Reconnect power and boot the system; the operating system should detect the new USB controller and install drivers automatically or prompt for driver installation. Connect USB devices to the external USB-C port using a compatible cable to enable high-speed data transfer and device charging where supported.

Recommendations

Use high-quality USB-C cables rated for USB 3.2 Gen2 to achieve maximum transfer rates. For heavy sustained transfers, connect to a PCIe Gen3x4 slot and ensure adequate airflow in the system to prevent thermal throttling.
