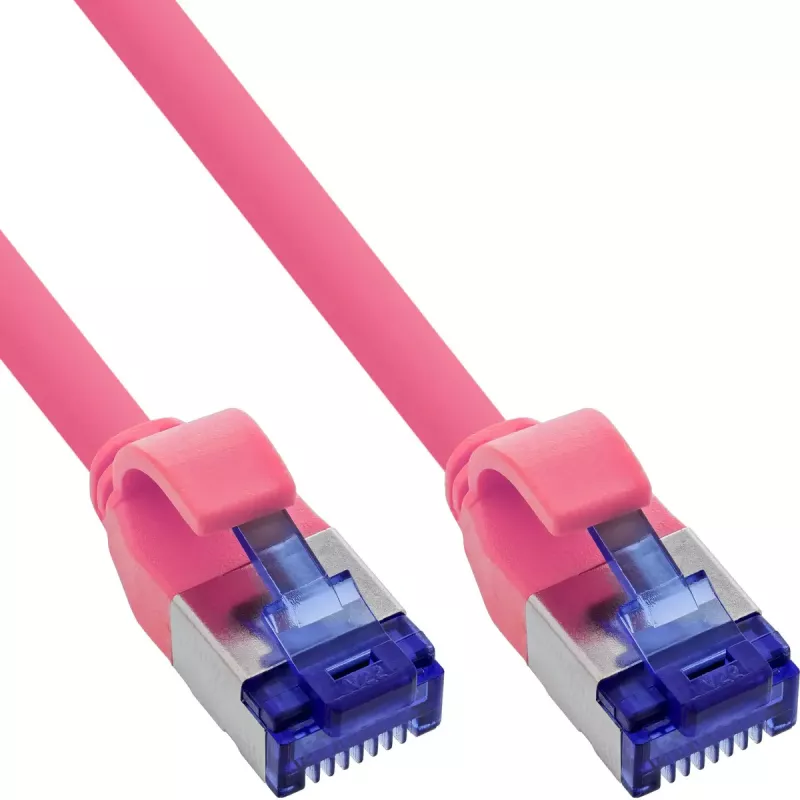

InLine 74914M καλώδιο δικτύου ματζέντα 1,5 m Cat6a S/FTP (S-STP)

Space-saving design for maximum port density: Approx. 40 % less space required than conventional AWG26 patch cables – ideal for network cabinets and server rooms.
High-quality copper conductors for maximum performance: Full Cat.6A transmission quality with up to 10 Gbit/s over lengths of up to 30 meters.
PoE support up to 87 watts (4PPoE): Enables energy-efficient operation of IP cameras, access points or VoIP telephones without additional power supply units.
Sustainable & economical: Approx. 25% material savings reduce transportation and manufacturing costs and improve the CO2 balance.
Flexible, safe TPE sheath (LSZH): Flame-retardant, halogen-free and particularly flexible for narrow installation paths.

The InLine® Slim Cat.6A S/FTP patch cable seriescombines highest network performance with maximum space and energy efficiency. Thanks to the particularly slim design with AWG28 conductors, these cables enable a significantly higher port density in network cabinets and ensure improved air circulation, which increases cooling and efficiency.

In contrast to conventional, thinner AWG32 cables, this cable supports full Cat.6A transmission quality at up to 500 MHzand 4PPoEwith up to87 watts. This makes it the ideal solution for professional applications where a combination of space-saving, PoE capability and high performance is required.

The use of high-quality copper conductors minimizes signal loss and ensures a reliable network connection - even over distances of up to 30 metres. The S/FTP double shielding reliably protects the cable from electromagnetic interference.

In addition to its technical performance, this cable also offers ecological benefits: Approx. 25% less material usedreduces transportation costs and, in the long term, environmental taxes in accordance with future Green Law requirements.

The TPE sheath (LSZH)combines flexibility with fire protection: It is halogen-free, flame-retardant and ensures minimal smoke development in the event of fire – ideal for safety-critical applications.
Additional technical specifications:

Conductor material: Pure copper
Cable construction: S/FTP (pair and overall shielding)
Sheath material: TPE (LSZH – Low Smoke Zero Halogen)
Wire gauge: AWG28
Operating temperature: -20 to +75 °C
Outlet diameter: 4.5 mm
Population: 1:1 according to T568B
PoE support: Yes, up to 87 watts (4PPoE)

InLine 74914M. Cable length: 1.5 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product colour: Magenta

How to use

Connect the RJ45 plugs to the corresponding ports on network devices such as switches, patch panels, servers or endpoints. Ensure connectors are fully inserted until the latching nose engages. Use the cable for horizontal or patch cabling runs up to 1.5 m or as required within racks and cabinets. For best performance keep cable bends gentle and avoid sharp kinks; maintain separation from strong electromagnetic sources where possible.

Recommendations

Use the slim Cat.6A S/FTP cable in high-density rack environments to increase port density and improve airflow. For PoE installations verify device and switch PoE class and cabling integrity to ensure safe delivery of up to 87 W. Follow local fire and building codes when installing LSZH cables in enclosed spaces.
