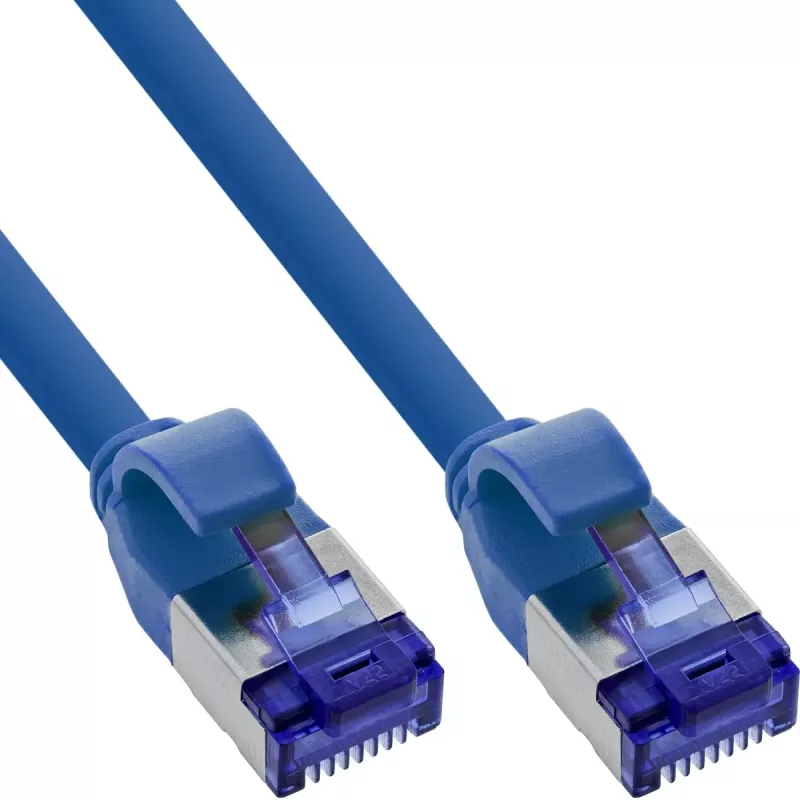

InLine 74907B Καλώδιο δικτύου μπλε 7,5 m Kat.6a S/FTP (S-STP)

InLine 74907B networking cable Blue 7.5 m Cat6a S/FTP (S-STP)

Space-saving design for maximum port density: about 40% less space than conventional AWG26 patch cables, ideal for network cabinets and server rooms. High-quality copper conductors for maximum performance: full Cat.6A transmission quality at up to 10 Gbit/s over lengths up to 30 metres. PoE support up to 87 watts (4PPoE) for energy-efficient operation of IP cameras, access points or VoIP phones without extra power supplies. Sustainable and economical: around 25% material savings reduce transport and manufacturing costs and improve the carbon footprint. Flexible, safe TPE (LSZH) jacket: flame-retardant, halogen-free and especially flexible for tight cable runs. The InLine Slim Cat.6A S/FTP patch cable series combines top network performance with maximum space and energy efficiency. Thanks to the slim AWG28 conductors, these cables allow much higher port density in cabinets and improve airflow, boosting cooling and efficiency. Unlike conventional thinner AWG32 cables, this cable supports full Cat.6A transmission quality at up to 500 MHz and 4PPoE up to 87 watts, making it ideal for professional applications combining space saving, PoE capability and high performance. High-quality copper conductors minimise signal loss and ensure a reliable connection even over lengths up to 30 metres, while the S/FTP double shielding protects reliably against electromagnetic interference. Additional specifications: conductor material pure copper; construction S/FTP (pair and overall shielding); jacket TPE (LSZH – low smoke, zero halogen); conductor gauge AWG28; operating temperature -20°C to +75°C; outer diameter 4.5 mm; wiring 1:1 to T568B; PoE support up to 87 watts (4PPoE). InLine 74907B. Cable length: 7.5 m; standard: Cat6a; shielding: S/FTP (S-STP); connectors: RJ-45 to RJ-45; contact plating: gold; data rate: 10000 Mbit/s; colour: blue. How to use: connect one RJ-45 plug to the network device (switch, patch panel or router) and the other to the endpoint (PC, IP camera, access point or VoIP phone). Make sure the connectors are fully inserted and the latches engage. For best performance keep cable runs within the specified maximum distance and avoid sharp bends or tight bundling that could affect shielding and signal integrity.

Specifications

• Depth: 7500 mm
• Height: 12 mm
• Operating temperature (T-T): -20 - 75 °C
• Package depth: 270 mm
• Package height: 40 mm
• Package weight: 176 g
• Package width: 200 mm
• Product colour: Blue
• Storage temperature (T-T): -20 - 75 °C
• Weight: 165 g
• Width: 15 mm
• Compliance certificates: CE, REACH, RoHS
• Package type: Polybag
• Quantity per pack: 1 pc(s)
• Package volume: 2200 cm³
• Data transfer rate: 10000 Mbit/s
• Cable length: 7.5 m
• Connector contacts plating: Gold
• Power over Ethernet (PoE): Yes
• Frequency: 500 MHz

Genuine Inline product — MPN: 74907B · EAN: 4043718335299.
