InLine 57885I KVM Switch για τοποθέτηση σε rack μαύρο

The InLine 57885I is a 4-way HDMI KVM switch with multiviewer function, allowing you to control and monitor up to four HDMI sources simultaneously on a single UHD display. It supports resolutions up to 3840×2160@60Hz (4:4:4) and offers flexible multiview modes including PIP, PBP, Triple and Quad. Switching can be done via front panel, IR, hotkey, OSD, RS-232 or controller software.

Key features

• Control up to four HDMI sources on one screen
• Multiview modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
• Seamless switching via button, hotkey, IR, OSD, RS-232 or software
• USB KVM for shared keyboard, mouse and USB devices
• Supports 4K@60Hz, HDR and multiple audio formats
• EDID management with predefined and user-defined modes
• Metal housing, black

Specifications

• Brand: InLine
• MPN: 57885I
• Product colour: Black

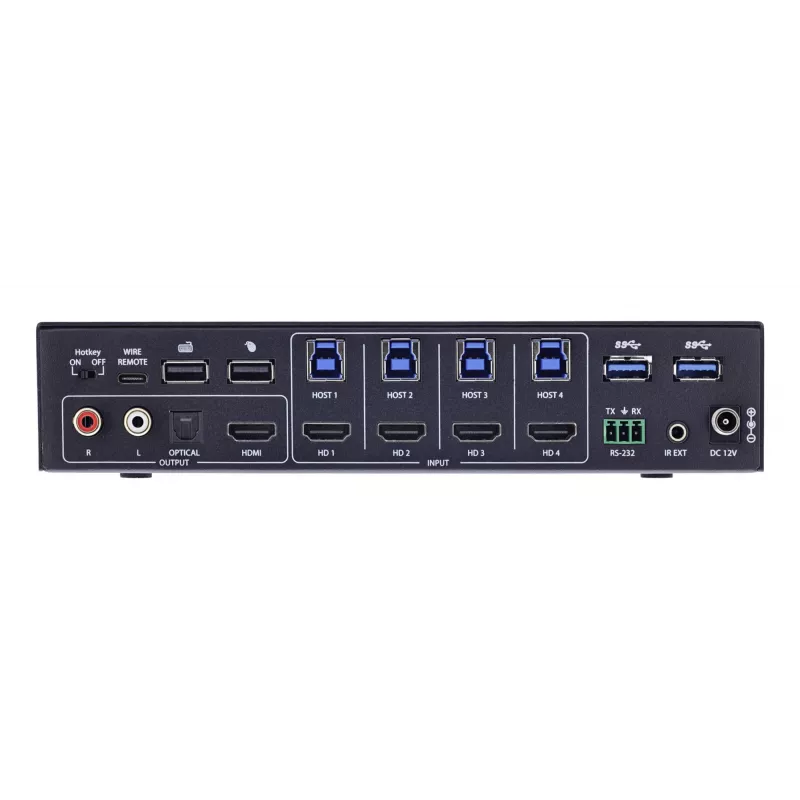

• Inputs: 4 × HDMI (Type A, 19-pin), 4 × USB 3.2 Gen.1 host (USB-B)
• Outputs: 1 × HDMI OUT (Type A), 1 × 3.5 mm stereo jack (L/R, PCM2.0), 1 × S/PDIF (optical)
• Additional connections: 2 × USB 2.0 for mouse/keyboard, 3 × USB 3.2 Gen.1 for USB devices, 1 × RS-232 (3-pin terminal connection), 1 × IR EXT (3.5 mm stereo)
• Supported resolutions: up to 3840×2160@60Hz (4:4:4), 18 Gbps
• Supported audio formats: HDMI: PCM2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-HD, DSD; SPDIF: Dolby Digital/Plus, DTS 5.1, PCM2.0; 3.5 mm L/R: PCM2.0
• HDMI version: 2.0b
• HDCP compatibility: 2.2 / 1.x
• Colour depth: 8 / 10 / 12 bits
• Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
• Control: Front panel, IR, hotkey, OSD, RS-232, controller software
• EDID management: Predefined and user-defined modes
• Housing: Metal, black
• Dimensions: 220 × 100 × 44 mm
• Weight: 443 g
• Operating temperature: 0–40 °C
• Storage temperature: –20–60 °C
• Humidity: 20–90% (non-condensing)
• ESD protection: ±8 kV air / ±4 kV contact
• External power supply: external plug-in power adapter with lock, input 100–240 V AC, 50/60 Hz, output 12.0 V DC, max. 2.5 A, 25.0 W
• Average operating efficiency: 89.26%
• Efficiency at low load (10%): 85.60%
• Power consumption at zero load: 0062 W

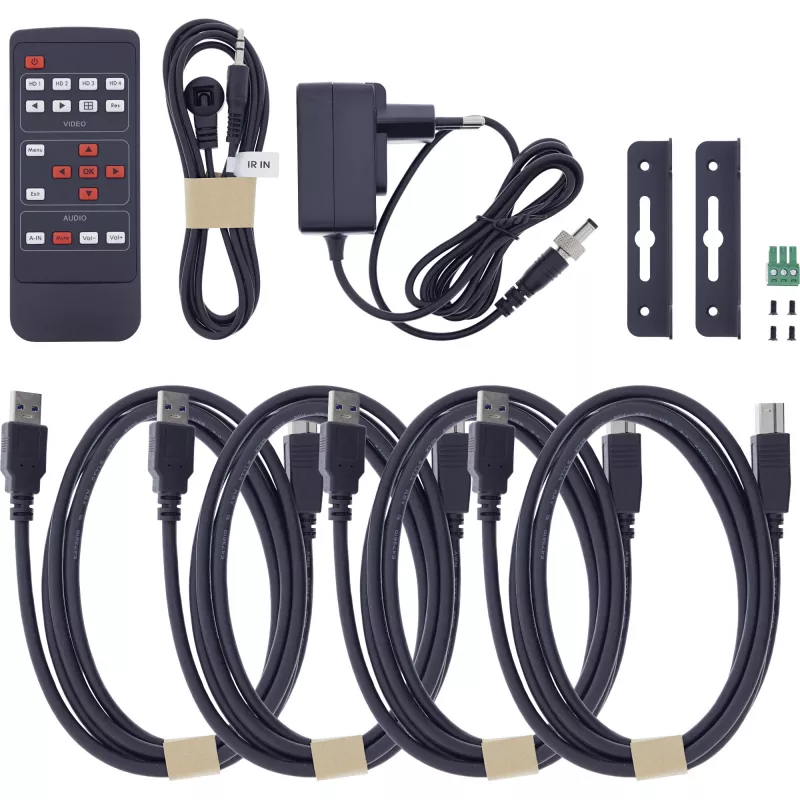

• Scope of delivery: 1 × InLine KVM switch, 1 × IR remote control, 1 × IR receiver cable (38 kHz, 1.5 m), 4 × USB cables (USB 3.2 Gen.1, USB-A to USB-B, 1.8 m), 1 × 12 V/2.5 A power supply with lock, 1 × 3-pin terminal connection plug, 2 × mounting brackets, 4 × screws (KM3×4), 1 × user manual in German/English
• Type 1: KVM switch
• Number of CPU: 4
• Incl. KVM cableset: Yes
• Type 2: 4-fold HDMI KVM
• Number of consoles: 1
• Audio per CPU: 3.5mm jack x1
• Screen connectors per console: 1
• Video outputs per console: HDMI x1
• Periphery inputs per CPU: USB-B female x1
• Video inputs per CPU: HDMI x1
• USB peripherals: Yes
• USB specification: USB 3.2 Gen.1
• Article width: 10cm
• Article length: 22cm
• Article height: 4.5cm
• Complies with HDMI standard: 2.1
• Manufacturer No.: 57885I
• EAN Barcode: 4043718344321
• Country of origin: Taiwan
