InLine 57885E Διακόπτης KVM τοποθέτηση σε rack μαύρο

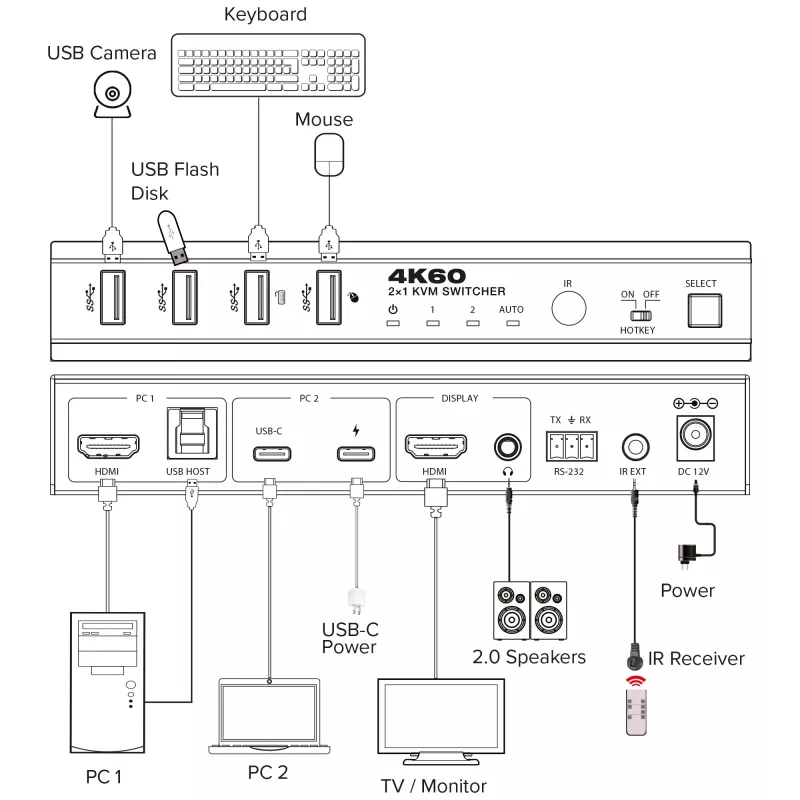

The InLine 57885E KVM switch lets you operate two devices—one via HDMI and one via USB-C—using a single monitor, keyboard, and mouse. It supports video output up to 4K at 60 Hz with 4:4:4 colour sampling and HDR formats including Dolby Vision and HDR10+. Switching is possible via hotkey, IR remote control, front button, or RS-232.

Key features

• 2-way switching between HDMI and USB-C devices
• 4K@60Hz and 2K@144Hz video output
• HDR, HDR10, HDR10+, Dolby Vision, HLG support
• 4 USB 3.2 Gen.1 ports for peripherals
• USB-C Power Delivery (PD 3.0) charging function
• Control via hotkey, IR remote, front button, or RS-232
• No driver installation required

Specifications

• Brand: InLine
• MPN: 57885E
• HDMI input: 1 × HDMI (type A, 19-pin)
• USB-C input: 1 × USB-C (AV signal), 1 × USB-C (charging function, PD 3.0)
• HDMI output: 1 × HDMI (type A, 19-pin)
• USB ports: 4 × USB 3.2 Gen.1 (USB-A), 1 × USB host (USB-B)
• RS-232: 3-pin terminal connection
• IR EXT: 3.5 mm stereo jack (38 kHz)
• Audio output: 3.5 mm stereo jack (PCM 2.0CH)
• Resolution: up to 4K@60Hz, 2K@144Hz
• Colour depth: 8 / 10 / 12 bits
• Colour spaces: RGB 4:4:4, YCbCr 4:4:4, 4:2:2, 4:2:0
• HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
• HDMI version: HDMI 2.0
• DP compatibility: DP 1.4 (for USB-C input)
• HDCP compatibility: HDCP 2.3
• Supported audio formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
• Latency: no video or audio delay
• CEC support: yes
• ESD protection: ±8 kV air / ±4 kV contact
• Housing: metal, black
• Dimensions: 175 × 100 × 30 mm
• Weight: 505 g
• Operating temperature: 0–40 °C
• Storage temperature: –20–60 °C
• Humidity: 20–90% (non-condensing)
• Recommended cable lengths HDMI: up to 5 m (4K@60Hz), up to 10 m (1080p)
• Recommended cable lengths USB-C: up to 1.5 m
• External power supply: 100–240 V AC, 50/60 Hz input; 12.0 V DC, max. 1.0 A, 12.0 W output
• Average operating efficiency: 85.23%
• Efficiency at low load (10%): 78.53%
• Power consumption at zero load: 0.09 W
• Inputs x outputs: 2x4
• Complies with HDMI standard: 2.0
• Article type: USB switch
• Article height: 3.0cm
• Article width: 10cm
• Country of origin: Taiwan
