InLine 57885C Διακόπτης KVM τοποθέτηση σε rack μαύρο

The InLine 57885C KVM switch lets you control two computers with one mouse, keyboard, and HDMI display. It supports resolutions up to 8K@60Hz and 4K@144Hz, with HDR formats including Dolby Vision and HDR10+. Switch between systems via front buttons, hotkeys, IR remote, or RS-232.

Key features

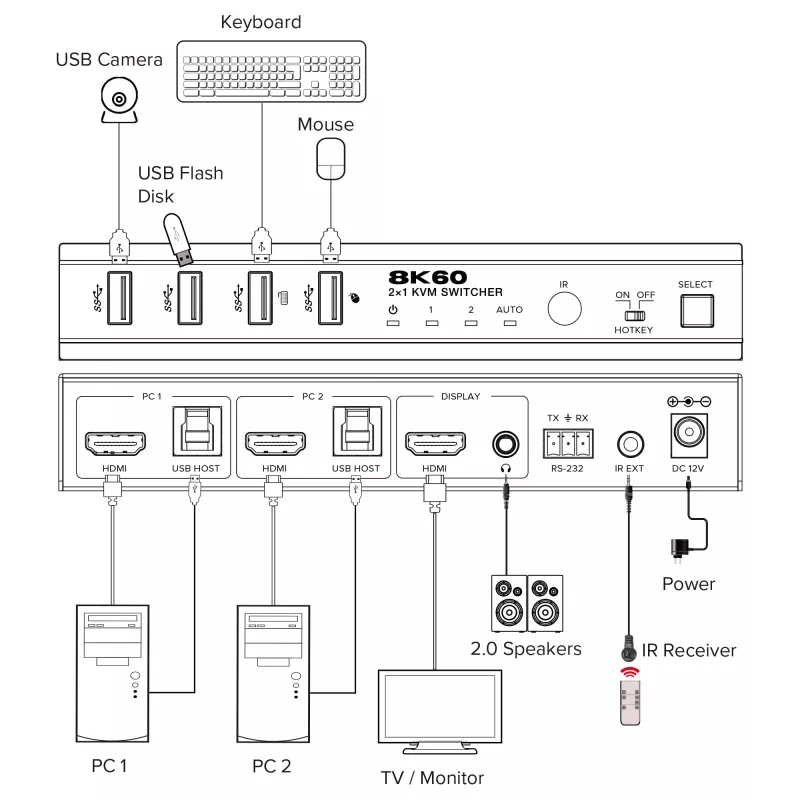

• Control two computers with one mouse, keyboard, and HDMI display
• Supports up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz
• HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
• HDMI 2.1 with HDCP 2.3, CEC, and no video/audio latency
• 4 × USB 3.2 Gen.1 ports for sharing peripherals
• Switching via button, hotkey, IR remote control, or RS-232
• ESD protection: ±8 kV air / ±4 kV contact

Specifications

• Brand: InLine
• MPN: 57885C

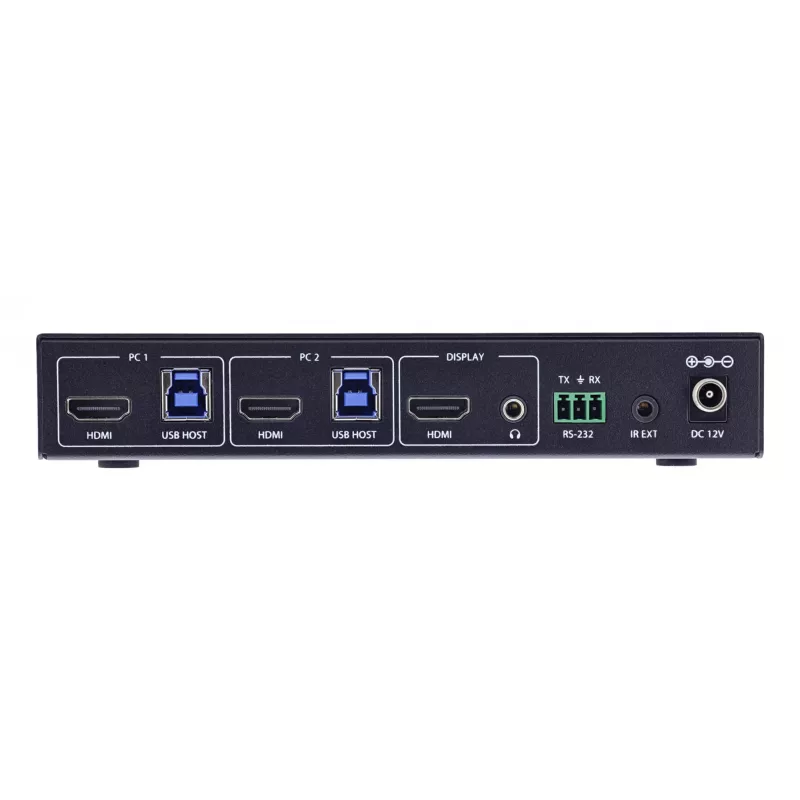

• HDMI inputs: 2 × HDMI (type A, 19-pin)
• HDMI output: 1 × HDMI (type A, 19-pin)
• Video resolution: up to 8K@60 Hz, 4K@120 Hz/144 Hz, 1080P@240 Hz
• HDMI standard: HDMI 2.1
• HDCP compatibility: HDCP 2.3
• Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
• Colour depth: 8, 10, 12 bits
• Video/audio latency: none
• CEC support: yes
• Audio formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
• Audio output L/R: PCM 2.0CH (3.5 mm stereo)
• USB ports: 4 × USB 3.2 Gen.1 (USB-A), 2 × USB Host (USB-B)
• Supported USB speeds: USB 3.2 Gen.1 (with hotkey OFF), USB 1.1 (with hotkey ON)
• RS-232: 3-pin terminal connection
• IR EXT: 3.5 mm jack socket (38 kHz)
• Dimensions: 175 × 100 × 30 mm
• Weight: 506 g
• Housing: metal, black
• Operating ambient temperature: 0–40 °C
• Storage ambient temperature: –20–60 °C
• Humidity: 20–90 % RH (non-condensing)
• ESD protection: ±8 kV air / ±4 kV contact
• Recommended HDMI cable lengths: Up to 2 m: 8K / 4K@120Hz; Up to 5 m: Ultra HDMI 2.1; Up to 10 m: 1080p with standard cable
• External power supply: External plug-in power adapter with lock
• Input voltage: 100–240 V AC, 50/60 Hz
• Output voltage: 12.0 V DC
• Output current: max. 1.0 A
• Output power: 12.0 W
• Average efficiency in operation: 85.23%
• Efficiency at low load (10%): 78.53%
• Power consumption at zero load: 0.09 W

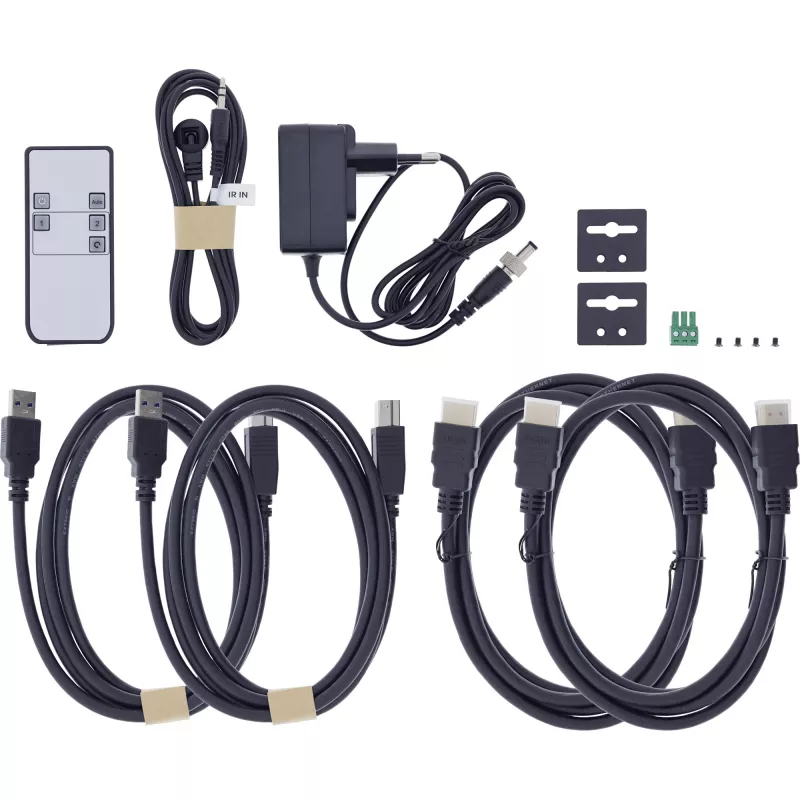

• Scope of delivery: 1 × InLine® KVM switch, 2-port, HDMI, 8K60Hz; 1 × IR remote control; 1 × IR receiver cable (1.5 m, 38 kHz); 2 × HDMI cable (1.5 m); 2 × USB 3.2 Gen.1 cables (1.8 m, USB-A to USB-B); 1 × 12 V/1 A power supply with lock and country adapters; 1 × 3-pin terminal connection plug; 2 × mounting brackets; 4 × screws (KM3×4); 1 × user manual in German/English
• Complies with HDMI standard: 2.0
• Article type: Switch
• Article height: 3.0cm
• Article length: 10cm
• Manufacturer information: INTOS ELECTRONIC AG, Siemensstrasse 11, 35394 Gießen, Deutschland, [email protected]
• Country of origin: Taiwan
