HQM USV AT-UPS1200R-RACK 1200 VA Line-Interactive Rackmount 2U

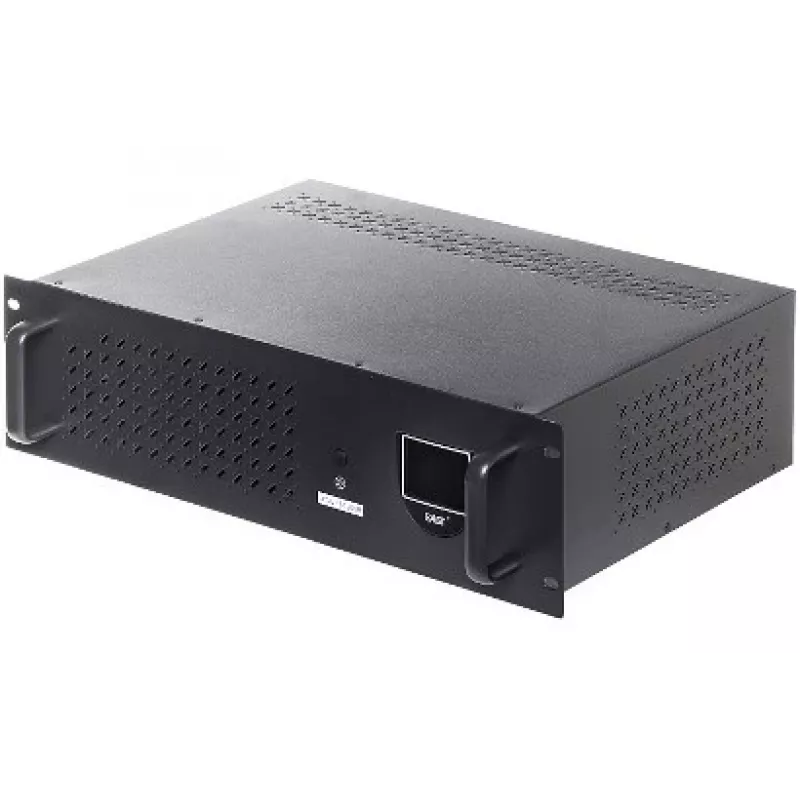

The HQM AT-UPS1200R-RACK is a reliable line-interactive UPS designed to protect critical equipment from power disturbances. With 1200 VA / 720 W capacity and a 2U rackmount form factor, it is ideal for servers, network devices, and telecommunications equipment. This UPS provides simulated sine wave output during battery operation, ensuring compatibility with a wide range of power supplies.

Advantages

Automatic voltage regulation (AVR) stabilizes output voltage without switching to battery, extending battery life. The included ViewPower software enables remote monitoring and management via USB or RS-232. An SNMP slot allows optional network management. Fast recharge time of 4-6 hours to 90% capacity ensures quick readiness.

Suitable for

• Server rooms and network cabinets
• Telecommunications equipment
• Industrial automation systems
• Security and surveillance systems

Key specifications

• UPS Topology: Line-Interactive
• Apparent Power: 1200 VA
• Active Power: 720 W
• Form Factor: Rackmount 2U
• Input Voltage: 230V AC
• Output Voltage: 230V AC
• Output Waveform (Battery Mode): Simulated Sine Wave
• Transfer Time: 2-6 ms
• Output Outlets: 4x IEC C13
• Battery Type: Sealed Lead Acid, Maintenance-Free
• Battery Configuration: 2x 12V / 7Ah
• Recharge Time: 4-6 hours to 90%
• Communication Ports: USB, RS-232
• SNMP Slot: Yes
• Noise Level: < 40 dB

Recommendations

For optimal performance, pair with an optional SNMP card for network monitoring. Ensure proper ventilation in the rack. This UPS is not recommended for devices with high inrush current or active PFC power supplies without prior compatibility check.
