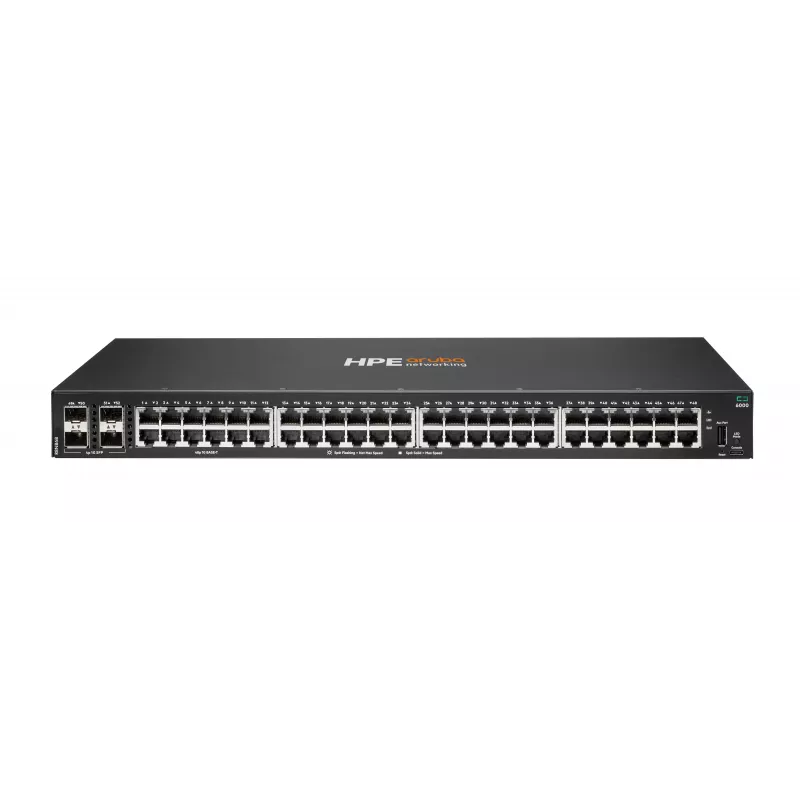

HPE Aruba Networking CX 6000 48p 10M/100M/1G 4p SFP 1G Switch

For growing businesses that need dependable, high-density connectivity without the noise or complexity of traditional enterprise switches, the HPE Aruba Networking CX 6000 delivers a fanless, Layer 2 managed solution with 48 Gigabit Ethernet ports and four 1G SFP uplinks. Its modern AOS-CX operating system brings automation, programmability, and resilience to the access layer, making it a standout choice for branch offices, classrooms, and open workspaces.

Highlights

• 48x 10/100/1000BASE-T RJ-45 ports for high-density device connectivity
• 4x 1G SFP ports for fibre uplinks or stacking
• Fanless design for silent operation in noise-sensitive environments
• 104 Gbps switching capacity and 77.3 Mpps forwarding rate
• Dual-core ARM Cortex A9 processor with 4 GB DDR3 memory
• Aruba AOS-CX operating system with cloud, CLI, and web management
• Robust Layer 2 feature set including 256 VLANs, ACLs, and QoS
• 1U rack-mountable form factor with included mounting kit

In daily use

Deploy the CX 6000 at the edge of your network and connect PCs, IP phones, access points, and IoT devices with confidence. The switch's fanless cooling means it can be installed in open areas without distracting hum, while its fixed internal power supply simplifies cabling. Manage it through Aruba Central for cloud-based monitoring, or use the intuitive web GUI and CLI for local control. Advanced security features such as DHCP snooping, port security, and RADIUS/TACACS+ authentication protect your network from unauthorised access, and jumbo frame support up to 9198 bytes ensures smooth performance for large data transfers.

Full specifications

• Switch type: Managed Layer 2
• Ports: 48x 1GbE RJ-45, 4x 1GbE SFP
• PoE support: No
• Switching capacity: 104 Gbps
• Forwarding rate: 77.3 Mpps
• Latency (1 Gbps): 1.5 µs
• VLANs: 256
• Jumbo frame: up to 9198 bytes
• MAC address table: 8192 entries
• Processor: Dual Core ARM Cortex A9 @ 1016 MHz
• Memory: 4 GB DDR3
• Flash: 16 GB eMMC
• Operating system: Aruba AOS-CX
• Management: Aruba Central, CLI, Web GUI, SNMP
• Power supply: Internal, fixed
• Cooling: Fanless
• Rack mountable: Yes, 1U
• MTBF: 1,000,000+ hours
• Security: ACLs, DHCP snooping, port security, RADIUS/TACACS+

Final note

With its silent operation, enterprise-grade features, and cloud-ready management, the HPE Aruba Networking CX 6000 is an ideal access switch for modern, high-density network environments.
