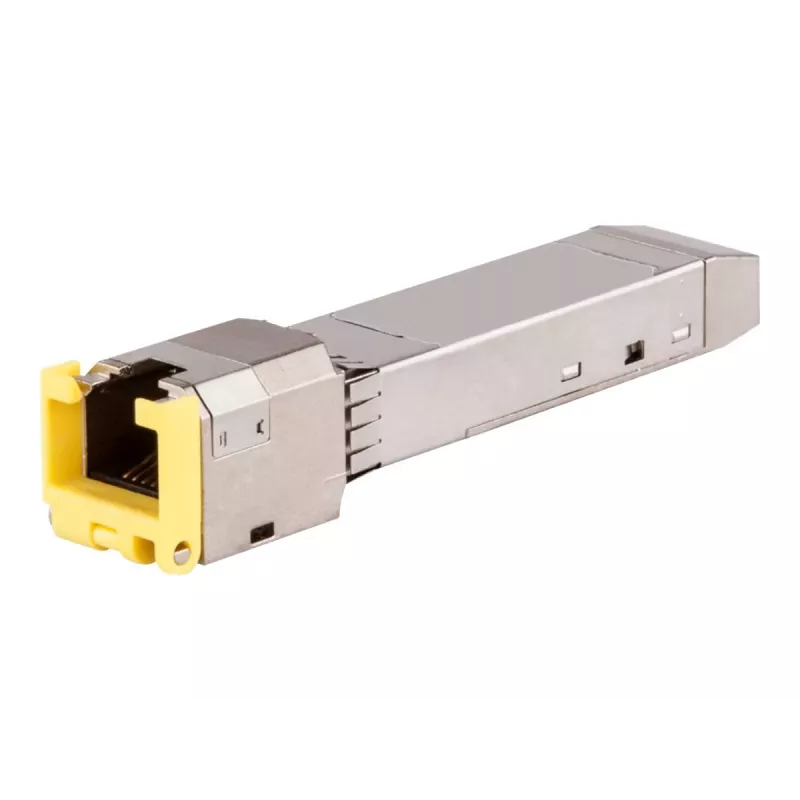

HPE Aruba 10G SFP+ RJ-45 Transceiver-Modul (JL563B)

The HPE Aruba 10G SFP+ RJ-45 Transceiver Module (JL563B) is a high-performance, hot-pluggable SFP+ transceiver designed for 10 Gigabit Ethernet connectivity over copper cabling. It enables seamless integration of 10GBASE-T ports into Aruba switches, supporting distances up to 30 meters on Cat6A or Cat7 cable. Ideal for data centers and enterprise networks requiring high-speed, cost-effective copper connections.

Advantages

This transceiver module offers reliable 10 Gbps data transfer over existing copper infrastructure, reducing the need for fiber optic cabling. Its hot-swappable design allows for easy installation and maintenance without network downtime. With low power consumption of just 2.5 W, it helps optimize energy efficiency in network environments.

Suitable for

• Enterprise and data center networks requiring 10GBASE-T connectivity
• Aruba switches with SFP+ ports
• Short-range copper connections up to 30 meters
• Upgrading existing Cat6A/Cat7 cabling to 10 Gigabit speeds

Key specifications

• Device Type: Transceiver module
• Form Factor: SFP+
• Connectivity Technology: Wired
• Cabling Type: Copper
• Data Transfer Rate: 10 Gbps
• Max Transfer Distance: 30 m (98 ft)
• Connector Type (Module Side): SFP+
• Connector Type (Cable Side): RJ-45
• Cabling Standard Supported: Cat6A / Cat7 (up to 30m), Cat6 (up to 10m)
• Duplex Mode: Full-duplex
• Power Consumption (Typical): 2.5 W
• Hot Swappable: Yes
• Standards Compliance: IEEE 802.3ae, IEEE 802.3an (10GBASE-T)
• Compatibility: Aruba switches with SFP+ ports
• Operating Temperature: 0 to 70 °C (32 to 158 °F)
• Storage Temperature: -40 to 85 °C (-40 to 185 °F)
• Operating Humidity: 0 to 95% (non-condensing)

Recommendations

For optimal performance, use with Cat6A or Cat7 cabling. Ensure your Aruba switch supports SFP+ 10GBASE-T modules. This transceiver is not compatible with fiber optic cables.
