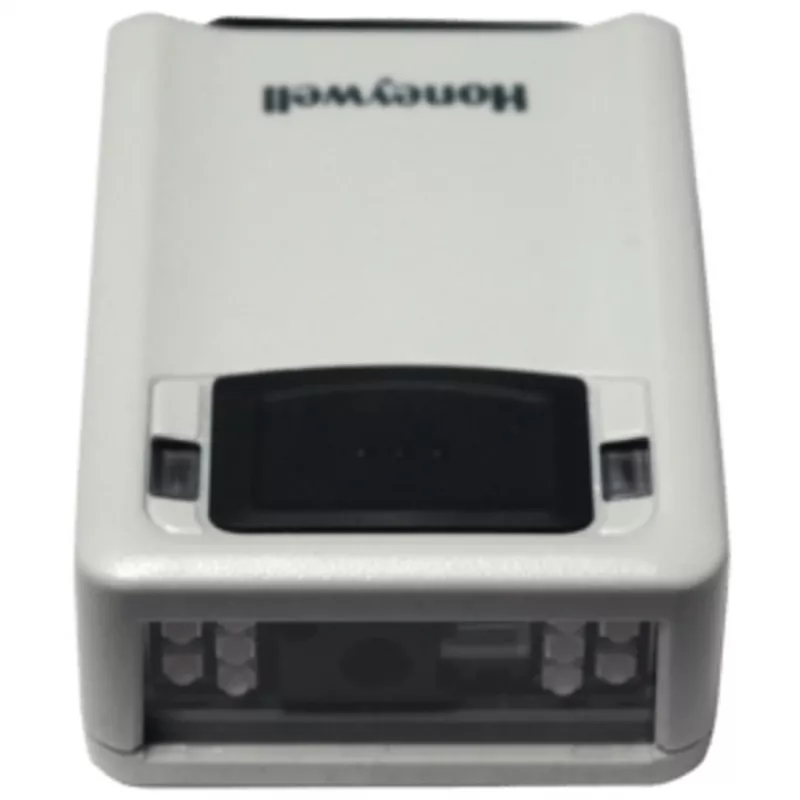

Honeywell Vuquest 3320g Σταθερός σαρωτής barcode 1D/2D USB Kit Μαύρο

The Honeywell Vuquest 3320g is a high-performance fixed-mount barcode scanner designed for fast and reliable scanning of 1D and 2D barcodes, including PDF417, Data Matrix, and QR codes. With its advanced photodiode technology and area image sensor, it delivers exceptional read rates even on damaged or poorly printed codes. This USB kit includes the scanner and necessary cables for easy integration into point-of-sale, kiosk, and document processing systems.

Advantages

• Versatile scanning: Reads all common 1D and 2D symbologies, including PDF417 and stacked codes.
• Durable design: Withstands 1.5 m drops to concrete and features IP53 sealing against dust and water.
• High motion tolerance: Scans up to 270 cm/s for fast-moving items.
• Wide operating range: Works in light conditions from 0 to 100,000 lux.
• Easy setup: USB interface with multiple emulation modes (HID Keyboard, Serial, IBM SurePOS).

Suitable for

• Retail point-of-sale (POS) systems
• Self-service kiosks and vending machines
• Document scanning and processing
• Healthcare and laboratory identification
• Logistics and warehouse automation

Key specifications

• Scanner type: Fixed barcode scanner
• Sensor: Area image (640 x 480 pixels)
• Light source: Aiming: 617 nm red LED; Illumination: 625 nm red LED
• Scan angle: Horizontal 41.4°, Vertical 32.2°
• Print contrast: 20% minimum reflectance difference
• Interface: USB (HID Keyboard, Serial, IBM SurePOS), RS232, Keyboard Wedge
• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to 60°C
• Humidity: 0% to 95% non-condensing
• Drop specification: 1.5 m to concrete
• Environmental sealing: IP53
• Input voltage: 4.0 to 5.5 VDC
• Operating power: 2.0 W (400 mA @ 5 VDC)
• Dimensions (L x W x H): 8.3 x 8.3 x 15.2 cm
• Weight: 0.2 kg
• Colour: Black

Recommendations

For optimal performance, ensure the scanner is mounted at the recommended distance and angle for your application. The USB kit includes a quick start guide and stand. Compatible with Windows, Linux, and mobile operating systems via USB.
