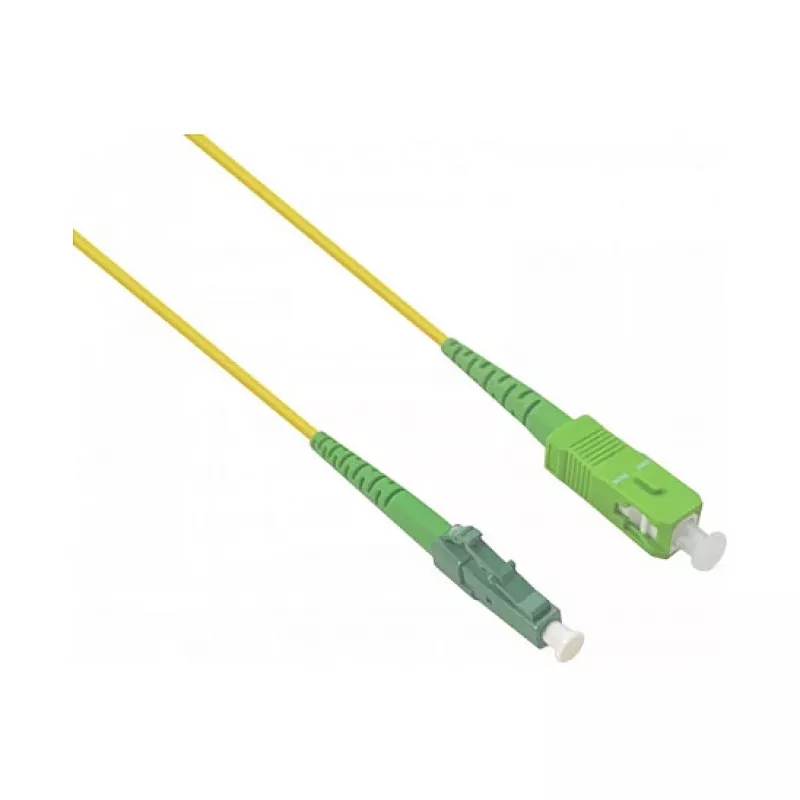

HELOS Καλώδιο Patch Οπτικών Ινών OS2 Simplex LSZH 2,0mm SC/APC σε LC/APC κίτρινο 20m

The HELOS LWL OS2 Simplex Patch Cable is a high-performance single-mode fiber optic patch cable designed for reliable data transmission in telecommunications, data centers, FTTH, and LAN networks. With a length of 20 meters and LSZH (Low Smoke Zero Halogen) jacket, it ensures safety and durability in indoor installations.

Advantages

Low insertion loss and high return loss guarantee excellent signal integrity. The 2.0mm cable diameter offers flexibility while maintaining robust performance. LSZH jacket reduces toxic fumes in case of fire, making it ideal for confined spaces.

Suitable for

• Data centers
• Telecommunications networks
• FTTH (Fiber to the Home)
• Local Area Networks (LAN)

Key specifications

• Fiber Mode: Single-mode OS2 (G.657.A1 / G.652.D compatible)
• Fiber Count: Simplex (1 fiber)
• Connectors: SC/APC to LC/APC
• Length: 20 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 2.0 mm
• Color: Yellow
• Insertion Loss: ≤ 0.2 dB (typical)
• Return Loss: ≥ 60 dB (typical)
• Ferrule Material: Ceramic
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Minimum Bend Radius: 10 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is suitable for indoor use only.
