HellermannTyton HelaCon Plus Mini HCPM-5 5-πολικός σύνδεσμος καλωδίων push-in, μπλε/διαφανές, συσκευασία 10 τεμ. 148-90057

The HellermannTyton HelaCon Plus Mini HCPM-5 is a 5-pole push-in wire connector that stands out for its compact size and transparent housing, allowing immediate visual confirmation of proper conductor insertion. Unlike traditional twist-on connectors, it requires no tools for solid conductors and speeds up installation in junction boxes, luminaires, and control cabinets.

Highlights

• 5-pole push-in termination for solid and fine-stranded conductors from 0.5 mm² to 2.5 mm² (AWG 20–14)
• Transparent polycarbonate housing with blue tint for quick inspection of the connection point
• Rated for 450 V and 24 A, suitable for lighting and power distribution circuits
• Releasable for fine-stranded conductors using a screwdriver, simplifying rework
• Integrated test point for voltage testing without removing the connector

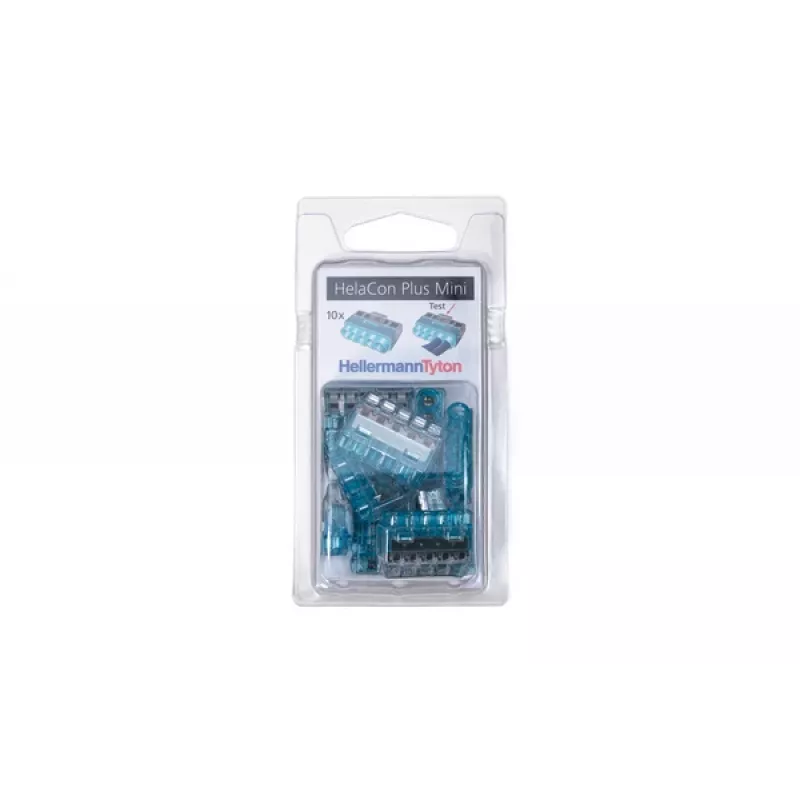

• Supplied in a blister pack of 10 pieces

In daily use

Strip the conductor to 11 mm, insert it fully into the push-in port, and the stainless steel spring clamp grips it securely. The transparent body lets you see that the stripped end is fully seated. For fine-stranded wires, the release mechanism allows easy removal. The compact footprint is ideal for tight spaces, and the connector's V-0 flammability rating supports use in demanding environments.

Full specifications

• Number of poles: 5
• Connection type: Push-in
• Conductor type: Solid and fine-stranded
• Conductor cross-section: 0.5–2.5 mm² (AWG 20–14)
• Rated voltage: 450 V
• Rated current: 24 A
• Housing material: Polycarbonate (PC)
• Contact material: Copper alloy
• Colour: Blue / Transparent
• Operating temperature: -30 °C to +85 °C
• Flammability rating: UL94 V-0
• Stripping length: 11 mm
• Test point: Yes
• Releasable: Yes (for fine-stranded conductors)
• Packaging: Blister pack, 10 pieces

Final note

With its combination of tool-free solid-conductor termination, visual verification, and generous ratings, the HelaCon Plus Mini HCPM-5 is a reliable choice for professional electrical installations.
