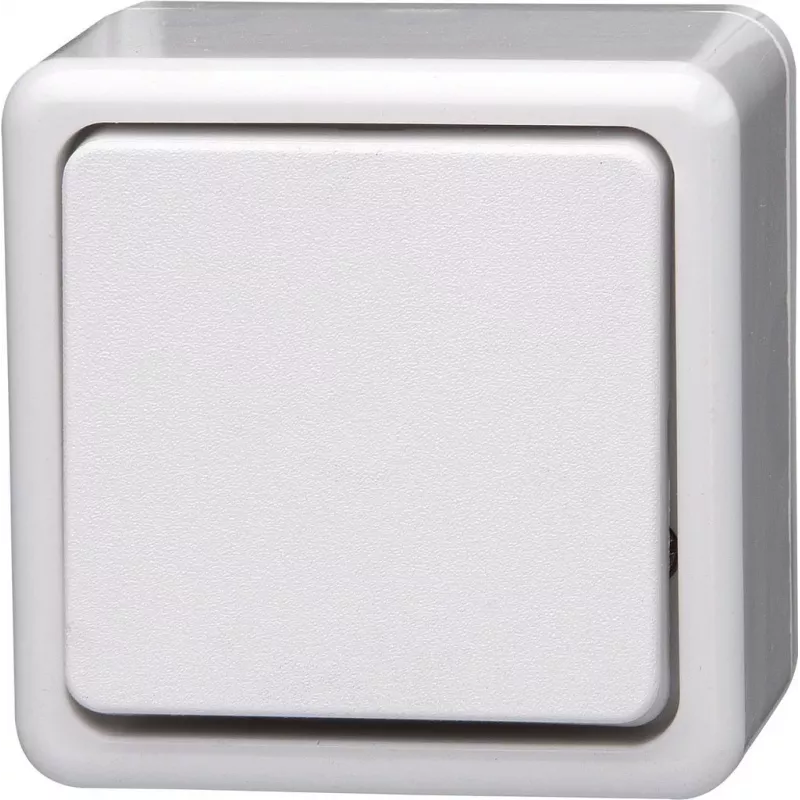

HEINRICH KOPP Διακόπτης αλλαγής επίτοιχος Standard αρκτικό λευκό 513702008

Controlling a light from three or more locations requires a special switch that can reverse the current path between two traveler wires. The HEINRICH KOPP Intermediate Switch (model 513702008) solves this by providing a reliable crossover switching function in a compact surface-mounted design.

Who is it for

Electricians and DIYers who need to add an intermediate switch point to an existing two-way switching circuit, particularly in residential or commercial installations where surface mounting is preferred.

Main features

• Intermediate (crossover) switch function for multi-location lighting control
• Surface-mounted installation with screw terminals
• Arctic white finish blends with standard wall plates
• Rated for 250 V AC, 10 A
• Thermoplastic housing, halogen-free

Specifications

• Switch type: Intermediate switch
• Mounting type: Surface-mounted
• Colour: Arctic white
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals
• Housing material: Thermoplastic
• IP protection class: IP20
• Number of rockers: 1
• Halogen-free: Yes
• Number of terminals: 4
• Actuation type: Rocker/Toggle

Tips

Ensure the circuit is de-energized before installation. The switch is intended for indoor use only.
