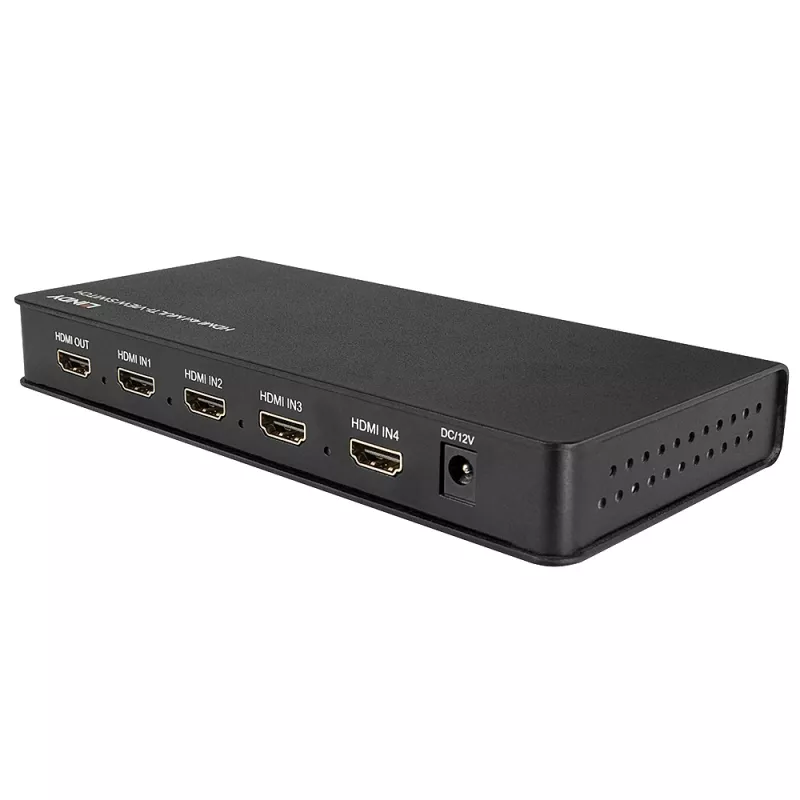

Διακόπτης HDMI Lindy HDMI 4 Port Multi-View Switch

This HDMI 4x1 Multi-View Switch integrates signals from four Full HD sources for simultaneous display on a single monitor. It supports multiple viewing modes, seamless switching without frame loss, and flexible audio/video routing for business and monitoring applications.

Advantages

The switch supports Full HD 1080p on inputs and output with optional downscaling to 720p for legacy displays. Four viewing modes (Quad-View, Full Screen, Picture and Picture, Dual Video) allow versatile monitoring layouts. Independent audio and video switching via front panel or supplied remote enables continuous use of one audio or video source while changing the other. HDCP is always enabled on the output connection to maintain protected content playback.

Key specifications

• Input channels: 4× HDMI (Full HD compatible)
• Output: 1× HDMI (supports 1080p, downscale to 720p)
• Viewing modes: Quad-View, Full Screen, Picture and Picture, Dual Video
• Seamless switching: no frame loss between sources or modes
• Audio/video switching: independent control via remote or front panel
• HDCP: output always enabled

How to use

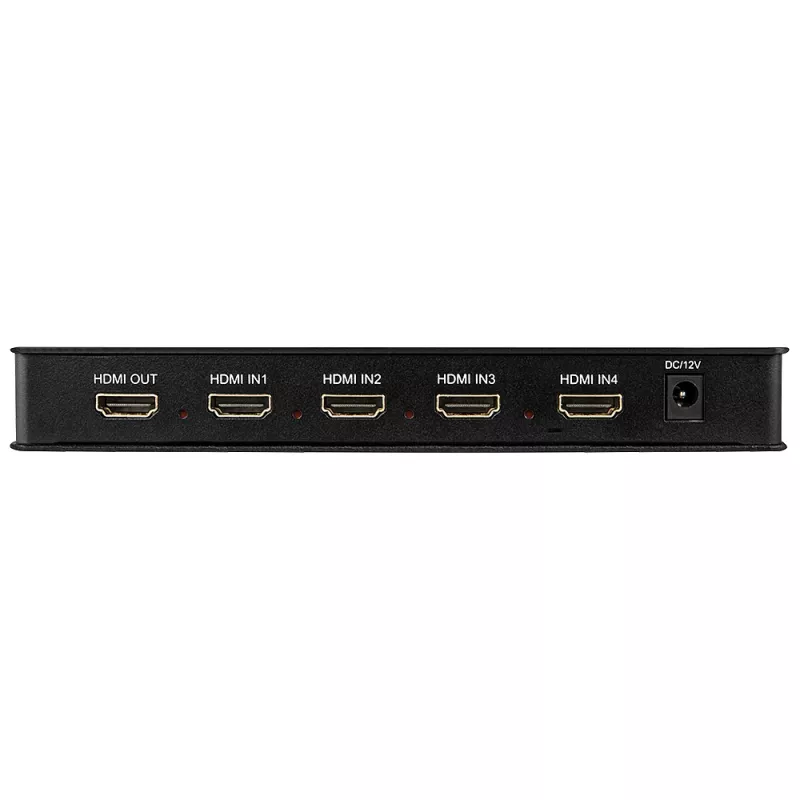

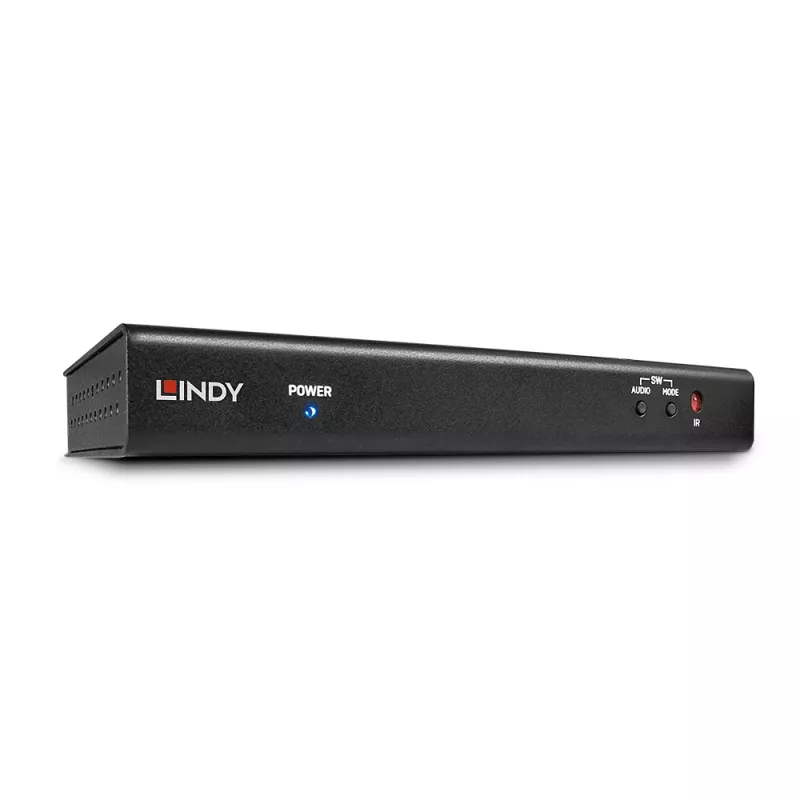

Connect up to four HDMI sources to the switch inputs and connect the monitor to the HDMI output. Use the front panel buttons or the supplied remote control to select viewing modes or switch individual video and audio channels. Choose Quad-View for simultaneous display of all sources, Full Screen to view a single source, Picture and Picture for a main image with an inset, or Dual Video to view two sources side by side. If required, set the output to 720p to match legacy displays.

Recommendations

For reliable operation in professional environments, use high-quality HDMI cables and ensure connected devices support the required resolutions. Remember that HDCP is active on the output, so protected content will only play on compliant displays.
