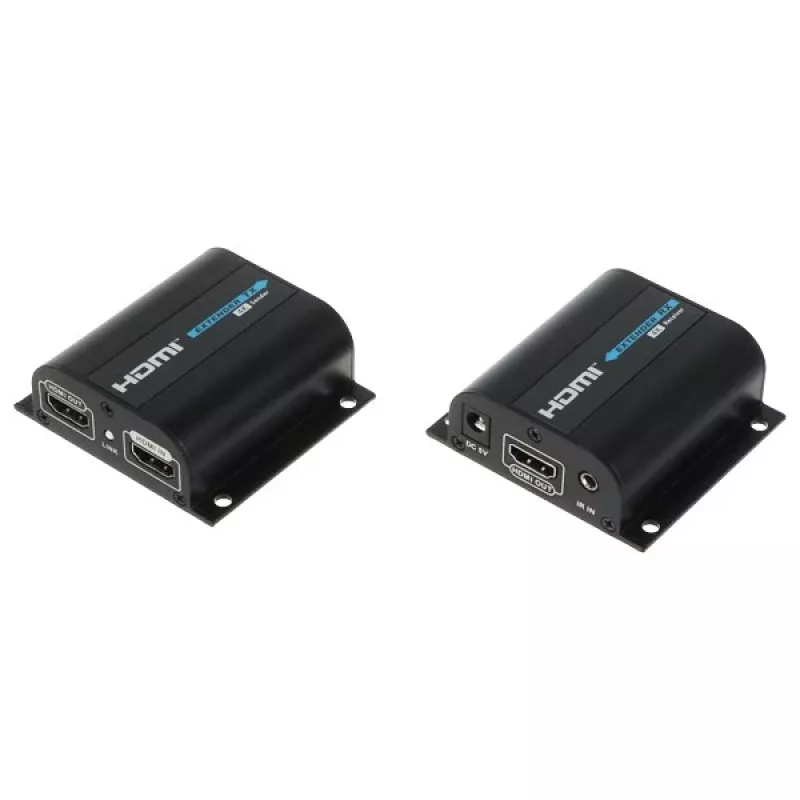

HDMI Extender με splitter SP-EX-6IR-V4

The HDMI Extender with Splitter SP-EX-6IR-V4 is a professional-grade solution for extending and splitting HDMI signals over long distances. It supports Full HD 1080p resolution at 60 Hz and extends signals up to 60 meters over Cat6/Cat6a/Cat7 cables. With IR pass-through and automatic EDID management, it is ideal for home theater, digital signage, and conference room setups.

Advantages

This device combines an extender and splitter in one unit, reducing equipment costs and installation complexity. It supports high-definition audio formats including Dolby TrueHD and DTS-HD, ensuring an immersive audio experience. The metal casing provides durability and effective heat dissipation.

Suitable for

• Home theater systems requiring long-distance HDMI distribution
• Digital signage in retail, hospitality, and corporate environments
• Conference rooms and classrooms needing reliable AV extension

Key specifications

• HDMI Standard: 1.3b
• HDCP: 1.1
• Max Resolution: 1080p (Full HD) at 60 Hz
• Max Extension Distance: 60 m over Cat6/Cat6a/Cat7
• Data Transfer Rate: 6.75 Gbps
• Color Depth: 8/10/12-bit Deep Color
• Audio Formats: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby-AC3, DSD
• IR Pass-through: Yes (20-60 kHz)
• EDID Management: Automatic
• Input: 1x HDMI, 1x IR Blaster
• Output: 1x HDMI, 1x IR Receiver
• Interconnection: 1x RJ45 (TX to RX)
• Power Supply: 2x DC 5V/1A (included)
• Casing Material: Metal

Recommendations

For optimal performance, use high-quality Cat6a or Cat7 cables. Ensure the IR emitter and receiver are properly positioned for reliable remote control operation. This device is not recommended for 4K or HDR content.
