Hager WNC010 επιτοίχιος ενδιάμεσος διακόπτης, σειρά W.1, IP55, γκρι

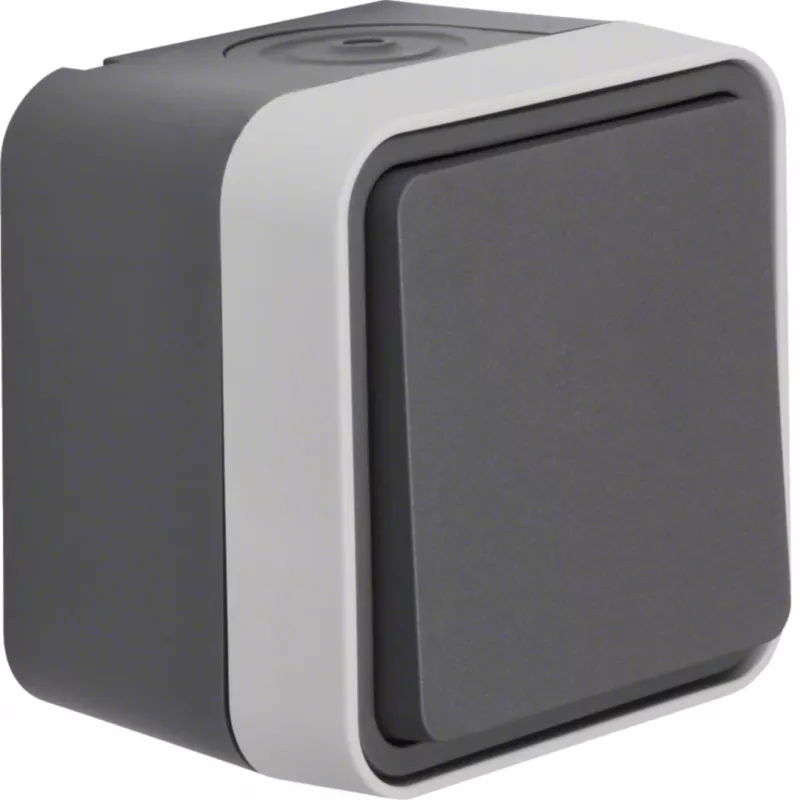

In damp or dusty environments, standard switches often fail prematurely, leading to unsafe conditions and costly replacements. The Hager WNC010 intermediate switch solves this by providing a robust, weather-resistant solution for controlling lighting from three or more locations. Its IP55-rated enclosure protects against water jets and dust ingress, making it ideal for outdoor areas, industrial sites, and other demanding applications.

Who is it for

This switch is perfect for electricians and contractors working on outdoor installations, workshops, warehouses, or any setting where moisture and dust are present. It is also suitable for homeowners who need a reliable switch for garages, basements, or garden lighting circuits.

Main features

• Intermediate (crossover) switch function for multi-way lighting control
• Surface-mounted design for easy installation on walls or panels
• IP55 protection against dust and water jets
• Robust thermoplastic construction, halogen-free
• Rated 10 AX, 250 V AC, suitable for resistive and inductive loads
• Screw terminals accept rigid or flexible conductors from 1.5 to 2.5 mm²
• Complies with EN 60669-1 for safety and performance

Specifications

• Brand: Hager
• Model: WNC010
• MPN: WNC010
• EAN: 3250610101377
• Product type: Intermediate switch
• Mounting type: Surface-mounted
• Series: Hager W.1
• IP rating: IP55
• Colour: Grey
• Number of gangs: 1
• Rated current: 10 AX
• Rated voltage: 250 V AC
• Connection type: Screw terminals
• Terminal capacity: 1.5 - 2.5 mm² (rigid and flexible)
• Material: Thermoplastic
• Halogen-free: Yes
• Operating temperature: -25 to 45 °C
• Standards: EN 60669-1

Tips

For outdoor installations, ensure the switch is mounted on a flat, stable surface and use appropriate cable glands to maintain the IP55 rating. When wiring, strip conductors to the recommended length and tighten screw terminals to the specified torque to avoid loose connections.
