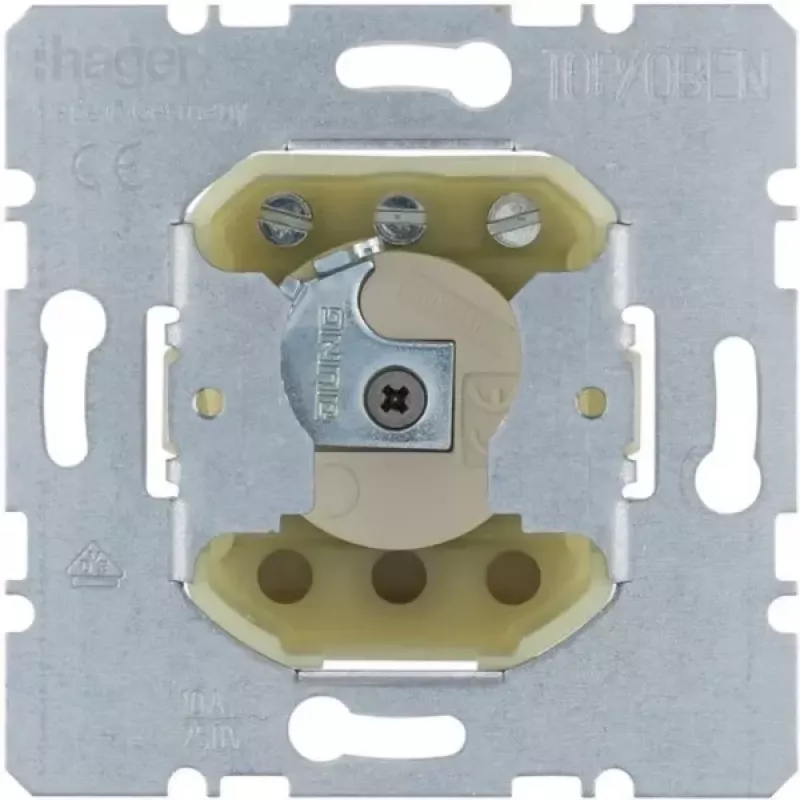

Hager Μηχανισμός διακόπτη ρολών με κλειδί 1-πολικός χωνευτός WDE383110

In commercial and residential buildings where blinds or shutters need controlled operation, the Hager Jalousie key switch insert provides a secure manual override. The momentary switching action ensures the drive moves only while the key is held, preventing accidental continuous operation. It is installed flush-mounted in a standard wall box and requires a compatible Hager central plate and frame (e.g., Kallysto or Systo series) for a complete installation.

Key specifications

• Product type: Jalousie key switch insert
• Switching function: Momentary (taster)
• Number of poles: 1-pole
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals
• Installation type: Flush-mounted
• Material: Thermoplastic, halogen-free
• IP protection class: IP20
• Switching principle: Changeover contact
• Key removal position: Neutral/stop position
• Mounting depth: approx. 32 mm
• Operating temperature: -5 to +40 °C

Why choose it

The key-operated design restricts access to authorised personnel, making it suitable for public areas or shared facilities. The changeover contact allows control of motorised blinds, roller shutters, or awnings with up/down commands from a single insert. Halogen-free thermoplastic construction contributes to a safer installation in case of fire.

Ideal use cases

• Manual control of Venetian blinds in offices
• Operation of roller shutters in shops or schools
• Awning control on terraces or storefronts
• Access-restricted switching in public buildings

Good to know

The insert is designed for use with Hager switch ranges such as Kallysto and Systo. Screw terminals provide a reliable connection for solid or stranded conductors. The neutral key removal position ensures the switch returns to a defined off state when the key is released.
