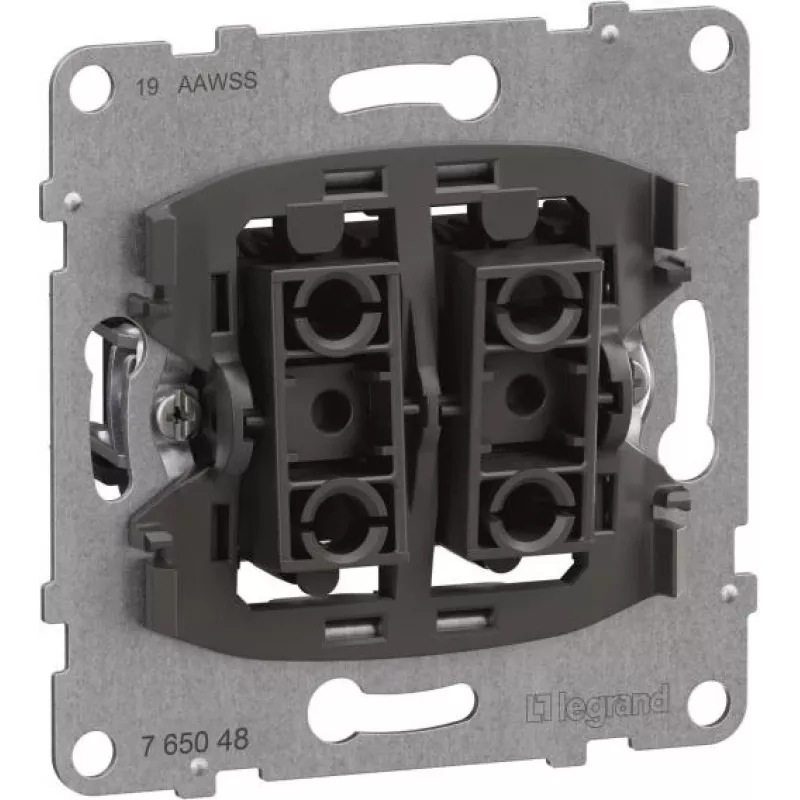

Legrand SEANO 765048 μηχανισμός διακόπτη ρολών/περσίδων για άμεσο έλεγχο μοτέρ

The Legrand SEANO 765048 insert stands apart by delivering direct, momentary control for motorised roller shutters, blinds, and awnings without any intermediate electronics. It pairs a robust mechanical push-button mechanism with a compact flush-mounted design, making it a dependable choice for both new installations and retrofits where simplicity and durability matter most.

Highlights

• Direct control of roller shutters, blinds, and awnings via momentary push-button action
• Flush-mounted insert compatible with the Legrand SEANO range of rockers and frames
• Rated for motor loads up to 6 A (AC-3) and resistive loads up to 10 A (AC-1)
• Two screw terminals for straightforward UP/DOWN motor wiring
• Thermoplastic construction with IP20 protection for indoor use
• Compact installation depth of approximately 32 mm fits standard flush boxes

In daily use

Once installed behind a SEANO rocker, this insert gives you precise, tactile control over window coverings. A short press raises or lowers the shutter; releasing the rocker stops the motor immediately. The mechanical design means no standby power consumption and no complex programming. Screw terminals accept solid or stranded conductors, and the compact body leaves room for wiring even in shallow boxes. It is intended for indoor residential and commercial spaces where direct manual control is preferred over automated or smart systems.

Full specifications

• Brand: Legrand
• Model: 765048
• MPN: 765048
• EAN: 3414972665049
• Series: SEANO
• Product type: Shutter/Blind Push-Button Insert
• Function: Momentary push-button for motor control
• Rated voltage: 250 V AC
• Rated current (motor load): 6 A (AC-3)
• Rated current (resistive load): 10 A (AC-1)
• Number of contacts: 2 (UP/DOWN)
• Connection type: Screw terminals
• Material: Thermoplastic
• IP protection class: IP20
• Mounting type: Flush-mounted
• Installation depth: Approx. 32 mm
• Compatibility: Requires Legrand SEANO rocker and frame (sold separately)

Final note

For electricians and installers, the Legrand SEANO 765048 offers a reliable, no-frills solution for direct shutter control. Its mechanical operation and standard dimensions make it a straightforward component in any SEANO installation, ensuring long-term performance with minimal maintenance.
