Hager L5067 πριτσίνι διαστολής, τρύπα 6 mm, πάχος σύσφιξης 3-8 mm, χωρίς αλογόνα, γκρι

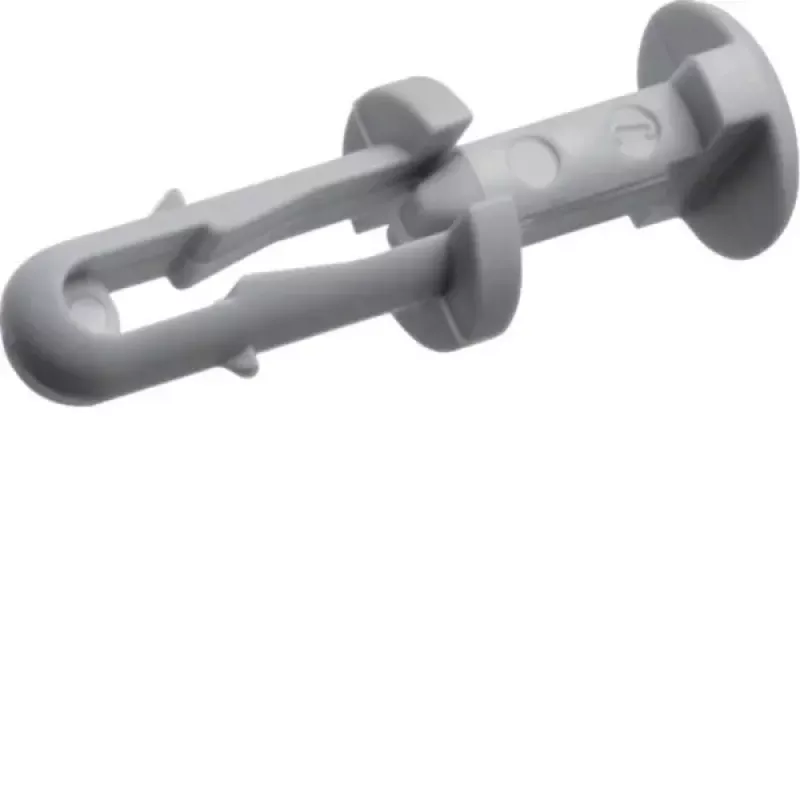

The Hager L5067 expansion rivet is a fastening component designed for secure mounting in various wall materials. Its spreading action provides a reliable hold for cables, conduits, and other components, with a clamping thickness range of 3 to 8 mm.

Advantages

The rivet is made from halogen-free polyamide, ensuring electrical insulation and good corrosion resistance. It is suitable for concrete, brick, plasterboard, and hollow walls, and can be installed quickly by drilling a 6 mm hole and inserting the rivet.

Suitable for

• Fastening cables and conduits
• Mounting components on concrete, brick, plasterboard, and hollow walls
• Applications requiring halogen-free materials

Key specifications

• Product type: Expansion rivet
• Drill hole diameter: 6 mm
• Clamping thickness: 3 - 8 mm
• Material: Polyamide (PA)
• Colour: Grey (RAL 7035)
• Halogen-free: Yes
• Temperature range: -25°C to +80°C
• Fire behavior: UL94 V2

Recommendations

For best results, ensure the drill hole is clean and of the correct diameter. The rivet is not UV resistant, so it is intended for indoor use or protected environments.
