HAGER eHZ πρόσθετος χώρος KU3XBHE με κάλυμμα

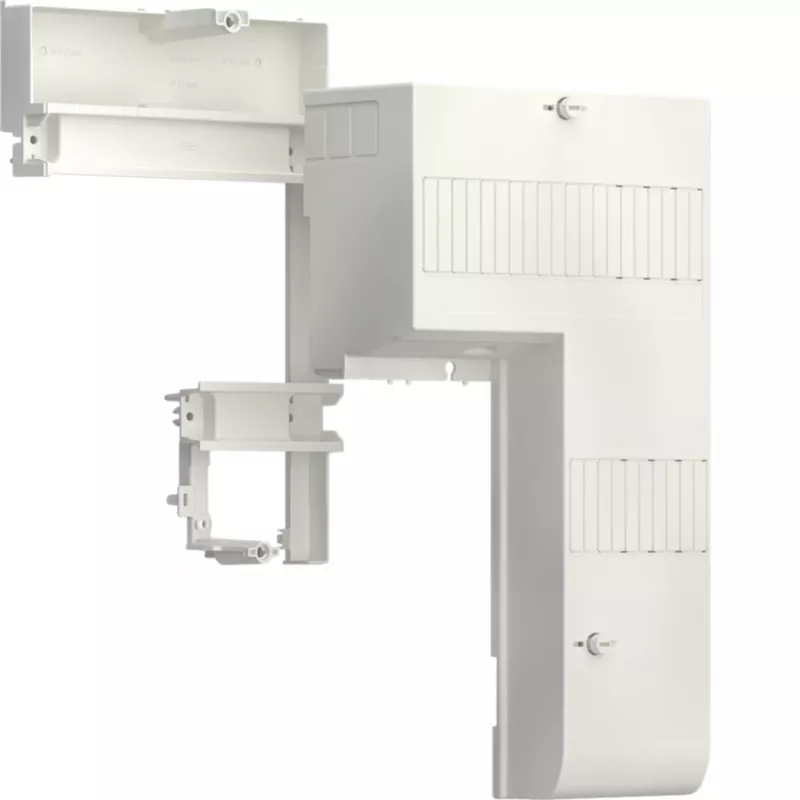

The HAGER eHZ Additional Space KU3XBHE provides a dedicated compartment for an electronic household meter (eHZ) within Hager meter cabinets. Its transparent cover allows visual meter reading while maintaining a sealed, tamper-evident installation. The light grey plastic housing matches standard Hager distribution boards and supports quick system mounting.

Highlights

• Designed for one eHZ meter space (1 ZP)
• Transparent cover with sealing possibility
• Modular system for fast installation
• Compatible with Hager ZB and ZS series meter cabinets
• Self-extinguishing plastic material

In daily use

This additional space simplifies meter integration in residential and commercial electrical installations. The transparent cover allows easy reading without breaking the seal, and the compact 250 x 250 mm footprint fits standard cabinet layouts.

Full specifications

• Product type: eHZ Additional Space
• Application: Meter cabinet / Distribution board
• Number of meter spaces: 1
• Mounting type: System mounting for Hager meter cabinets
• Material: Plastic
• Colour: Light grey (RAL 7035)
• Included components: Transparent cover, sealing possibility
• Dimensions (H x W x D): 250 x 250 x 110 mm
• Field units (ZP): 1 ZP (Zählerplatz)
• Installation depth: 110 mm
• Protection class (internal): IP2XC
• Operating temperature: -5 to +40 °C
• Storage temperature: -25 to +70 °C
• Flammability: Self-extinguishing according to EN 60695-2-11 (Glow-wire test 650°C)
• Series compatibility: Suitable for Hager ZB, ZS series meter cabinets

Final note

A practical solution for integrating eHZ meters into Hager cabinet systems, combining secure sealing with easy readability.
