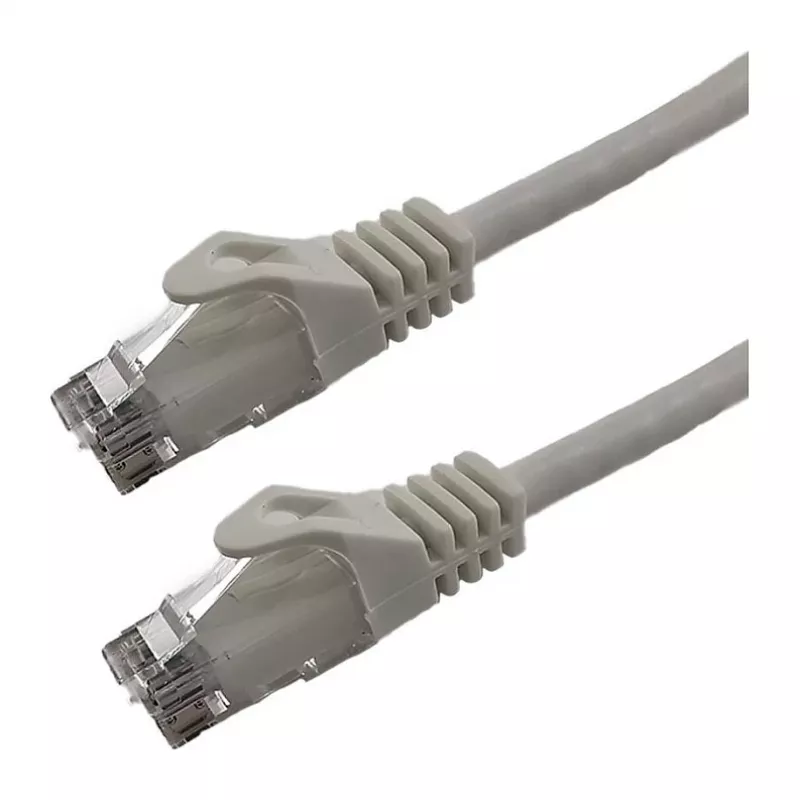

Grafenthal Καλώδιο Patch CAT6A U/UTP CU LSZH 0,25m Λευκό

The Grafenthal Patch Cable CAT6A U/UTP CU LSZH 0.25m White is a high-performance Ethernet patch cable designed for reliable network connections in data centers, server rooms, and professional environments. Manufactured with pure copper conductors and LSZH (Low Smoke Zero Halogen) jacket, this cable ensures excellent signal integrity and safety compliance.

Advantages

This CAT6A patch cable supports data transfer rates up to 10 Gigabit Ethernet (10GBASE-T) with a bandwidth of 500 MHz, making it ideal for high-speed network applications. The U/UTP (Unshielded Twisted Pair) design reduces crosstalk and interference, while the gold-plated RJ45 connectors provide corrosion-resistant, stable connections. The LSZH jacket minimizes toxic smoke and fumes in case of fire, meeting strict safety standards.

Suitable for

• Connecting computers, switches, routers, and patch panels in LAN networks
• Data centers and server rooms requiring high-speed data transmission
• Applications where fire safety is critical (e.g., public buildings, schools, hospitals)
• Short-distance patching in network cabinets (0.25m length)

Key specifications

• Cable Type: Ethernet Patch Cable
• Category: CAT6A (Category 6A)
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.25 m
• Color: White
• Connectors: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Wiring Standard: TIA/EIA-568-B.2
• Conductor Gauge: 26 AWG
• Number of Conductors: 8 (4 twisted pairs)
• Connector Plating: Gold-plated contacts
• Outer Diameter: Approx. 6.0 mm
• Operating Temperature: -20°C to 60°C
• Fire Safety: IEC 60332-1 compliant
• Compatibility: Backward compatible with Cat6, Cat5e, Cat5

Recommendations

For optimal performance, use this cable with CAT6A compatible network equipment. Ensure proper cable management to avoid bending beyond the minimum bend radius. This cable is ideal for short patch connections where space is limited.
