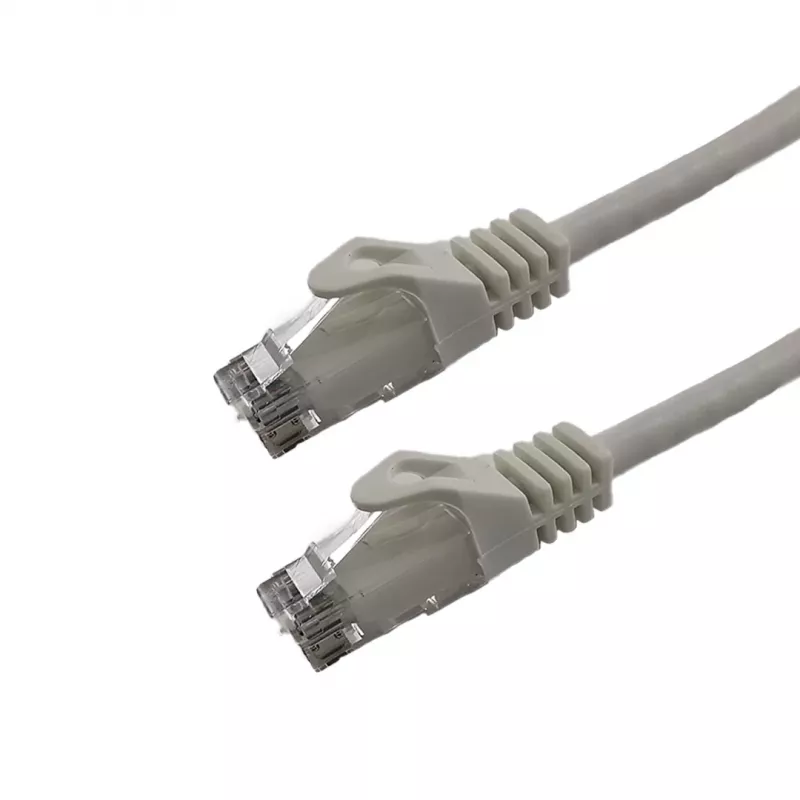

Grafenthal Καλώδιο Patch CAT6A S/FTP CU LSZH 1,00m Λευκό

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 1.00m White is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections. Manufactured with 100% copper conductors and S/FTP shielding, this cable ensures minimal interference and optimal signal integrity. The LSZH (Low Smoke Zero Halogen) jacket makes it ideal for use in environments where fire safety is a priority, such as offices, data centers, and public buildings.

Advantages

This patch cable offers superior data transmission speeds up to 10 Gbps with a bandwidth of 500 MHz, making it suitable for demanding network applications. The snagless boot design protects the RJ45 connectors during installation and removal, while the stranded conductor construction (AWG 26/7) provides flexibility and durability. The cable is fully compliant with TIA/EIA 568B wiring standard and is RoHS and CE certified.

Suitable for

• Connecting computers, switches, routers, and other network devices in LAN environments
• Data centers and server rooms requiring high-speed, reliable connections
• Applications where low smoke and zero halogen materials are required for safety
• 10GBASE-T networks and other high-bandwidth applications

Key specifications

• Cable Type: Patch Cable
• Cable Category: CAT6A (Category 6A)
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 1.0 meter
• Cable Color: White
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Wiring Standard: TIA/EIA 568B
• Conductor Gauge: AWG 26/7 (Stranded)
• Number of Pairs: 4 Twisted Pairs
• Boot Type: Snagless
• Outer Diameter (Approx.): 6.2 mm
• Impedance: 100 Ohm
• Application: LAN, Network, Ethernet
• Certifications: RoHS, CE Compliant
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use this cable with CAT6A compatible network devices. Ensure proper cable management to avoid kinking or sharp bends. This cable is not recommended for outdoor use.
