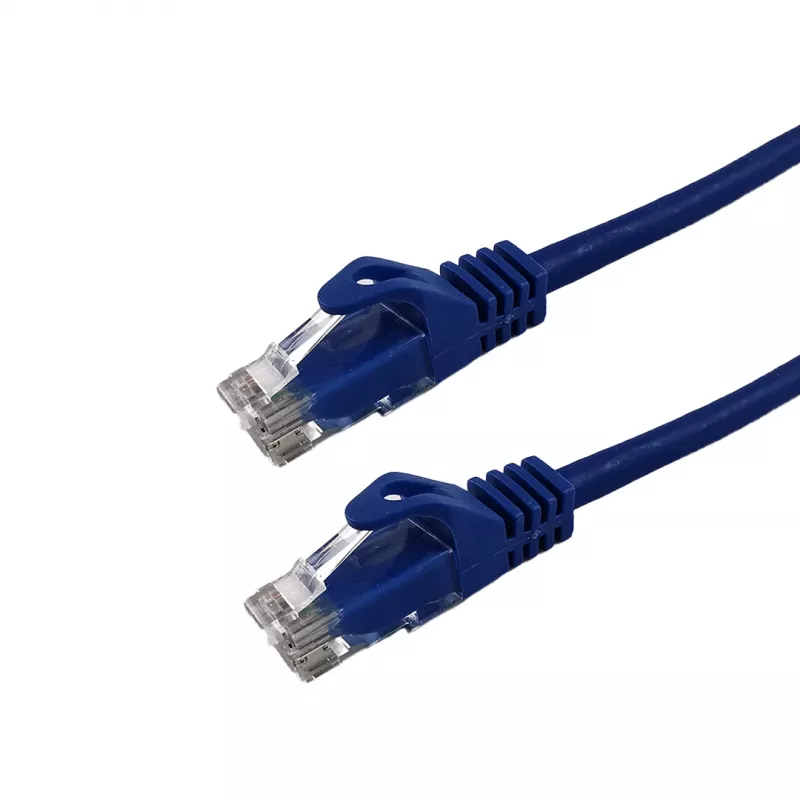

Grafenthal Καλώδιο Patch CAT6 F/UTP CU LSZH 5,00m Μπλε

The Grafenthal Patch Cable CAT6 F/UTP CU LSZH 5.00m Blue is a high-performance Ethernet patch cable designed for reliable network connectivity in data centers, office networks, and home installations. Manufactured with bare copper conductors and F/UTP shielding, this cable ensures excellent signal integrity and reduced electromagnetic interference. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, making it suitable for public and commercial environments.

Advantages

This patch cable offers superior data transmission speeds up to 10 Gigabit Ethernet (10GBASE-T) at 5 meters, with a bandwidth of 250 MHz. The gold-plated RJ45 connectors (50µm) ensure corrosion resistance and optimal contact. Stranded conductor construction provides flexibility for easy routing in tight spaces. Compliance with RoHS and CE standards guarantees environmental and safety compliance.

Suitable for

• Data centers requiring high-speed, reliable connections
• Office networks for workstation and server connectivity
• Home networks for streaming, gaming, and high-bandwidth applications
• Installations where low smoke and halogen-free materials are required

Key specifications

• Cable Type: Ethernet Patch Cable
• Category: CAT6
• Shielding: F/UTP (Foiled/Unshielded Twisted Pair)
• Conductor Material: Bare Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 5.0 meters
• Color: Blue
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Wiring Standard: TIA/EIA 568B
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 10 Gbps
• Conductor Gauge: 26 AWG
• Cable Construction: Stranded
• Outer Diameter: Approx. 6.0 mm
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure that all network components (switches, routers, network cards) support CAT6 standards. This cable is ideal for short to medium distance connections where high data transfer rates are required. Always handle cables with care to avoid damaging the connectors or cable jacket.
