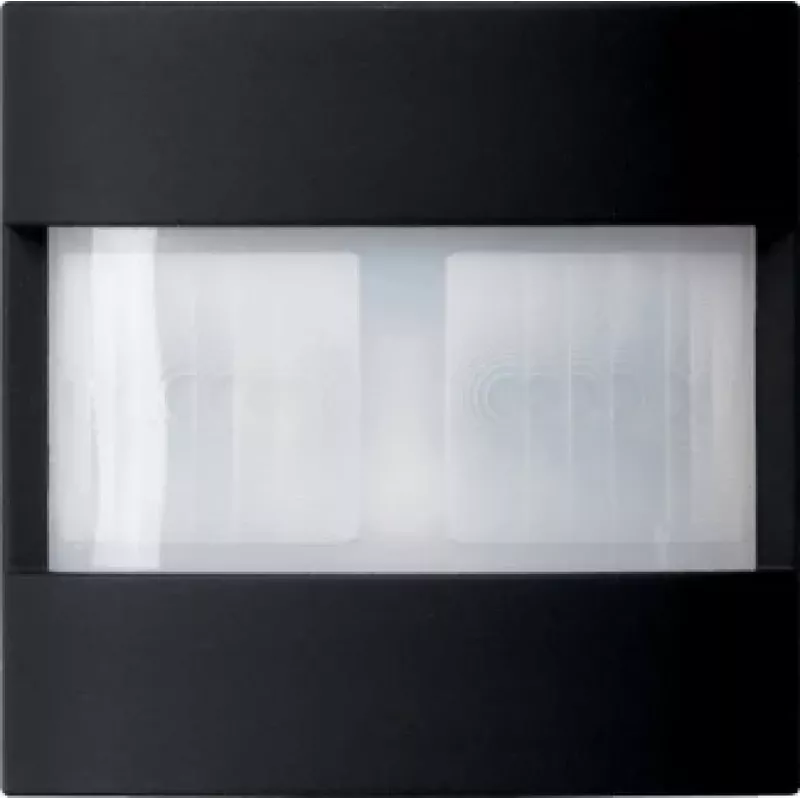

Gira S3000 Μονάδα ανιχνευτή κίνησης 1,10 m Standard System 55 μαύρο 5373005

Detect motion across a 110° field with the Gira S3000 Motion Detector Attachment, engineered for flush-mounted installation at a 1.10 m height. This black System 55 component switches lighting loads up to 2300 W automatically, making it a robust presence detection solution for residential and commercial spaces.

Overview

Part of the Gira S3000 series and designed for the System 55 frame system, this motion detector attachment operates on 230 V AC and supports resistive loads up to 2300 W (10 A). It also handles uncompensated fluorescent lamps up to 1150 VA and LED loads up to 400 W. The detection range extends to approximately 6 m at the recommended mounting height.

What stands out

• Wide 110° detection angle for comprehensive coverage
• Adjustable time delay from 10 seconds to 30 minutes
• Brightness threshold configurable from 0 to 1000 lux
• Compatible with Gira System 55 cover frames

Technical details

• Series: Gira S3000
• Design line: Gira System 55
• Mounting type: Flush-mounted (Unterputz)
• Colour: Black (RAL 9005)
• Operating voltage: 230 V AC
• Frequency: 50/60 Hz
• Max. resistive load: 2300 W (10 A)
• Max. fluorescent lamp load (uncompensated): 1150 VA (5 A)
• Max. LED load: 400 W
• Time delay setting: approx. 10 s to 30 min
• Brightness threshold setting: approx. 0 to 1000 lux
• Detection range (radius at 1.10 m height): approx. 6 m
• Protection class: IP20
• Material: Thermoplastic
• Operating temperature: -15 °C to +45 °C

Our verdict

A reliable motion detector for automatic lighting control, offering flexible settings and solid load capacity in a sleek black finish.
