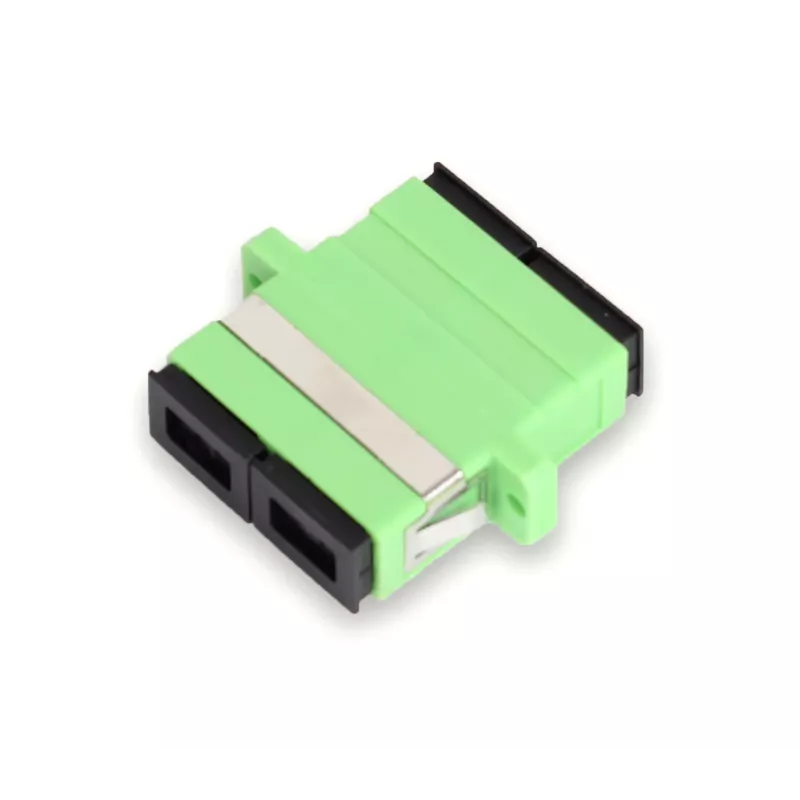

GETFORT SC/APC Duplex Προσαρμογέας οπτικών ινών, Singlemode, Πράσινο, Τοποθέτηση σε πάνελ με φλάντζα

The GETFORT SC/APC Duplex Fibre Optic Adapter is a high-performance coupling solution engineered for single-mode fibre networks, delivering exceptional signal integrity with an insertion loss of ≤ 0.2 dB and return loss ≥ 60 dB. Its duplex configuration allows simultaneous connection of two SC/APC connectors, making it ideal for dense FTTH, LAN, telecommunication, and data centre applications.

Advantages

Precision zirconia ceramic ferrules ensure precise fibre alignment and long-term reliability, while the green ABS housing provides easy identification of APC (angled physical contact) polish. The flanged panel-mount design enables secure installation in patch panels, wall plates, and fibre enclosures. With a durability rating of over 1000 mating cycles and an operating temperature range of -40°C to +85°C, this adapter withstands harsh environments and frequent reconnections.

Suitable for

• FTTH (Fibre to the Home) deployments
• LAN backbone and horizontal cabling
• Telecommunication central offices and street cabinets
• Data centre fibre distribution
• CATV and broadband networks

Key specifications

• Connector type: SC/APC to SC/APC (duplex)
• Fibre mode: Single-mode (OS1/OS2 compatible)
• Insertion loss: ≤ 0.2 dB
• Return loss: ≥ 60 dB
• Ferrule material: Zirconia ceramic
• Housing material: ABS plastic, UL94 V-0 rated
• Mounting: Flanged, panel mount
• Colour: Green
• Operating temperature: -40°C to +85°C
• Durability: > 1000 mating cycles
• Compliance: RoHS, IEC 61754-4
• Wavelength compatibility: 1310 nm and 1550 nm
• Polarization dependent loss: ≤ 0.1 dB

Recommendations

For optimal performance, pair with single-mode SC/APC patch cords and ensure proper cleaning of connector end faces before mating. This adapter is an excellent choice for network installers and system integrators seeking reliable, low-loss connectivity in high-density fibre environments.
