GETFORT GF-FO02-DX 1U 19 inch Patch panel οπτικών ινών 24xSC Duplex με συρτάρια

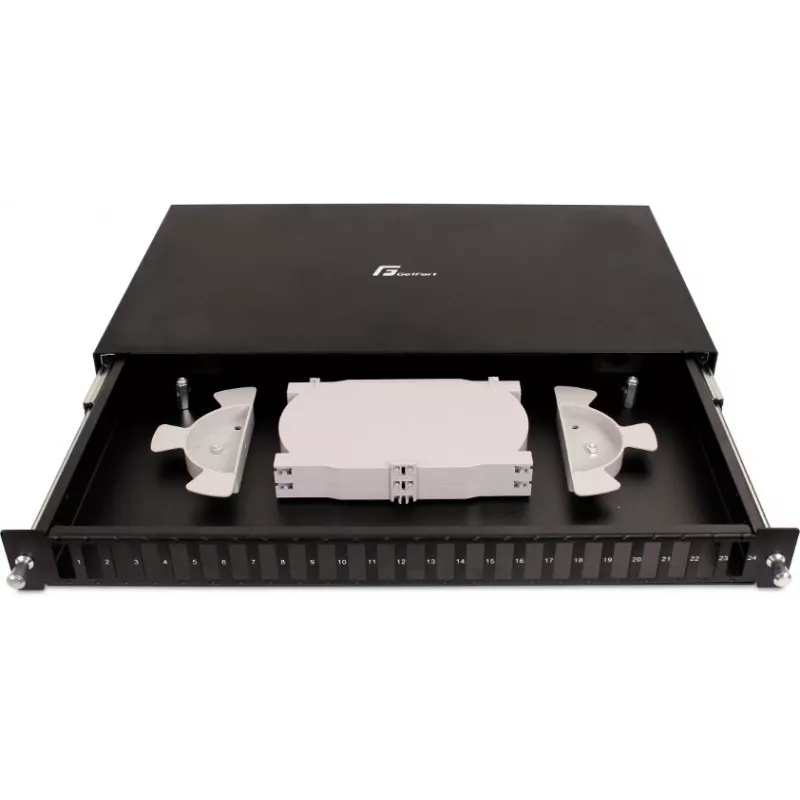

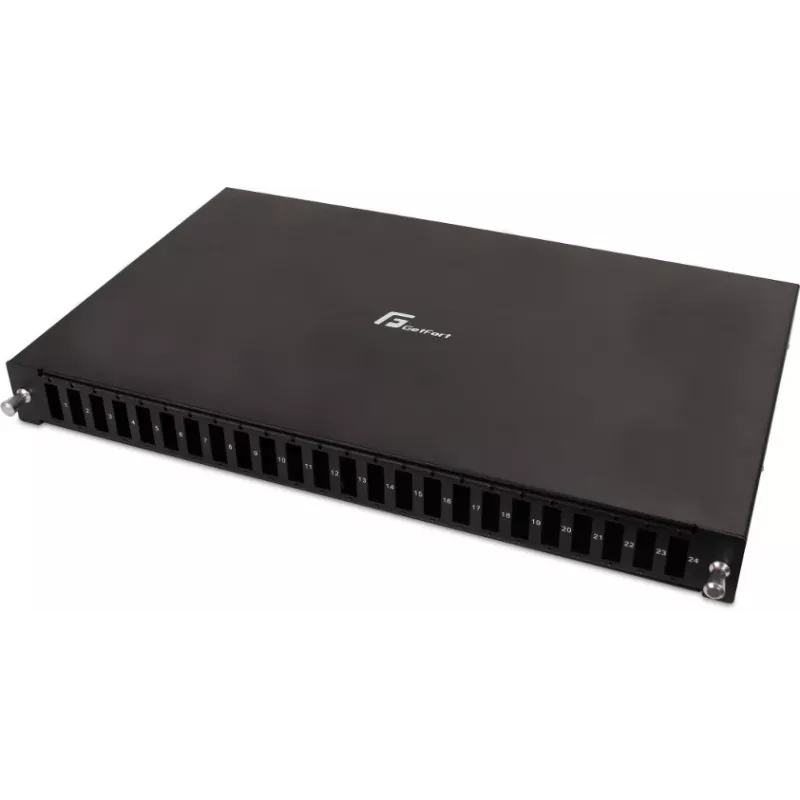

The GETFORT GF-FO02-DX is a high-quality 1U 19-inch fiber optic patch panel designed for professional network infrastructure. It features 24 SC duplex ports with sliding trays, providing easy access for splicing and maintenance. Built with cold-rolled steel and finished in black (RAL 9005), this panel ensures durability and reliable performance in data centers, server rooms, FTTx, and telecommunication networks.

Advantages

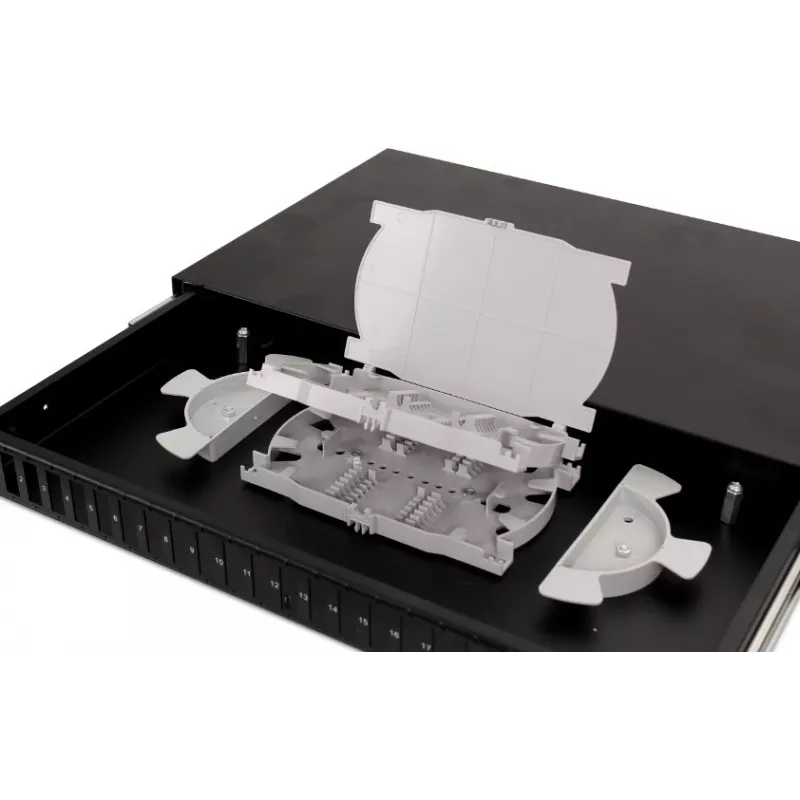

This patch panel offers excellent fiber management with its sliding tray design, allowing convenient access to splice trays without disturbing other connections. The robust construction and IP20 protection make it suitable for demanding environments. It supports both single-mode and multi-mode fibers, offering flexibility for various network applications.

Suitable for

• Data centers and server rooms requiring organized fiber termination
• FTTx and telecommunication network installations
• Network expansions and upgrades with SC duplex connectors

Key specifications

• Rack Unit: 1U, 19-inch width
• Connector Type: SC Duplex, 24 ports (48 fibers)
• Panel Type: Sliding with rails
• Material: Cold-rolled steel, black (RAL 9005)
• Included Splice Trays: 2
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Humidity: 0% to 95% (non-condensing)
• Protection Class: IP20
• Compliance: RoHS, IEC 60297-3-100

Recommendations

For optimal performance, use with SC/UPC adapters and single-mode or multi-mode fiber cables. Ensure proper cable management and grounding as per local regulations.
