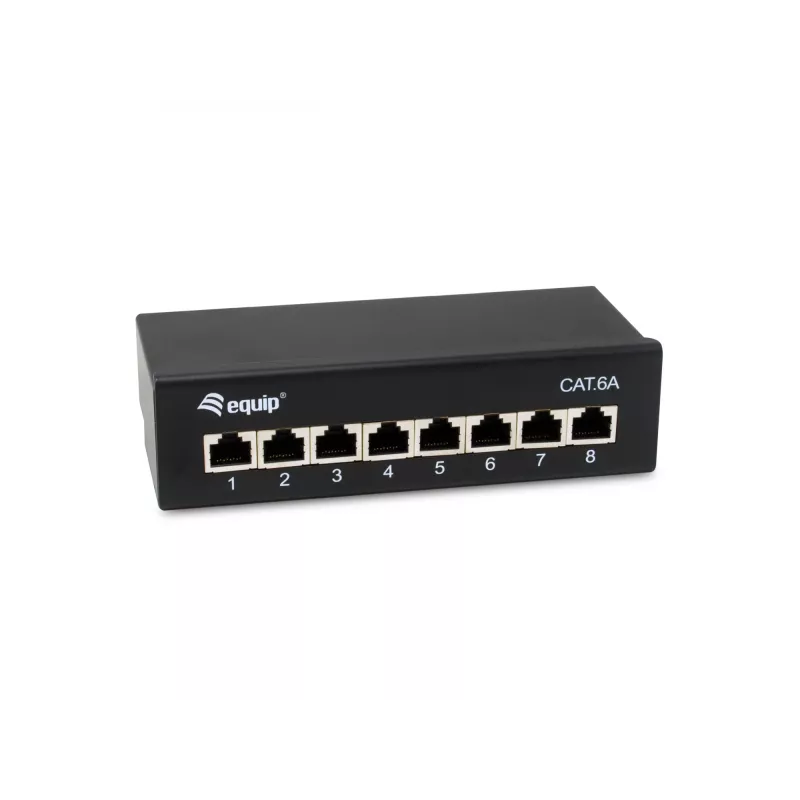

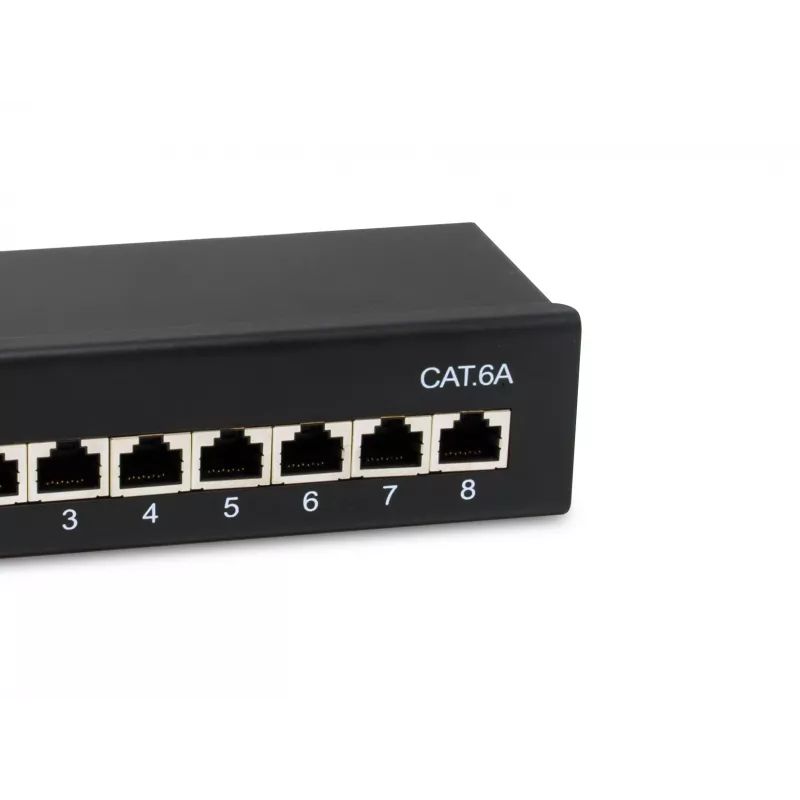

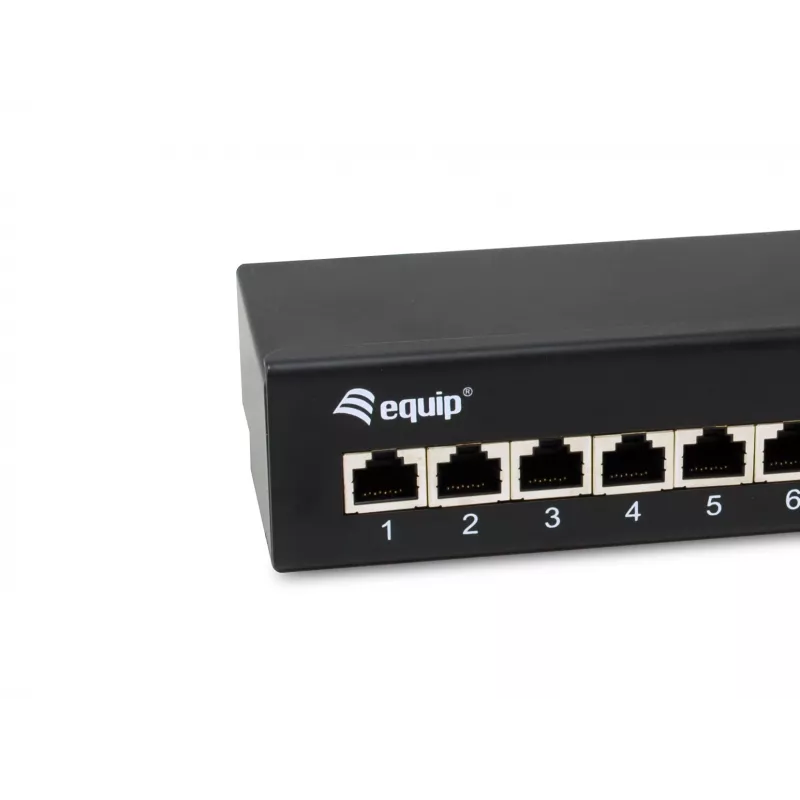

Equip 326621 Patch Panel

The Equip 326621 patch panel provides centralized RJ45 termination for structured cabling supporting 10GBase-T and 10 Gigabit Ethernet networks. Constructed from durable metal with a black finish, the panel is designed for rack or cabinet mounting in small and medium data closets. The unit supports a maximum data transfer rate of 10000 Mbit/s and comes packaged in a box for transport and storage. Compact dimensions (160.3 mm × 109.3 mm × 44.3 mm) and a lightweight build (0.59 kg) make the Equip 326621 suitable where space-efficient 10G connectivity and reliable physical protection of terminations are required.

Advantages

The metal housing delivers mechanical durability and shielding for the internal connections while the black finish provides a neutral appearance in standard racks. Compliance with CE and RoHS standards indicates conformity with applicable safety, health and environmental requirements. With eight ports and support for 10GBase-T, the Equip 326621 enables high-speed copper-based connections without the need to upgrade to fiber in many installations. Its compact size and boxed packaging simplify storage and handling prior to installation.

Suitable for

• Rack or cabinet front-panel termination for 10 Gigabit Ethernet copper runs
• Small office and branch office structured cabling installations
• Network consolidation points and patching in IDF/MDF closets
• Environments requiring CE and RoHS-compliant components

Key specifications

• Brand: EQUIP
• Model / MPN: 326621
• EAN: 4015867237557
• Supported technology: 10GBase-T
• Interface speed: 10 Gigabit Ethernet (max 10000 Mbit/s)
• Ports quantity: 8
• Product colour: Black
• Material: Metal
• Dimensions (W × H × D): 160.3 mm × 109.3 mm × 44.3 mm
• Weight: 0.59 kg
• Standards: CE, RoHS

How to use

Mount the Equip 326621 patch panel in the designated rack or cabinet space using appropriate fasteners. Terminate each copper cable to the corresponding port following the required wiring scheme (e.g., T568A or T568B) and verify terminations with a cable tester capable of 10GBase-T validation. Label each port as needed for easy identification. After termination and testing, connect patch cords between the panel ports and network devices or switches. Follow standard electrostatic discharge (ESD) precautions when handling the panel and connectors.

Recommendations

For reliable 10G performance, use certified Cat6A or higher cabling and maintain recommended cable length limits for 10GBase-T. Keep patch cord runs tidy and avoid sharp bends near terminations. Regularly inspect and retest connections as part of planned maintenance to ensure continued compliance with network performance requirements.
