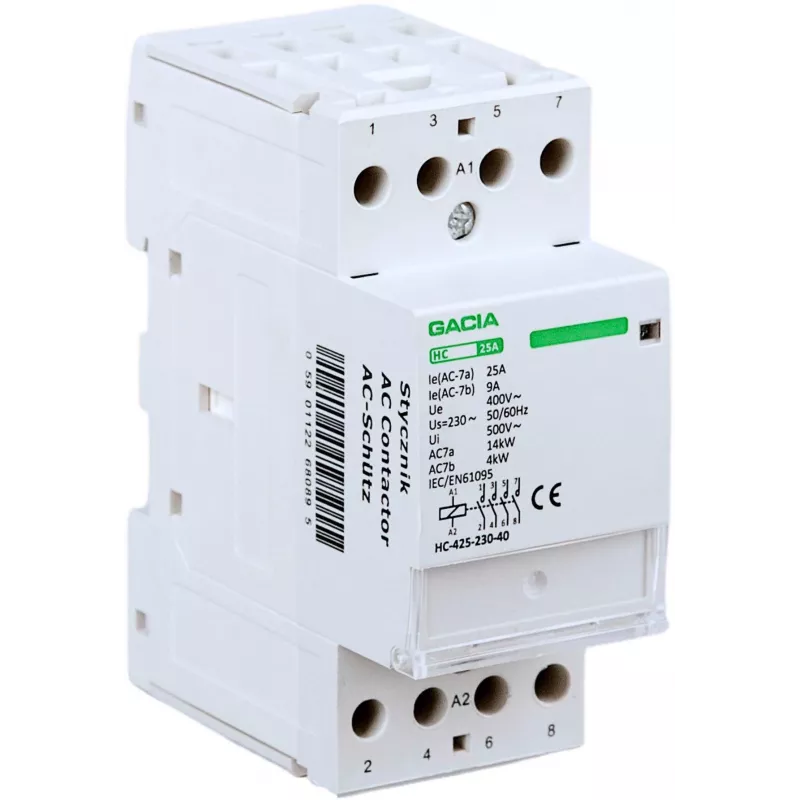

GACIA HC 4P/25A 4NO 230V Ρελέ ισχύος μονάδας

The GACIA HC 4P/25A 4NO 230V is a high-quality modular contactor designed for reliable switching of resistive and inductive loads in industrial and commercial electrical installations. With 4 poles and a rated operational current of 25 A (AC-1), this contactor ensures efficient control of lighting, heating, and motor circuits. Its compact 4-module design (72 mm) fits standard DIN rail enclosures, saving valuable panel space.

Advantages

Robust construction with a mechanical life of 1,000,000 cycles and electrical life of 100,000 cycles guarantees long-term durability. The 230 V AC coil with 50/60 Hz frequency ensures compatibility with standard mains supplies. IP20 protection on terminals and IP40 on the front provides safety against dust and accidental contact. Easy installation with screw terminals accepting up to 10 mm² conductors.

Suitable for

• Lighting control systems
• Heating and ventilation equipment
• Motor starting and switching
• Industrial automation panels
• Commercial building management

Key specifications

• Product Type: Modular Contactor
• Number of Poles: 4P
• Contact Configuration: 4 NO (Normally Open)
• Rated Operational Current (AC-1): 25 A
• Coil Control Voltage: 230 V AC
• Coil Frequency: 50/60 Hz
• Mounting Type: DIN Rail (TH35)
• Module Width: 4 Modules (72 mm)
• Rated Insulation Voltage (Ui): 500 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Electrical Life: 100,000 cycles
• Mechanical Life: 1,000,000 cycles
• Operating Temperature Range: -5°C to +40°C
• Storage Temperature Range: -25°C to +70°C
• Degree of Protection: IP20 (Terminals), IP40 (Front)
• Terminal Capacity (Main Circuit): 1-10 mm² (flexible/rigid)
• Terminal Capacity (Control Circuit): 1-4 mm² (flexible/rigid)
• Standard Compliance: IEC/EN 61095
• Coil Power Consumption: 4.5 VA

Recommendations

For optimal performance, ensure the coil voltage matches your control system (230 V AC). Use appropriate overcurrent protection devices. Suitable for use in distribution boards and control cabinets.
