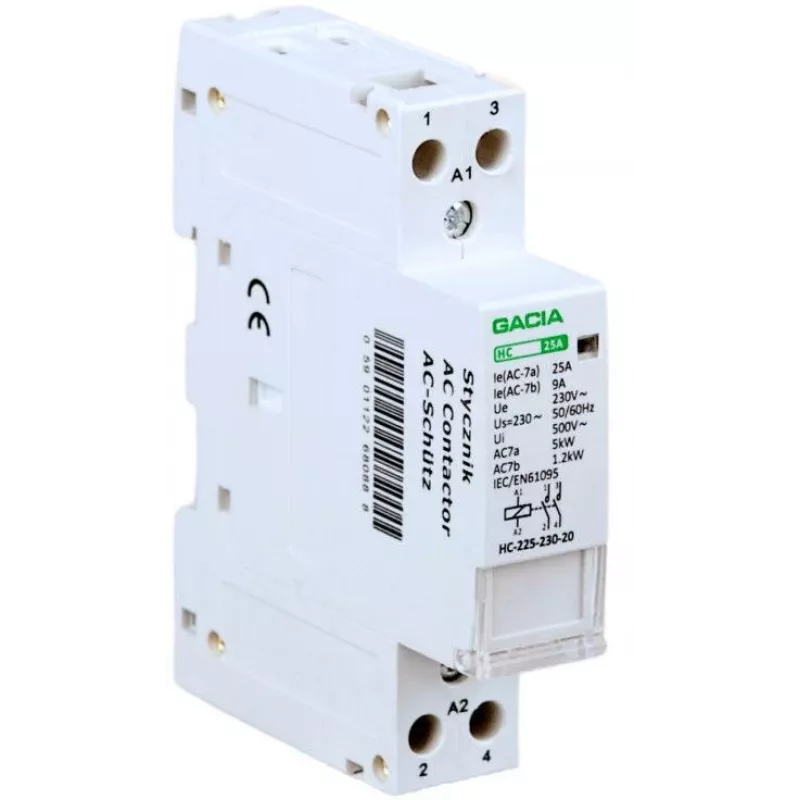

GACIA HC 2P/25A 2NO 230V Ρελέ ισχύος μονάδας 2-πολικό 25A 230V AC

The GACIA HC 2P/25A 2NO 230V is a high-quality modular contactor designed for reliable switching of electrical loads in residential and commercial installations. With 2 poles and a rated operational current of 25 A (AC-1), this contactor is ideal for controlling lighting, heating, and motor circuits. The coil operates at 230 V AC, making it compatible with standard mains voltage. Its compact 2-module width allows for easy DIN rail mounting in distribution boards.

Advantages

This contactor offers robust performance with a mechanical life of 1,000,000 cycles and an electrical life of 100,000 cycles (AC-1). The IP20 terminal protection and IP40 front protection ensure safe operation in typical indoor environments. Compliance with IEC/EN 61095 guarantees reliability and safety.

Suitable for

• Lighting control systems
• Heating and ventilation circuits
• Motor switching applications
• Automation and building management

Key specifications

• Number of Poles: 2
• Contact Configuration: 2 Normally Open (2NO)
• Rated Operational Current (AC-1): 25 A
• Coil Voltage: 230 V AC, 50/60 Hz
• Rated Insulation Voltage (Ui): 500 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Mounting: DIN Rail
• Modular Width: 2 Modules (36 mm)
• Terminal Capacity: 1-10 mm² (solid/stranded)
• Ambient Temperature: -5°C to +40°C
• Storage Temperature: -25°C to +70°C
• Degree of Protection: IP20 (terminals), IP40 (front)

Recommendations

For optimal performance, ensure the coil voltage matches the supply. Use appropriate cable cross-sections and follow local electrical codes. This contactor is suitable for AC-1 resistive loads; for inductive loads, derating may apply.
